Window parts

Home Owner from 60118

May 20, 2020 8:31 pm

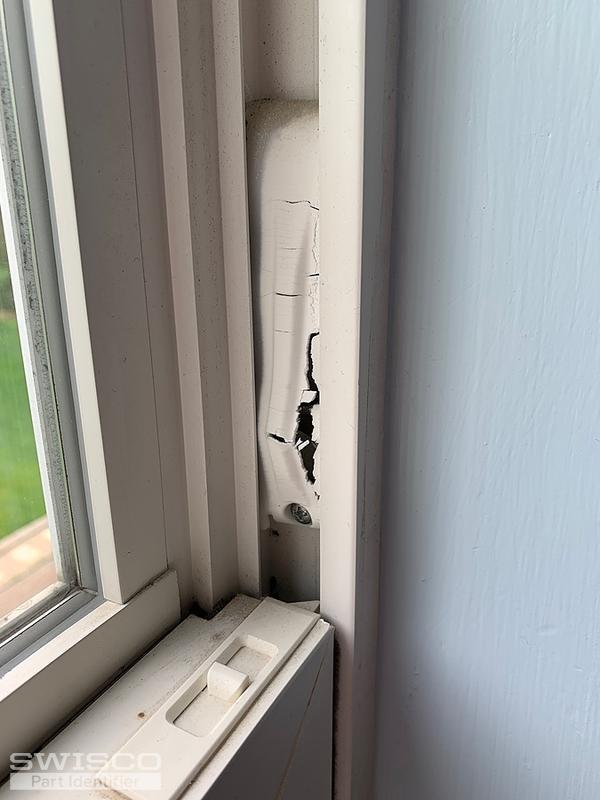

I'm not sure on brand. The windows were installed in 2003. The inside of this part has silver coils and they are attached with a screw.

2 user uploaded images

6 Replies

Tom from SWISCO

May 22, 2020 12:51 pm

Looks like you need a coil balance. We can help, but I'll need you to remove the sash from the window frame and show me a clear picture of the pivot shoe. This is a square or rectangular piece of plastic to which the coil springs attach.

Home Owner from 60118

May 22, 2020 2:04 pm

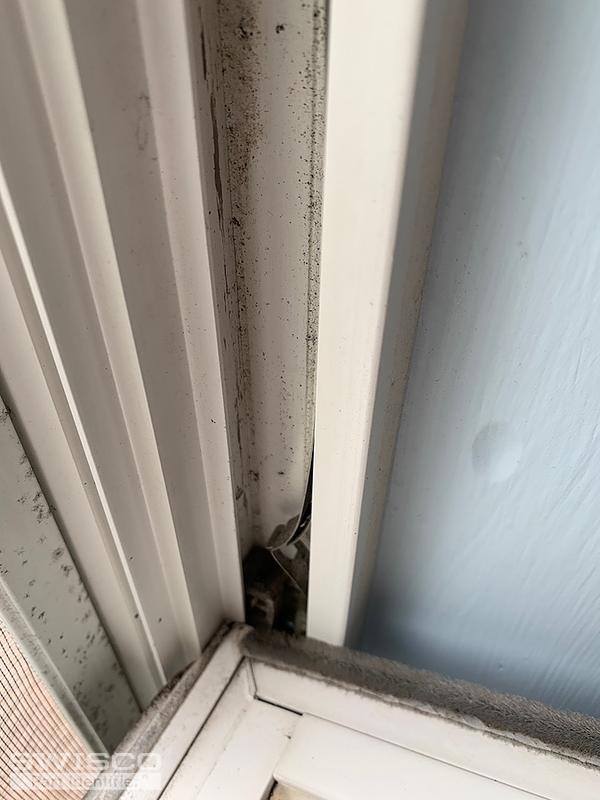

Please let me know if I took pictures of the correct parts. Thank you

3 user uploaded images

Tom from SWISCO

May 22, 2020 2:07 pm

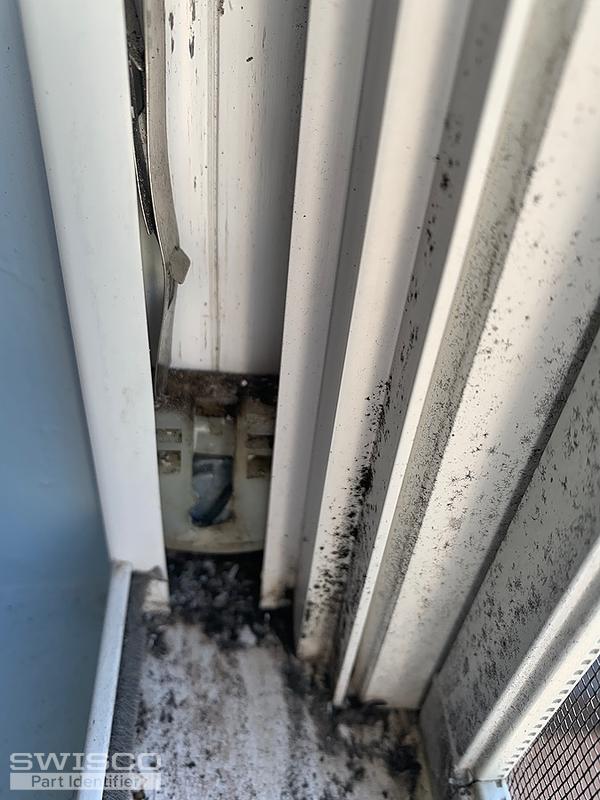

I can see the pivot shoe in your third photo, but it is too obscured for me to identify. You need to remove the sash from the frame before you take your picture so that we can see as much of it as possible.

Home Owner from 60118

May 26, 2020 9:50 am

Here is the base without the window.

1 user uploaded image

Tom from SWISCO

May 26, 2020 2:02 pm

Thanks! That looks like our 15-199, which means you likely have our 3/8" thick Series 165. You should check your thickness to ensure that's the same. This spring is compatible with the 15-205 double support.
