Cracked window parts

Quick Learner from Pittsburgh

Jul 31, 2020 2:16 pm

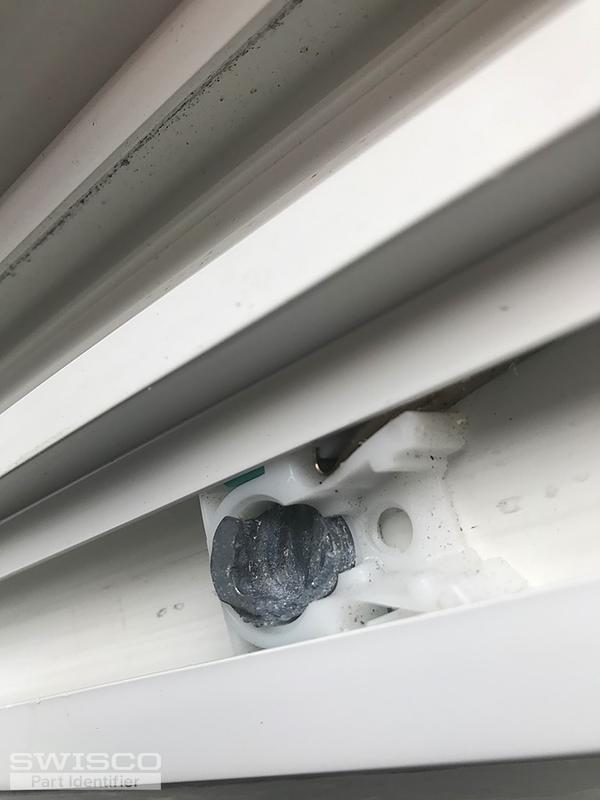

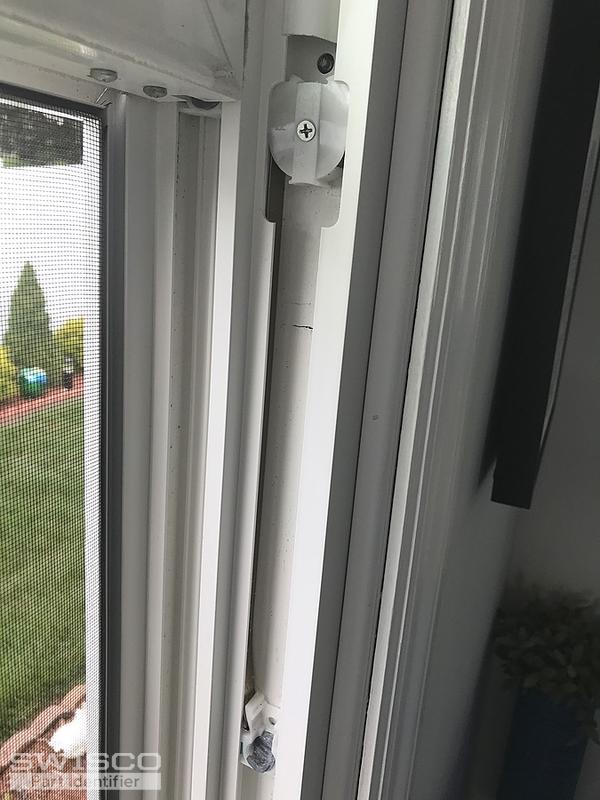

As you can see by my photos
I have four windows and three of them do not work correctly either the top part is off or the bottom part is cracked
I can't seem to find the exact part numbers I also photo the information from tje top of the windows
I hope that helps you

5 user uploaded images

6 Replies

Tom from SWISCO

Aug 4, 2020 1:11 pm

It looks like you just need a new pivot shoe. See our 15-215 for my recommendation. I think this may be just what you're looking for.

We also sell the Series 140 coil balance, if you wanted a whole new assembly.

Home Owner from Pittsburgh

Aug 4, 2020 2:19 pm

Hi Tom
I think I want to get the series 140 coil balance single spring for the windows should I get the 6 8 or 10 lb ???

Tom from SWISCO

Aug 6, 2020 8:45 am

That's not something I can answer. You will need to refer to the stamp printed on your old assembly to confirm.

Home Owner from Pittsburgh

Aug 11, 2020 1:57 pm

Hi Tom

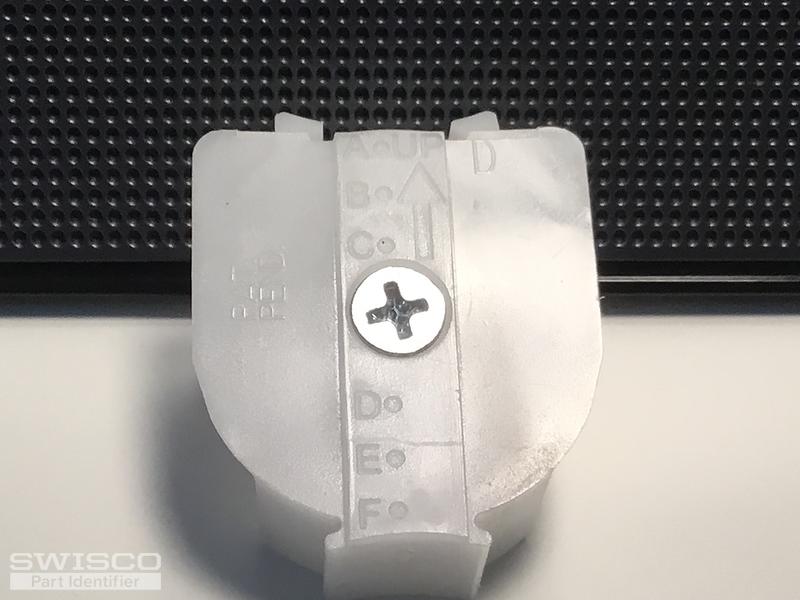

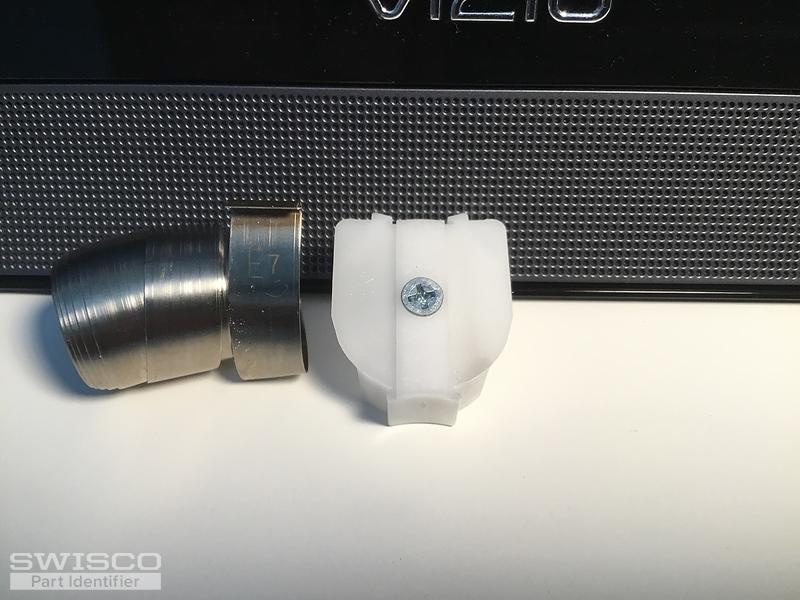

I am sending two pictures of my old parts hopefully that will help you to know what size I need
6 8 10 lbs
Thanks for your help
Bill

2 user uploaded images

Tom from SWISCO

Aug 11, 2020 2:11 pm

These pictures don't really tell me anything new, Bill. If there is no stamp on the old balance that explicitly tells you how much weight they carry, I will need you to tell me two pieces of information:

The exact weight of the sash these balances support, down to the ounce.
The number of springs used to support it on each side.

With that information, I can recommend a weight rating.
