Window side spring

Quick Learner from West Lafayatte, IN

May 22, 2024 11:58 am

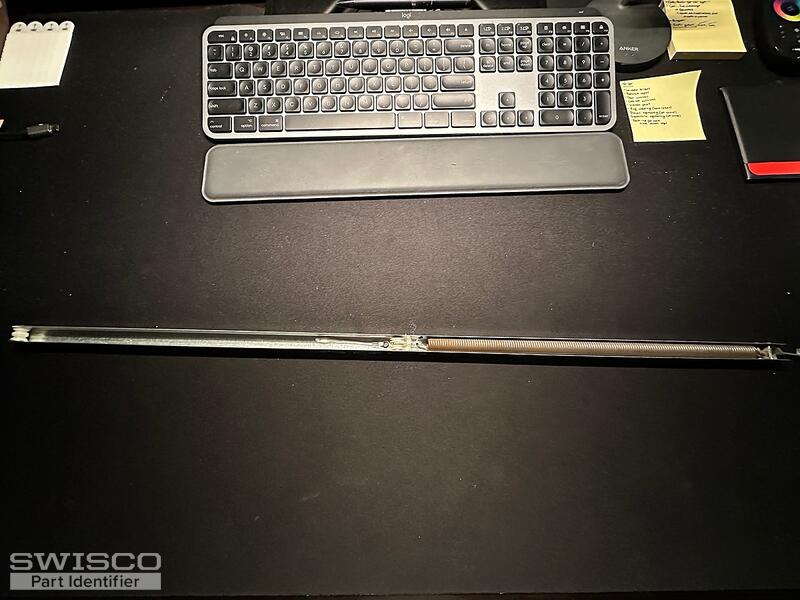

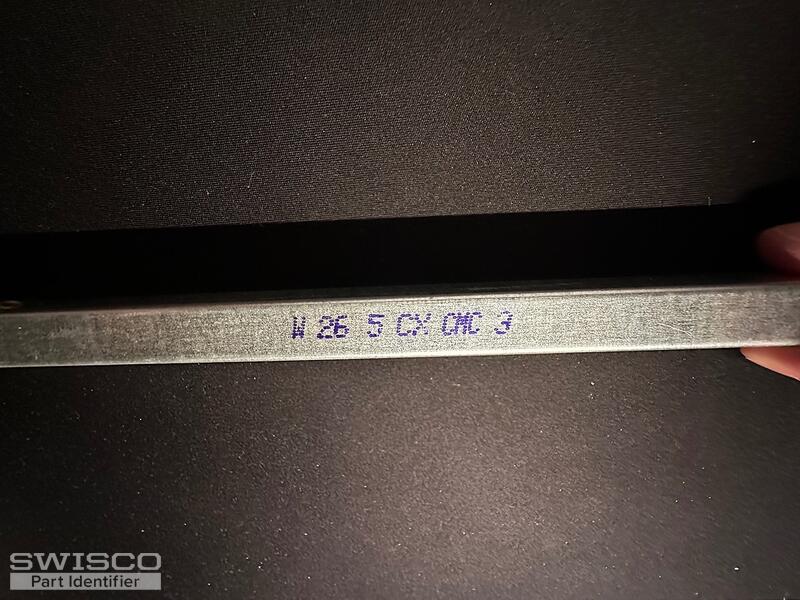

I believe this is the part that hold the window up or down when moved. The string snapped so we need a new one. The ID number is included in one of the pictures (IMG_1019). Thank you!

5 user uploaded images

1 Replies

+ Add a Comment

Jasmine

Jasmine from SWISCO

May 22, 2024 3:22 pm

SWISCO

EXPERT

Thanks for posting! Your channel balance appears to be the S795-27 Balance assembled with a screw clip on top and a pivot shoe hook on the bottom. You'll need to select the 26-5 option.

This balance is compatible with the 15-046 Pivot Shoe as well as the 26-040 Pivot Bar. If you decide to replace these along with the balances, be sure to review and compare the dimensions to confirm that they'll be a fit.

Alternate image for 15-046

Alternate image for 15-046

Alternate image for 26-040

Alternate image for 26-040

+ Add a Comment
