Windows coil balance parts

Start a new Discussion

Home Owner from Featerville, pa

Apr 1, 2024 6:47 pm

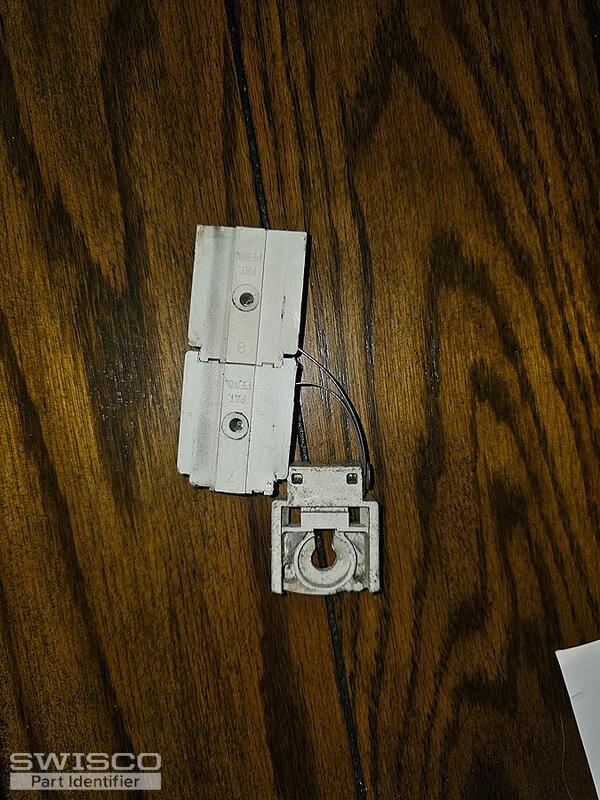

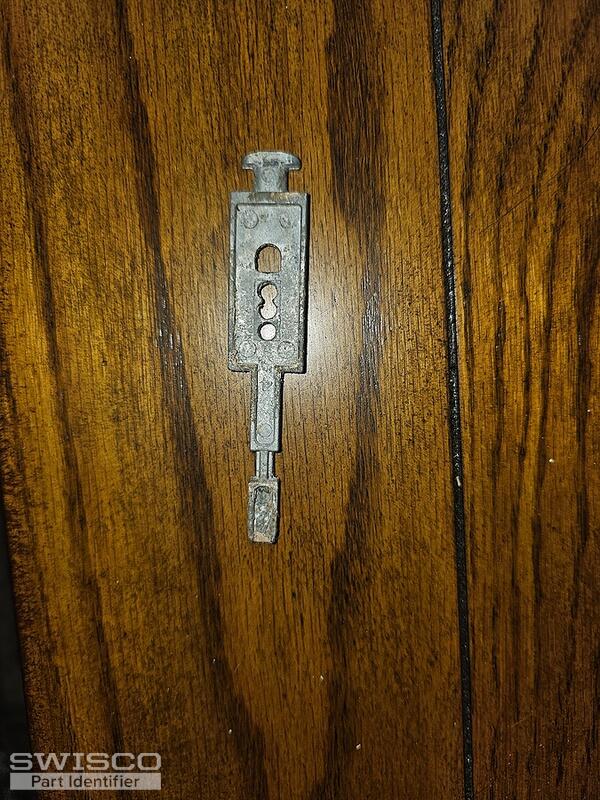

Can you tell me if you have the parts shown in the attached photos

2 user uploaded images

6 Replies

Emily from SWISCO

Apr 3, 2024 10:04 am

Thanks for reaching out to us. We'd be happy to help with this. We'll just need more information to narrow down some options. Can you show us the front of the pivot shoe? It'd also be helpful if you could write out the thickness and width.

Home Owner from Featerville, pa

Apr 4, 2024 7:53 am

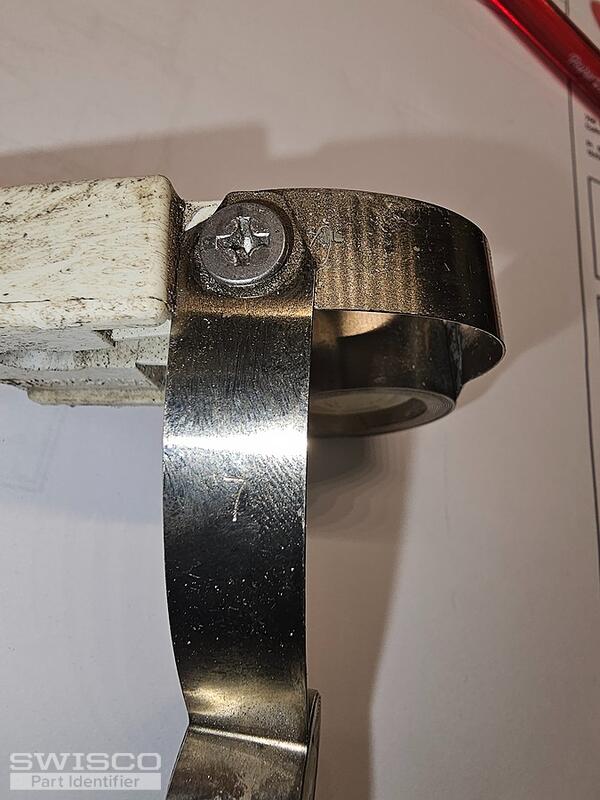

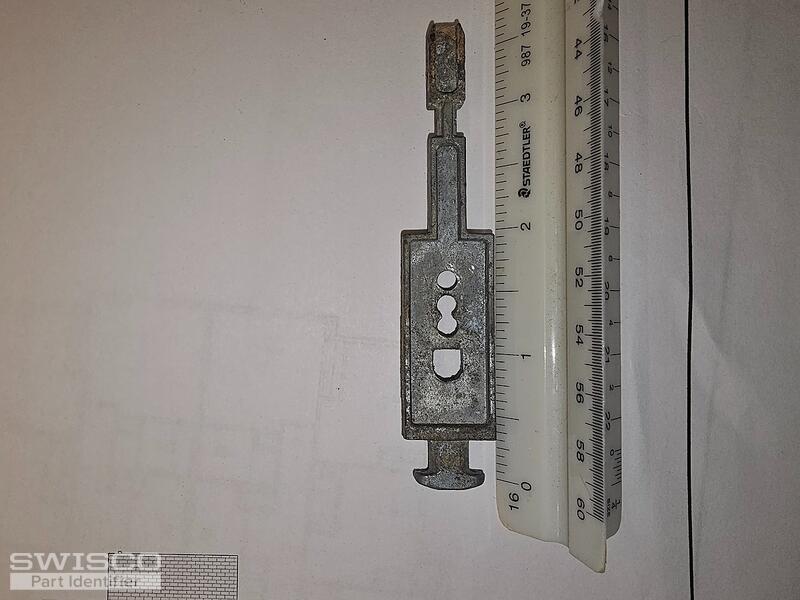

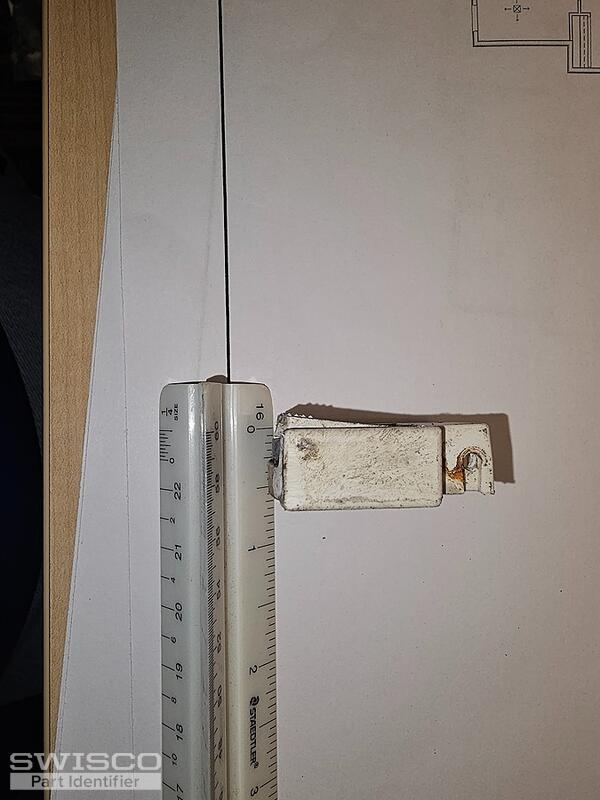

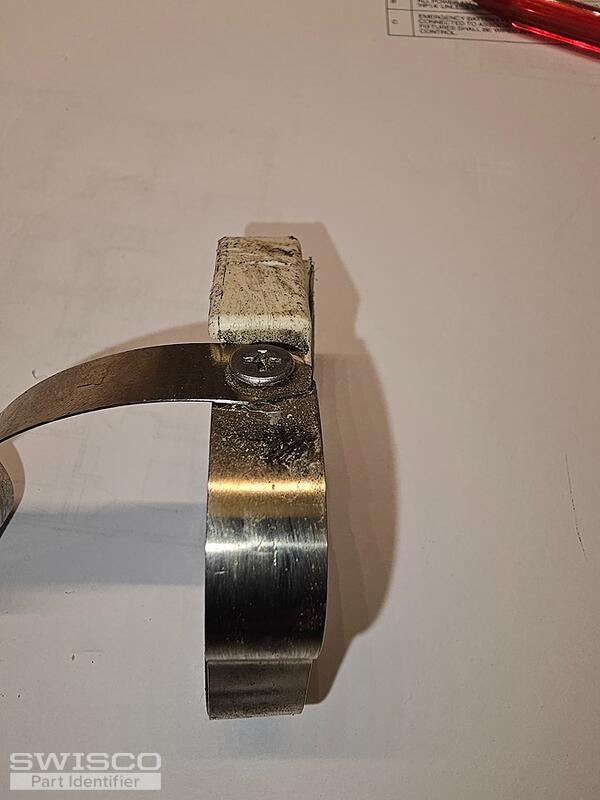

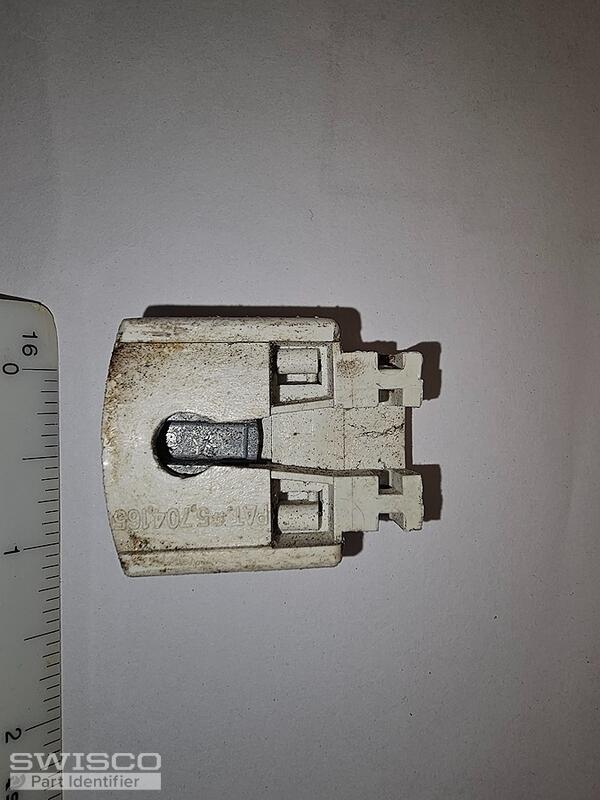

Attached please find pictures of the shoe, as requested. The shoe is 1/2" thick and between 1-3/8" and 1-1/4" wide (say 1-5/16"). The pivot bar is 3-5/8" long. there are two balance coils. The lower one is marked "4" and the upper one is marked "7"

5 user uploaded images

Paul from SWISCO

Apr 4, 2024 1:37 pm

I believe you have a Slocomb window. They changed the tip of the pivot bar, the 26-129, but it will fit the new pivot shoe which is the 15-177. If the springs are fine, you can reuse them or purchase the S152-4 and S152-7 coil springs.

Home Owner from Featerville, pa

Apr 4, 2024 2:17 pm

Thanks Paul and Emily for your help!

Paul from SWISCO

Apr 4, 2024 3:06 pm

We're happy to help. Good luck with the repair!
