Windwo balance parts

Quick Learner from USA

Apr 15, 2019 10:23 am

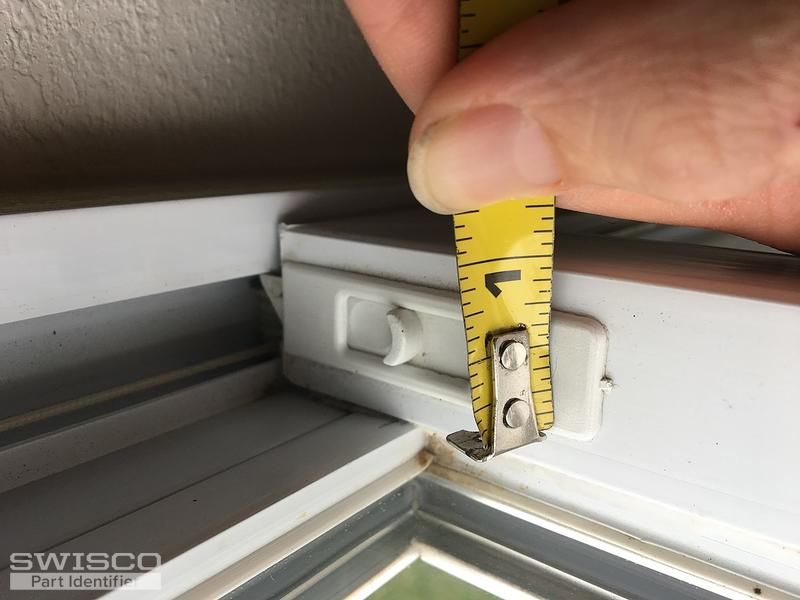

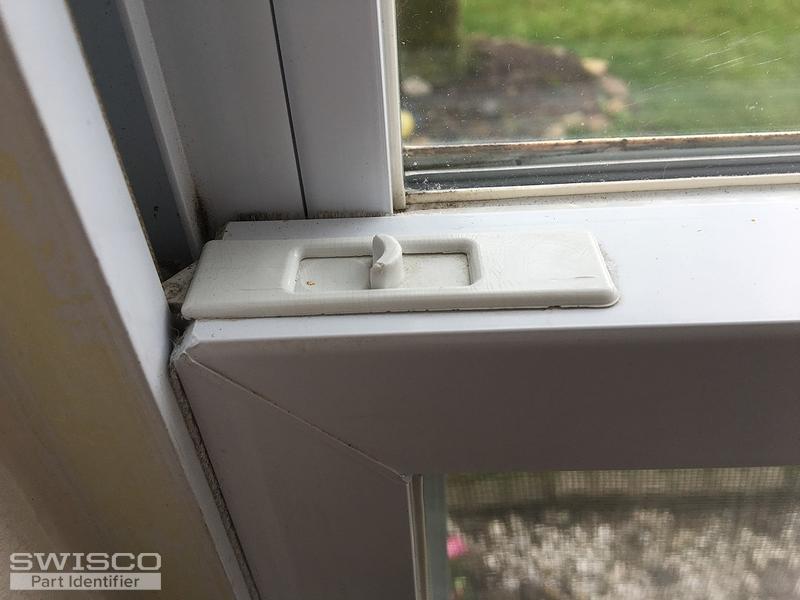

Please help me identify replacement parts for window balance and window tilt hardware. See attached photos. The balance is 27" long. The window tilt hardware is approximately 2 3/8" long by 5/8" wide.

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 15, 2019 11:03 am

Take a look at our 26-393 latch, compare dimensions and see if this will work for you.

The balance appears to be our Series 765, you will need to match up the stamp number off theirs to figure out what you need to order.

If there is anything else we can do for you, please let us know.

Quick Learner from USA

Apr 15, 2019 6:58 pm

Are you confident that the correct shoe is 15-046. Is there anything I need to do or check to verify? What is the 26-040 pivot bar that you put in the parts list? Where does this part go?

Bob from SWISCO

Apr 16, 2019 7:45 am

To determine if the 15-046 is the right pivot shoe, compare the width and thickness of your old shoe, preferably an undamaged version, to the dimensions listed for the 15-046. The pivot bar is what connects the pivot shoe to the window sash. One end rests in the cam inside the pivot shoe, the other within the bottom of the window sash. This assembly is what allows the window sash to rotate. Compare the 26-040 to an undamaged pivot bar, if available, to confirm it will work for you.
