Would repair if I could otherwise I will have replace window

A home owner from Buffalo,NY says:

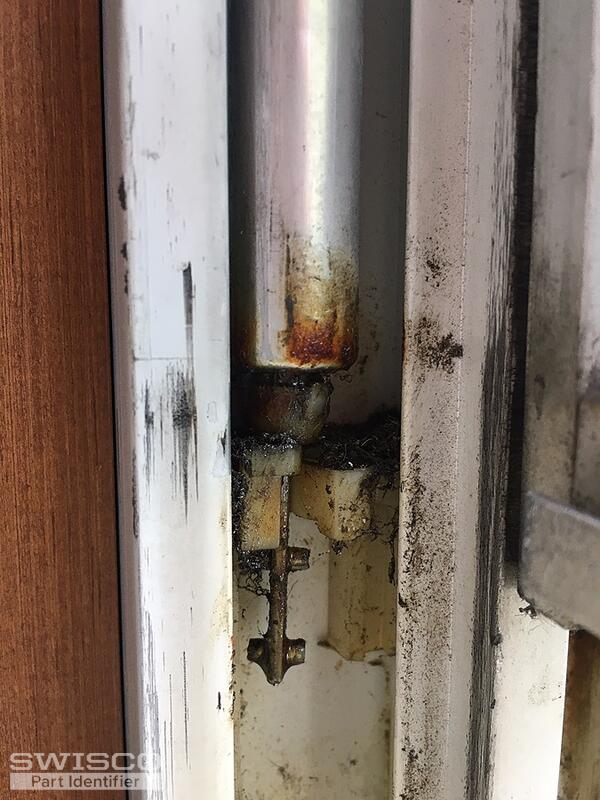

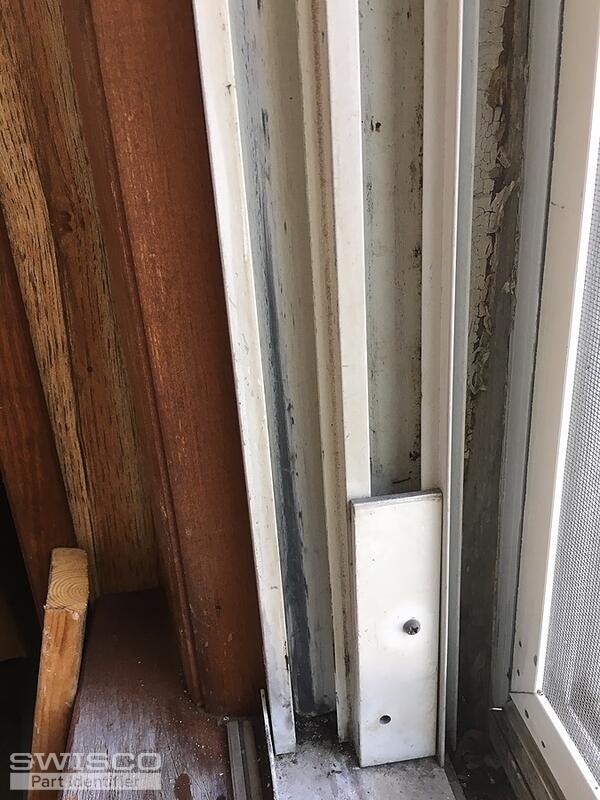

Have a tilt window with broken spiral balance on right side. Various connecting pieces broken both sides and on the window itself. I can identify the pictures if needed. I had 10 pictures. Hoping to sent the rest in 2nd message.
Thumbnail of the uploaded file named IMG_7343.jpeg
Thumbnail of the uploaded file named IMG_7404.jpeg
Thumbnail of the uploaded file named IMG_7405.jpeg
Thumbnail of the uploaded file named IMG_7406.jpeg
Thumbnail of the uploaded file named IMG_7407.jpeg
A home owner from Buffalo,NY says:
This is the right side and bottom of lower sash.

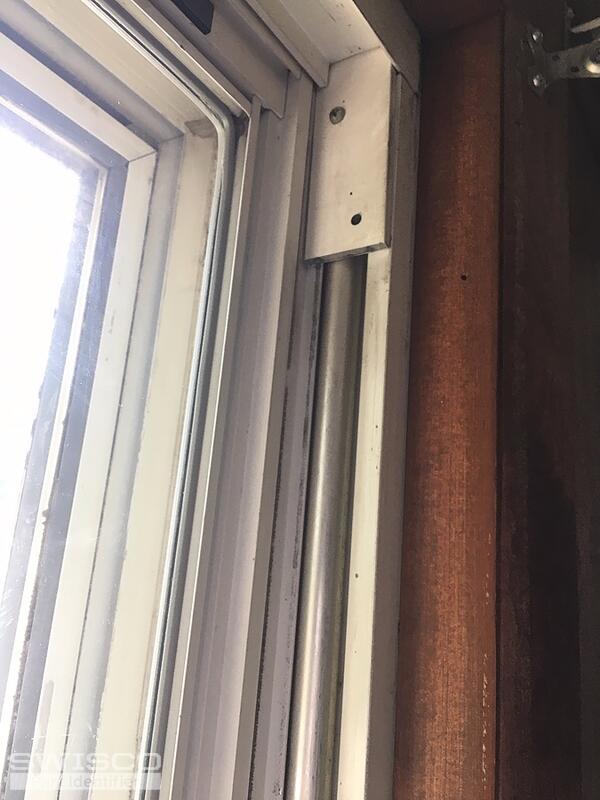

Thumbnail of the uploaded file named IMG_7400.jpeg

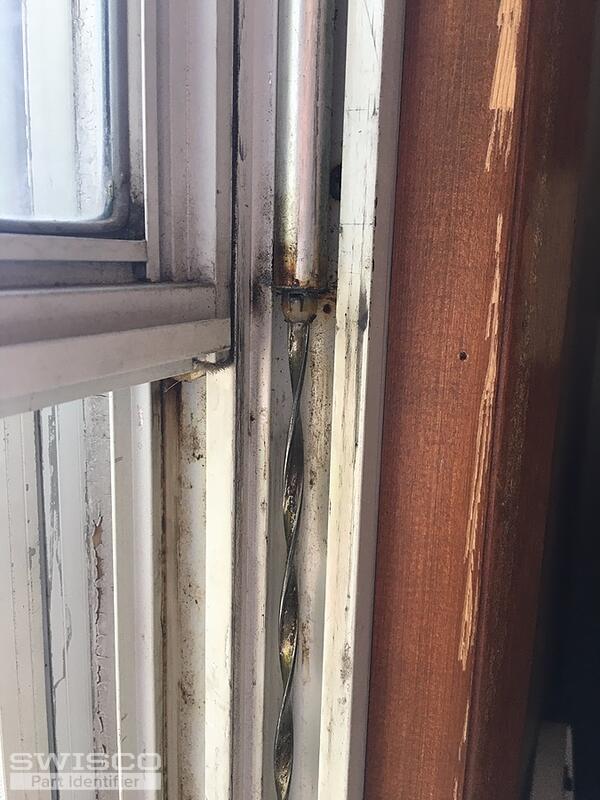

Thumbnail of the uploaded file named IMG_7401.jpeg

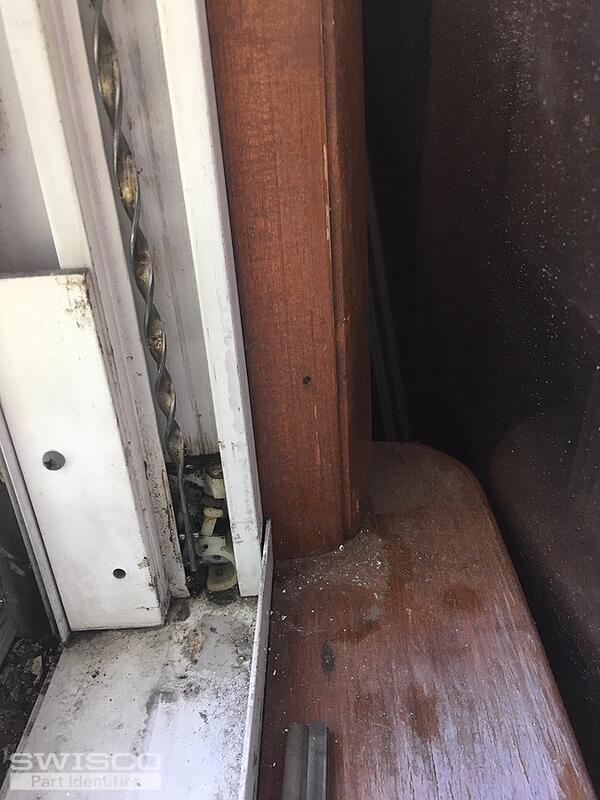

Thumbnail of the uploaded file named IMG_7403.jpeg

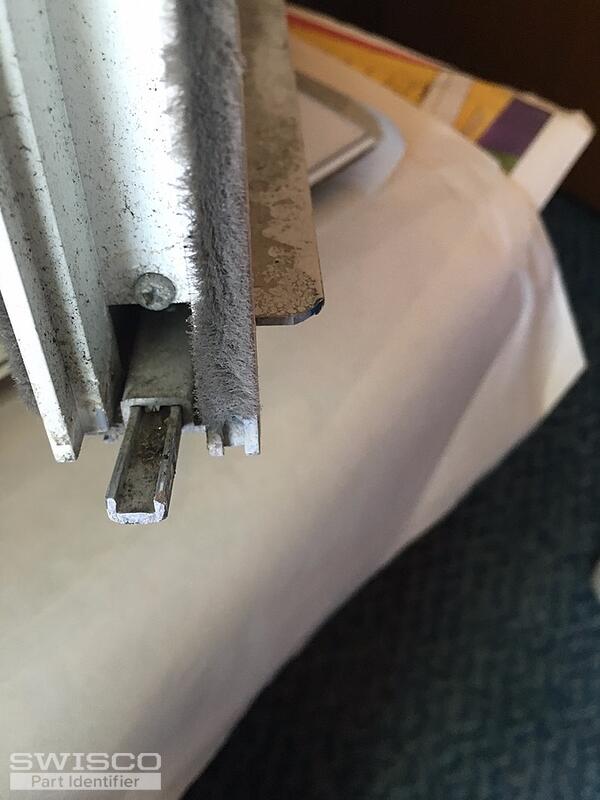

Thumbnail of the uploaded file named IMG_7410.jpeg

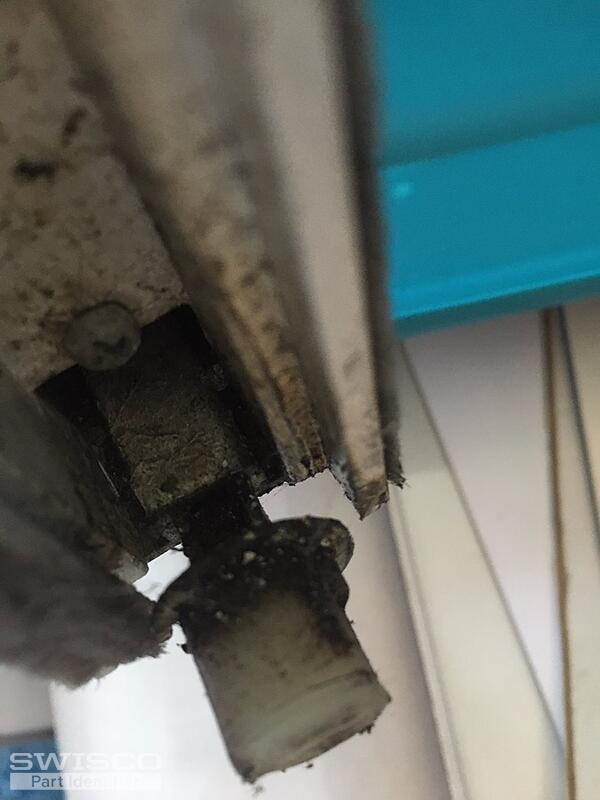

Thumbnail of the uploaded file named IMG_7409.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hello!

You only showed broken pivot shoes, so please compare the dimensions of our 15-046 to an undamaged pivot shoe to see if this matches what you need. The balance system will be our Series 600

A home owner from Buffalo,NY says:

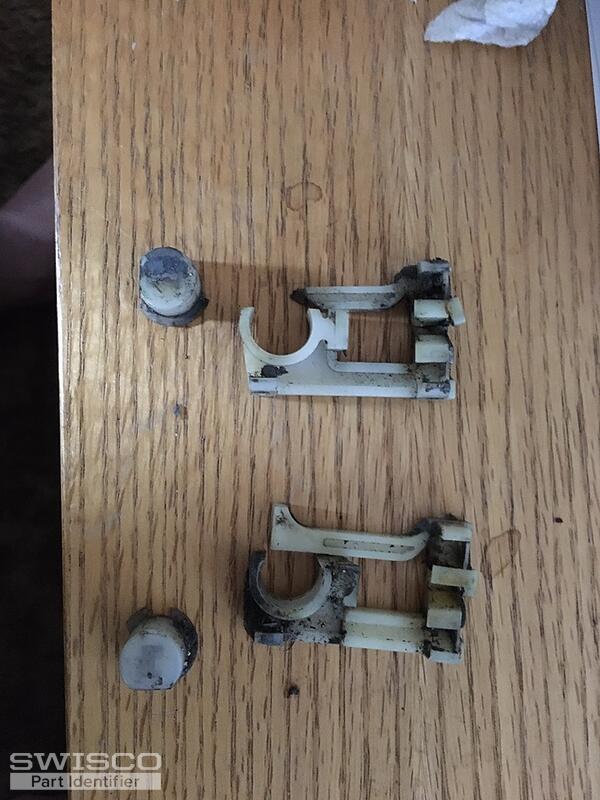

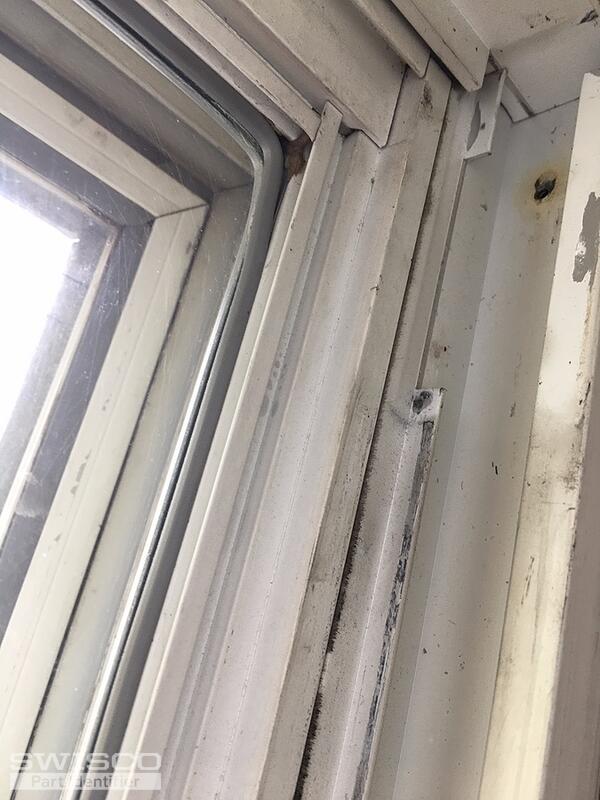

Thanks for your very helpful info. Now that I've had time to get to this I think I know what to order. The only question is the pivot shoe dimensions. Since they are all broken it was hard to measure. I think the 15-046 matches all dimensions except mine might be 9/16 deep. I'm thinking better a little smaller than too big too fit in the slot. The tubes are 25" and the sash is 8 lb. I will attach more pictures.

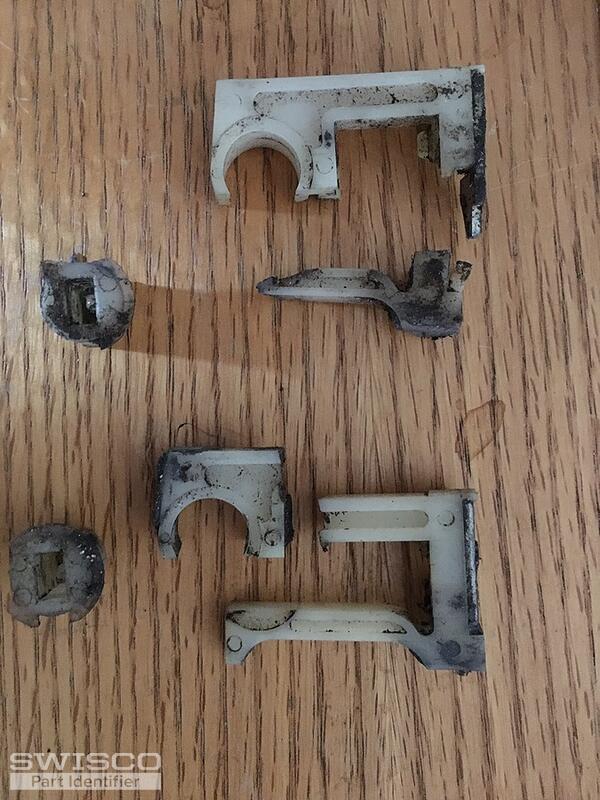

Thumbnail of the uploaded file named IMG_7517.JPG
Thumbnail of the uploaded file named IMG_7518.JPG

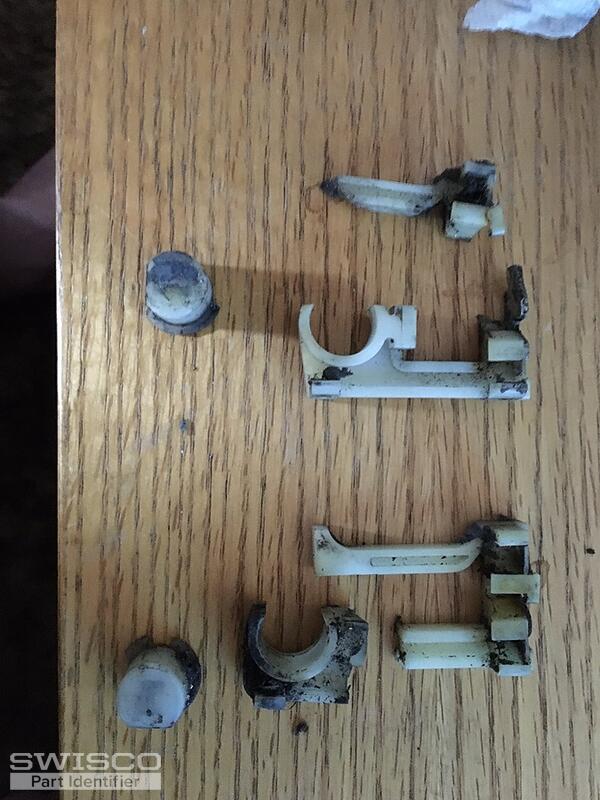

Thumbnail of the uploaded file named IMG_7519.JPG

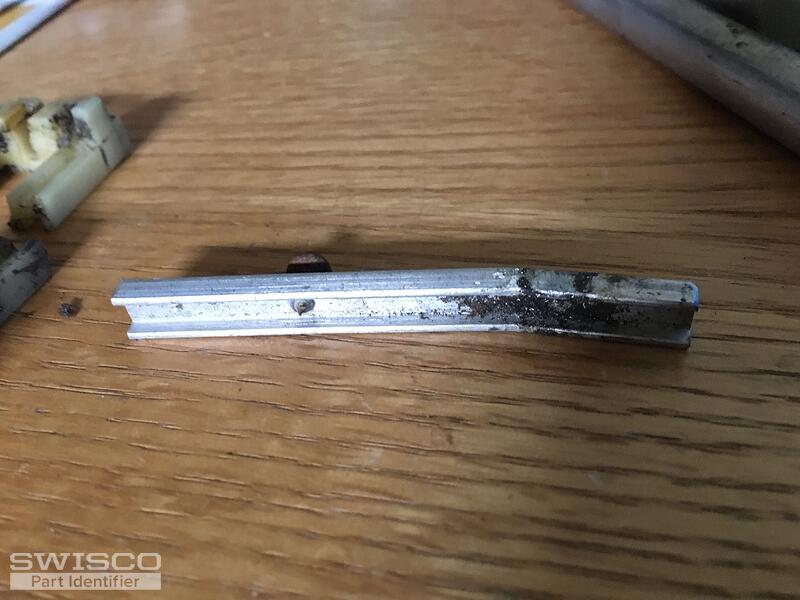

Thumbnail of the uploaded file named IMG_7520.JPG
Thumbnail of the uploaded file named IMG_7524.JPG
Profile picture of Paul
Paul from SWISCO responded:

I wouldn't go any thicker on the pivot shoe, the 15-046 is fine for your window. The pivot bar is our 26-040 and you'll need our S600-25 with a red tip option for a 8 pound sash. Our 75-006 charging tool would also be very helpful with charging the balance and attaching the spiral to the pivot shoe. Take a look at these items along with the helpful videos listed on this page and see what you think.

A home owner from Buffalo,NY says:
Ok that confirms what I thought. Will place my order now and look forward to finishing this! Thanks for your help.
Profile picture of Paul
Paul from SWISCO responded:

You're very welcome. Thank you for your order and good luck with your repair!
