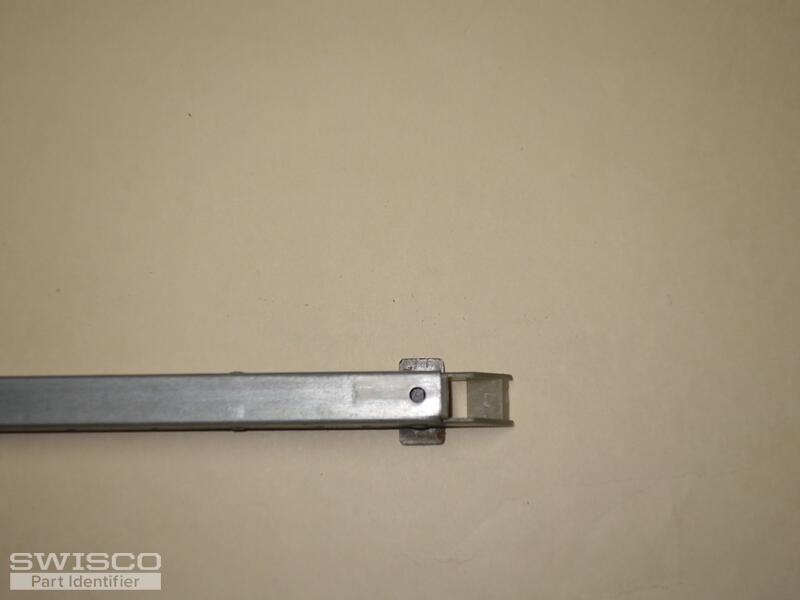

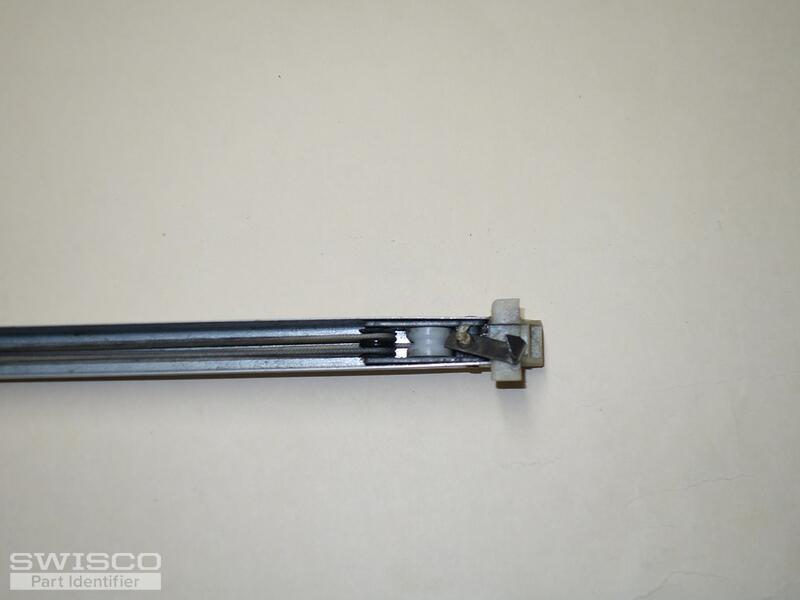

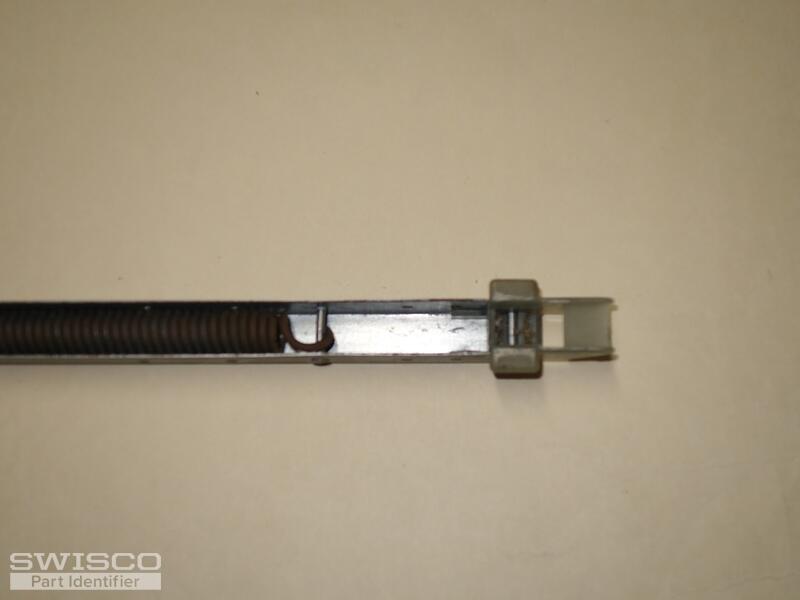

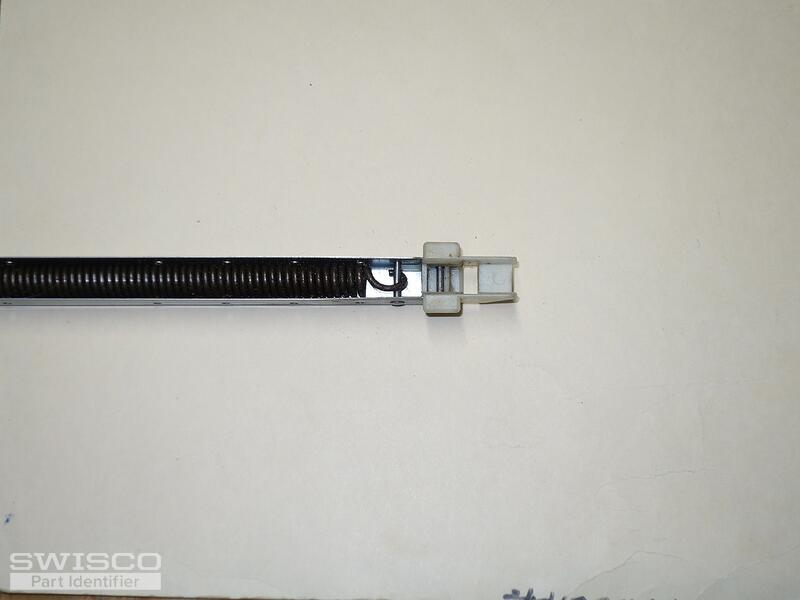

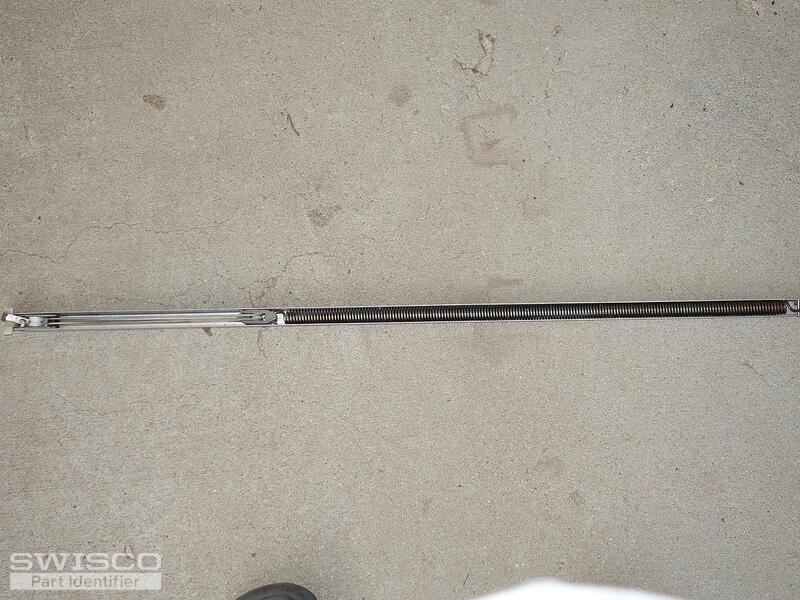

I have two (2) balances that are in need of replacement. The attached photos are of the first. It is 1/2" wide and 28" long (metal to metal). The sash weighs 35 lbs. I am in need of 4 of these.
Thank you,
Bill
balance #1 replcement
Handy Person from Aztec, NM
Oct 9, 2022 4:04 pm
5 user uploaded images
4 Replies
Handy Person from Aztec, NM
Oct 9, 2022 4:09 pm

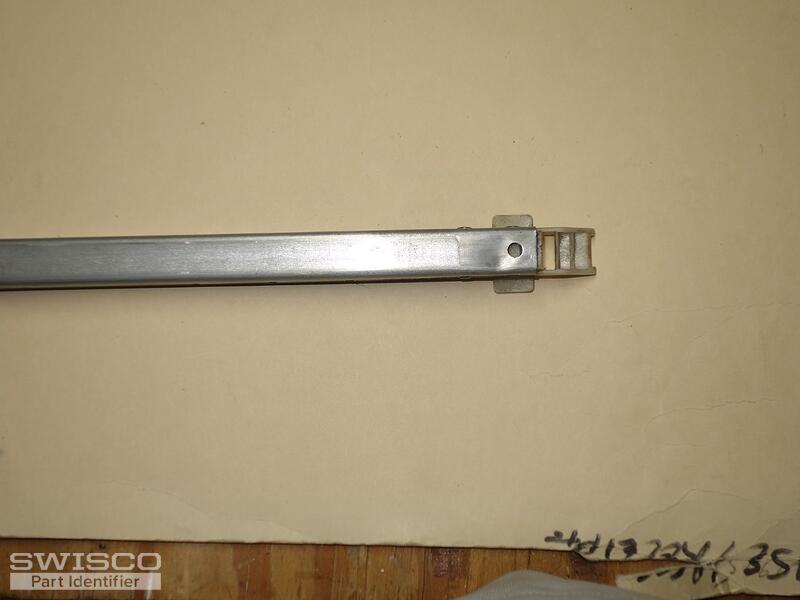

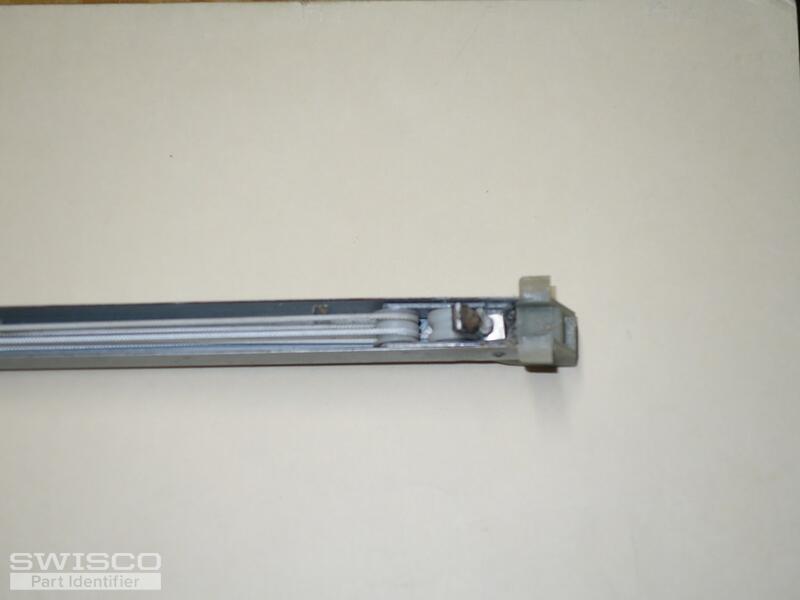

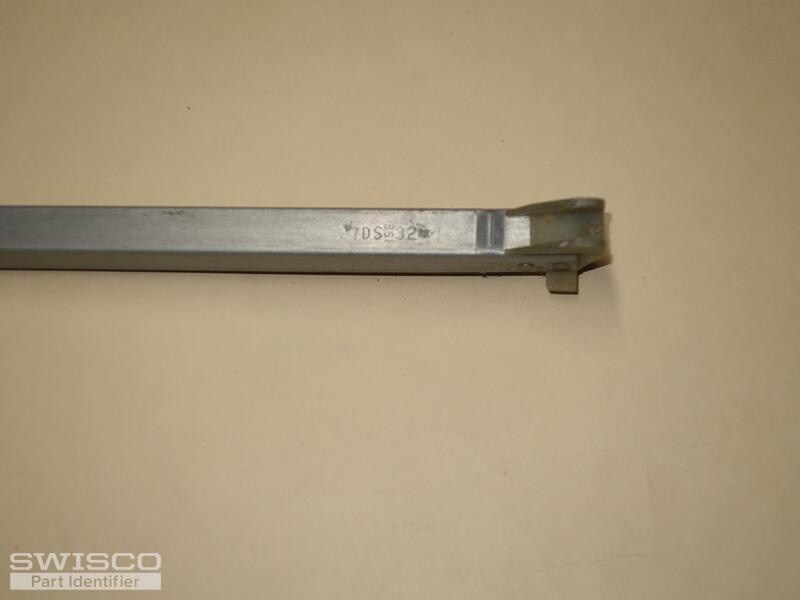

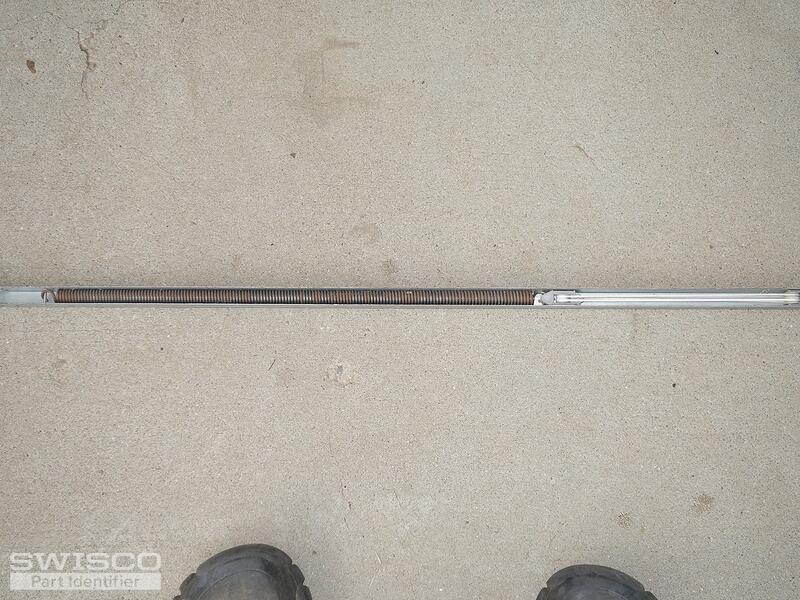

This is the second of two of my balance needs. This one is 1/2" wide and 28" long. The sash weighs 25lbs, I need 6 of these. I also need 4 upper clips
Bill
5 user uploaded images
Handy Person from Aztec, NM
Oct 9, 2022 4:12 pm

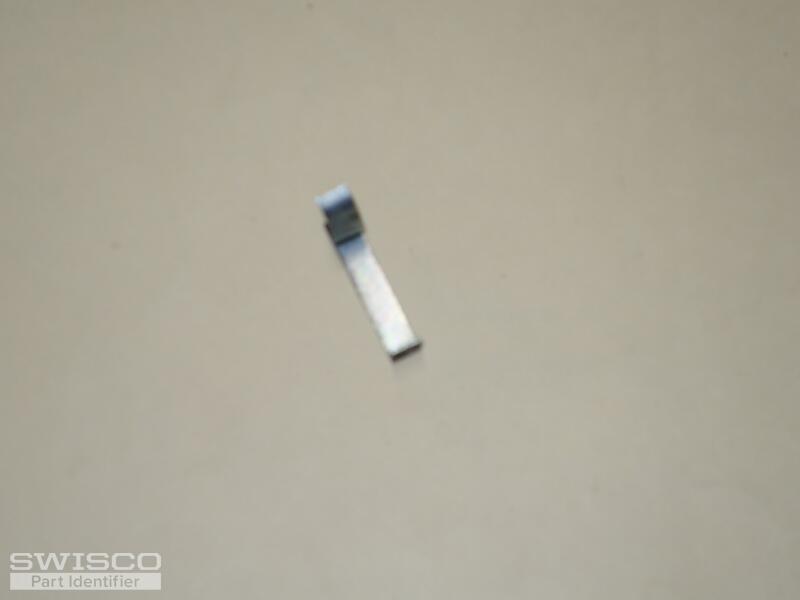

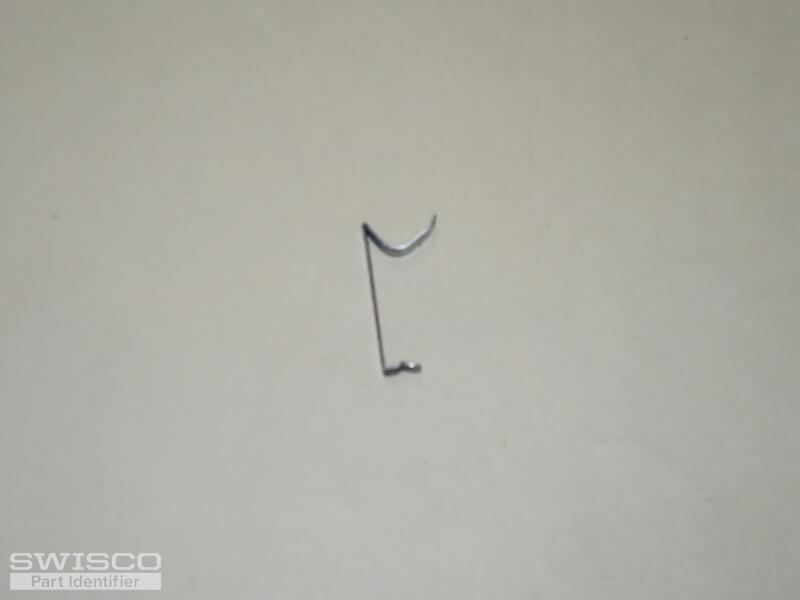

Along with the balances, I need 4 upper clips. the clip is 1 3/16" long.
Bill
2 user uploaded images
Casey from SWISCO
Oct 12, 2022 2:02 pm
Hello,
With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

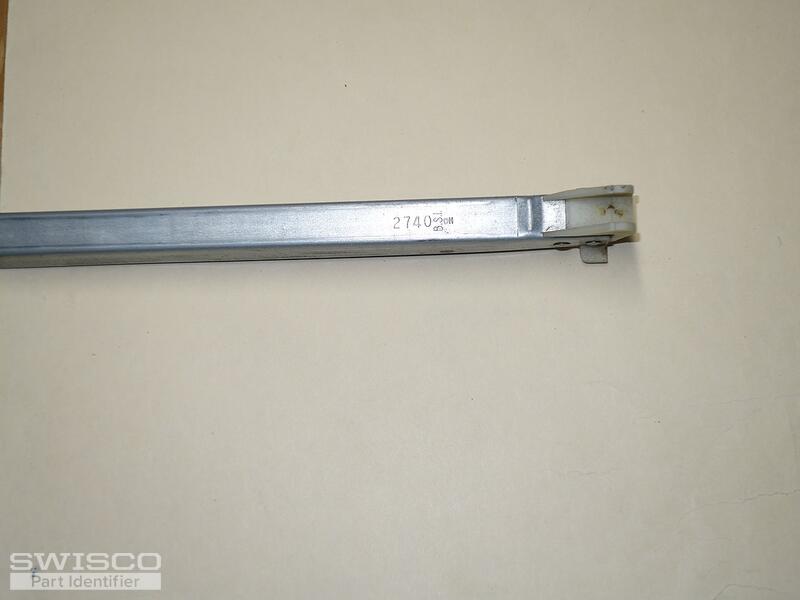

You'll need 2765 spring strength options for your replacement balances that support a 35-pounds sash. The balances that support a 25-pound sash will require 2740 strength options.
As for your take-out clips, see the 16-002. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
