casement windows hardware

Quick Learner from Englishtown, New Jersey

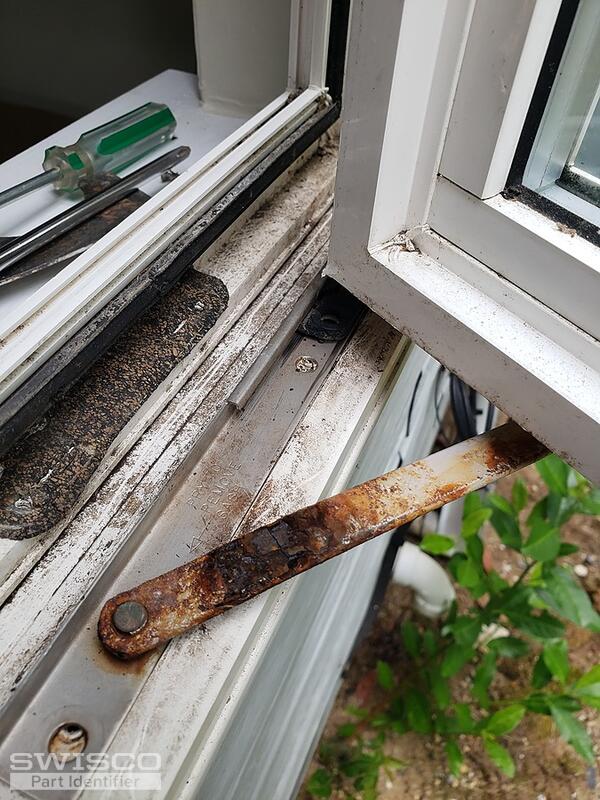

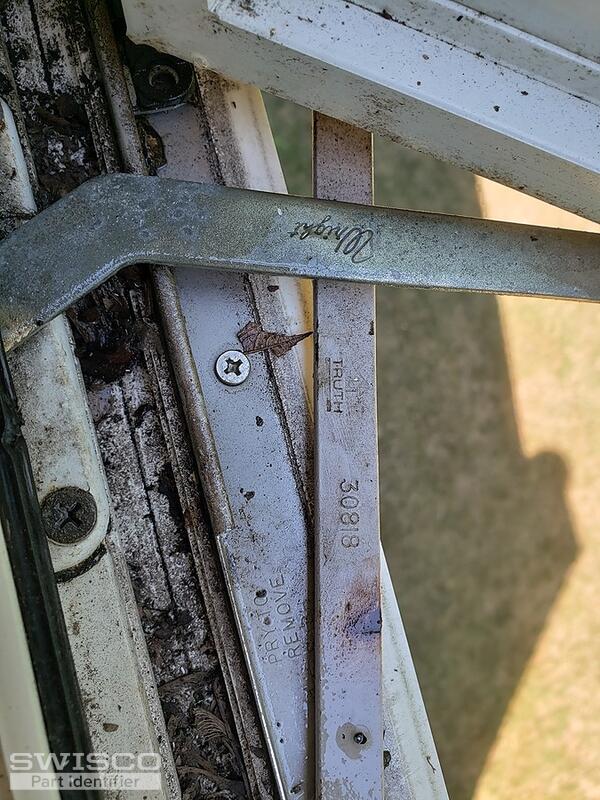

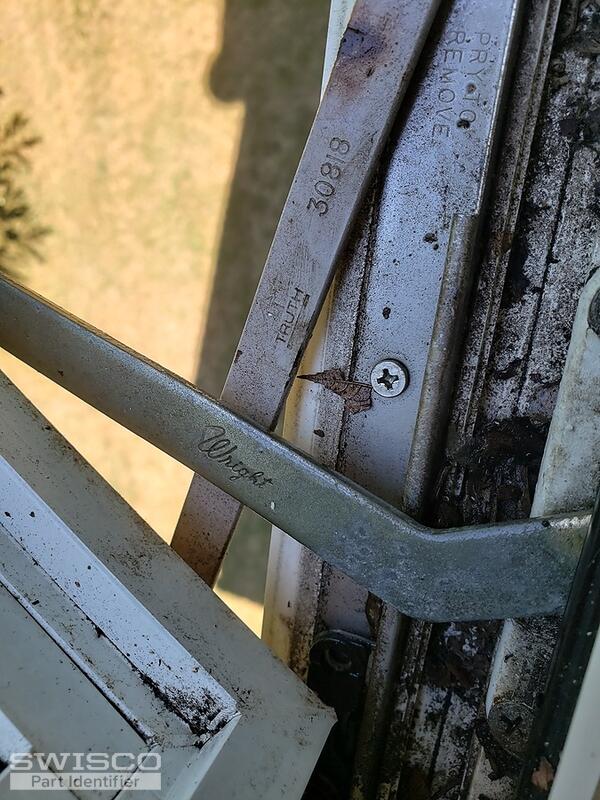

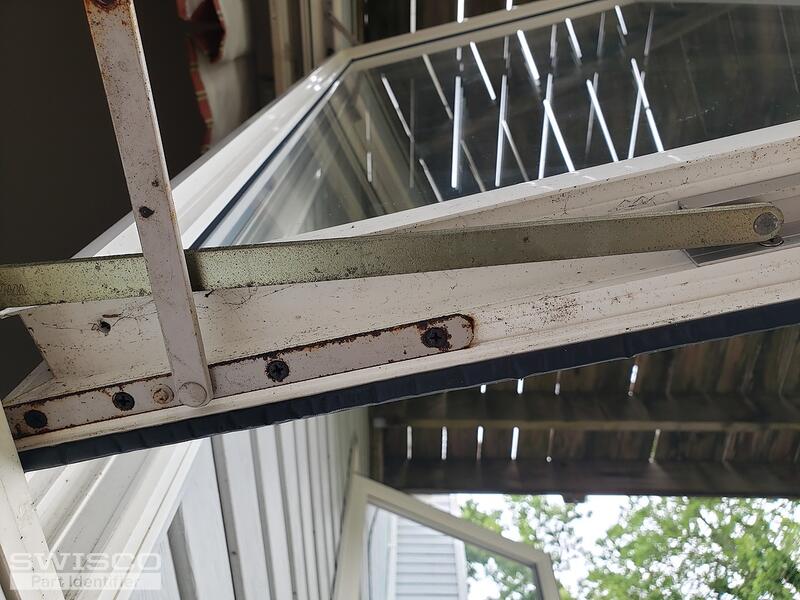

my windows are 25 year old. Most are in good shape, but 6-8 of them need replacement hardware. My operators are 39-013 and 39-014. They are in good shape. I want to replace all hardware on the bottom part of the window, but not the top. I believe that the right hinges are 10". My window size is 25" x 50".

Is that all I need.

And how to remove the hinges if the screws are very rusted and not moving even when applying penetrating silicon?

Am I right to drill old screws out and placing new brackets/hinges in the same old position but by drilling new holes in between the original holes?

4 user uploaded images
3 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I agree, it looks like you need new hinges. I believe our 36-048 should work fine but you will need to replace the top and bottom at the same time to ensure a symmetrical operation. The video below will go into more information in regards to installation.

Quick Learner from Englishtown, New Jersey
Tom, thank you.
