channel balance assistance to identify

Hello,

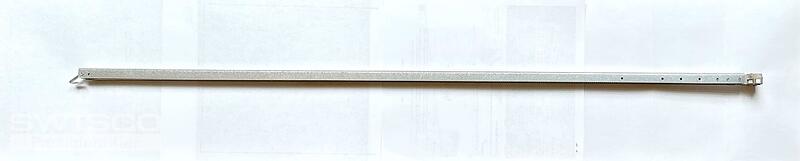

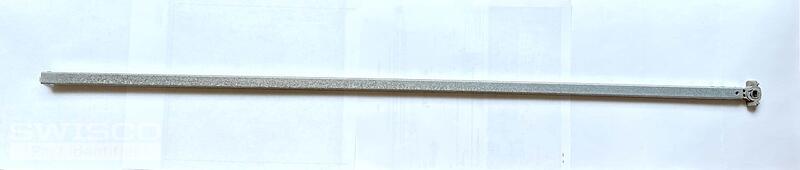

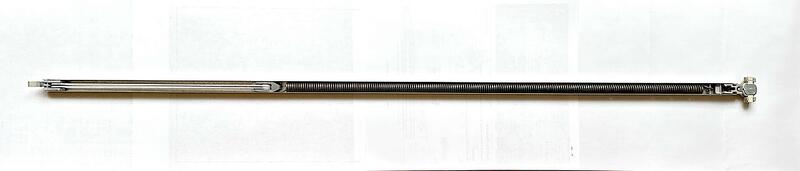

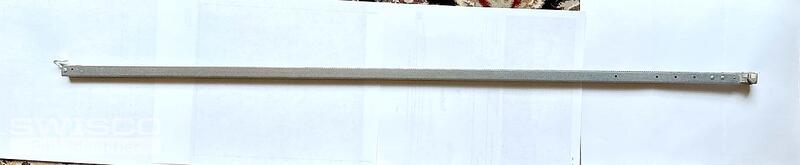

Your channel balance resembles the S795 except that yours uses the 15-198 pulley clip instead of a screw tab that comes with our stock balances. We can supply balances with the configuration that you need but it will need to be a custom order. To get started, we'll need to confirm the number of replacements that you need for each stamp code, with the minimum being two of each. Thank you!

How to measure the length of the Series 795 channel balance.

Profile view of 15-198

Detail of 15-198

We'll be happy to send over price quotes for the balances that you need but we'll still need to confirm the exact number of replacements that you need for each stamp code.

Great, we just sent over order links and price quotes for the balances you requested. Take a look and let us know if you need anything else.

It sounds like you are asking how to engage the pivot bars on the bottom corners of the sash with the metal 15-195 T-lock shoe cams. If so, you would need to make sure that the metal cam in the T-lock shoe is in the locked, u-shaped position before installing the pivot bars while holding the sash at an angle before lifting it onto place in the window frame, which will unlock the balance T-lock shoes and allow the window to open and close. See this part of the installation process at time stamp 3:38 in the video below.
