circa 1987 Milgard channel balance parts

Question

Hi,
I need 2 21" replacement channel balances for my old Milgard windows.

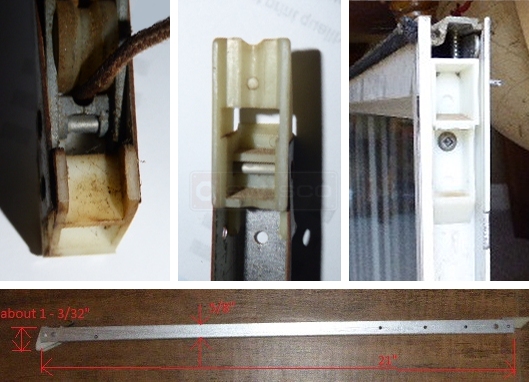

I attached pictures, with measurements. They are stamped 2040.

I'm not sure which series (385?, 390?, 395?) to order. They all look very similar, but none exactly match the ones I have (shoe guide depth, top and shoe guide "wing" widths). I measured the shoe depth to be about 1-3/32". Can you help?

I also need 2 top sash guides. Is the 18-008 the correct one?

Do you sell the small black plastic glides? Do you sell replacement black weather strips?

thanks,
Rod R

Tom · Accepted Answer

I agree, the 18-008 looks like a close match for your top sash guide. I would just make sure all the dimensions match.

As for the balance, I think you have our Series 390 channel balance. The depth of this shoe is 1-1/8". It's not the Series 385 or Series 395 because neither of your nylon attachments have wings.

We don't sell that black face guide you show, but we might have the weatherseal. You can see our entire selection here.
