coil balance

Start a new Discussion

Quick Learner from dayton Ohio

Aug 22, 2024 11:43 am

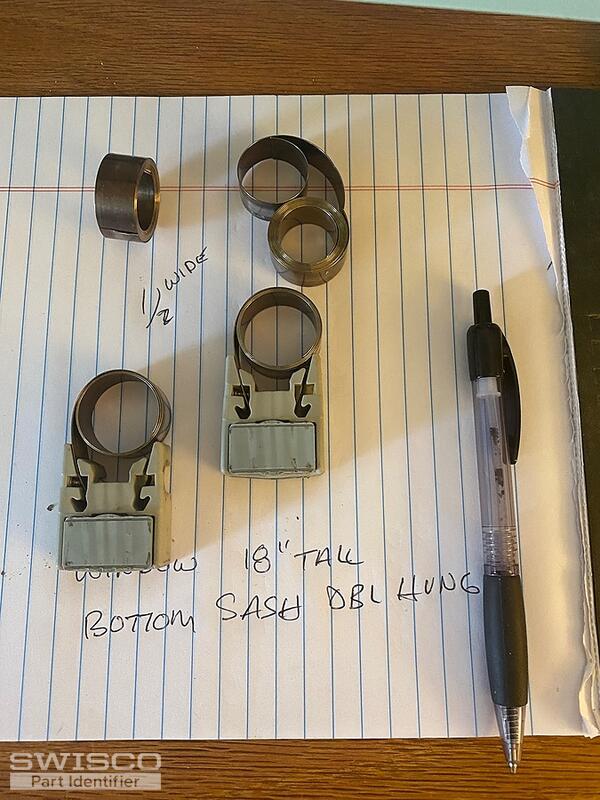

not sure which one I broken, so I took both out, dbl hung windows bottom saw 18'' all, coil is 1/2 in wide

1 user uploaded image

6 Replies

Emily from SWISCO

Aug 26, 2024 1:41 pm

Hey there!

Thanks for reaching out to us. Check out the 15-177 pivot shoe. This looks to be what you need. The Series 152 are the compatible coil springs. They're designed to be screwed to the side of the shoe.

Let us know if you have any questions!

Quick Learner from dayton Ohio

Aug 26, 2024 5:03 pm

Thx for reply, do I need to buy balance shoe and spring??, do they come together?? How do I put them together?? in the window, thx

Quick Learner from dayton Ohio

Aug 27, 2024 11:20 am

I figured out I just need the springs, they are stamped 7K, does that me 7 lbs?/ if so I will place order for 2 thx

Emily from SWISCO

Aug 27, 2024 12:01 pm

The 15-177 and Series 152 springs are sold separately. If the spring is stamped 7, you'd want the S152-7 7-pound spring. If you need new spring supports, see the 15-143 bushing, 15-144 cap, and 15-145 barrel. These parts "sandwich" around each spring.

Quick Learner from dayton Ohio

Aug 27, 2024 12:35 pm

thank you
