double hung, tilting window hardware

Handy Person from toronto, ontario, canada
lient has two windows, same dimensions.  The Spiral Balance Springs are S600 (4 at 16 inch, 4 at 22 inch) red tip, 9/16.  As per pictures need your recommended pivot shoe and pivot rod. I belice that the shoe is the 15-046 and the rod might be 26-040. For shoe my measure indicates 9/16, i have doubts if the 5/8 one you have will fit the channel.
I also wanted a charging tool, but it seems you cannot get this??

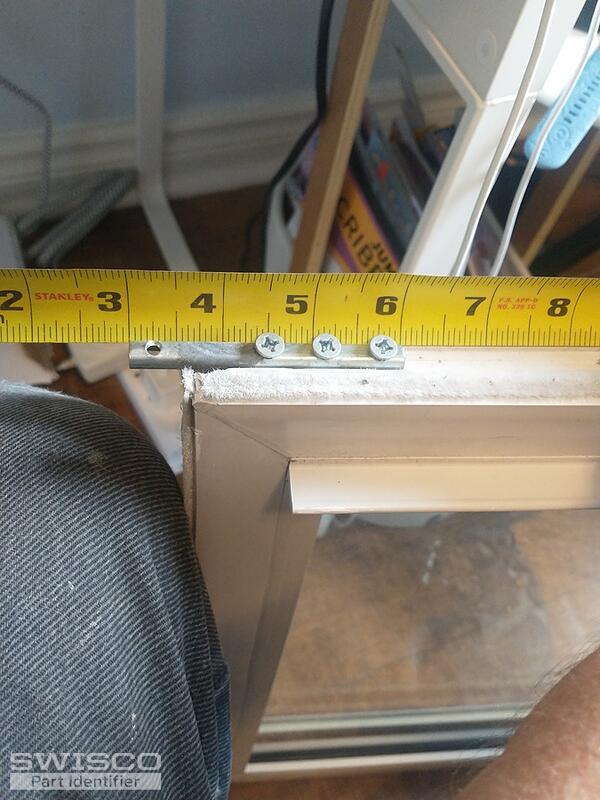

4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Our 15-046 is a little smaller than 9/16". If you are confident in that measurement then something like our 15-121 may be better. This is 1-1/4" wide and 9/16" thick and is compatible with all the same hardware.

I do agree that our 26-040 pivot bar is a winner.
