first balance is marked PAT. 5.737.877

A quick learner from Franklin, NH says:
September 3, 2019
Picture 1622 tube measures 27-1/2 inches(shoe not added) 20 pound window
shoe is 1-1/4 wide and 2" long(pic.1626)
also need pivot bar (pictures 1643,1634,1633)

second window tube measures 15-1/2 inches(shoe not added) 12 pound window
same shoe, same pivot bar

Please help with this so I can place my order (I believe I need series 795)?
Thumbnail of the uploaded file named IMG_1622.JPG
Thumbnail of the uploaded file named IMG_1626.JPG
Thumbnail of the uploaded file named IMG_1633.JPG

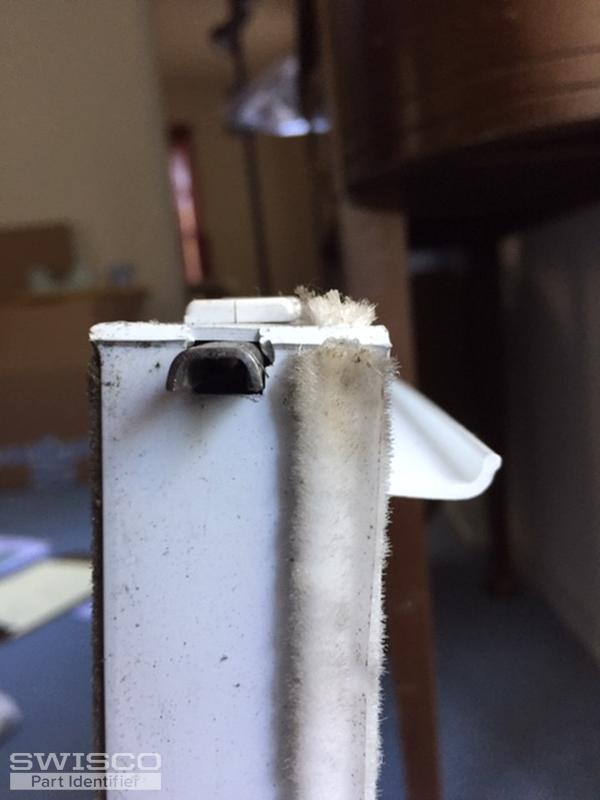

Thumbnail of the uploaded file named IMG_1634.JPG

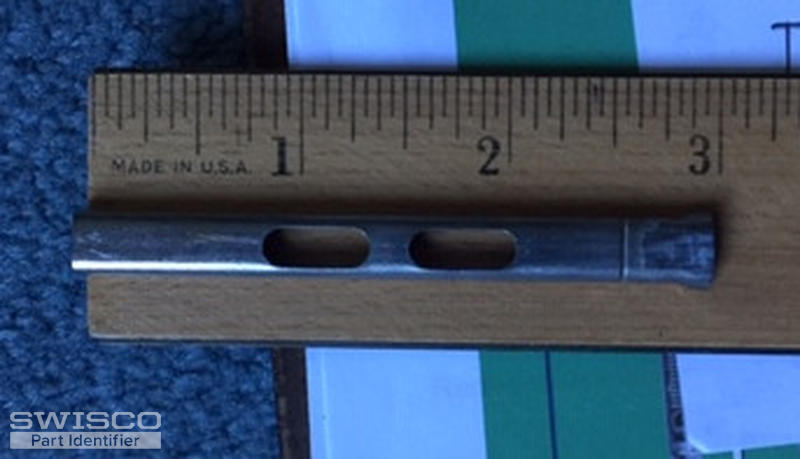

Thumbnail of the uploaded file named IMG_1643.JPG
Profile picture of Paul
Paul from SWISCO responded:
September 11, 2019

Thanks for posting. Your rod-type balance isn't made anymore, but you should be able to use our Series 770 as a replacement. You'll have to determine the length of the metal channel by measuring an undamaged version of your old balance, though. That's the only way to get an accurate measurement. You may end up needing a 16" balance but that's just an educated guess.

Your shoe looks like it's in good condition so you can reuse it. If that's not possible, see our 15-129.

As for the pivot bar, I recommend our 26-368 and 26-451 carrier.
Flared Slotted Pivot Bar
Flared Slotted Pivot Bar
26-368
$1.50
Pivot Bar Housing
Pivot Bar Housing
26-451
$1.20
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
16" Series 770 Balance
16" Series 770 Balance
S770-16
$11.52
