in need of balance shoe and pivot bar plastic housing

A quick learner from Millbury MA says:

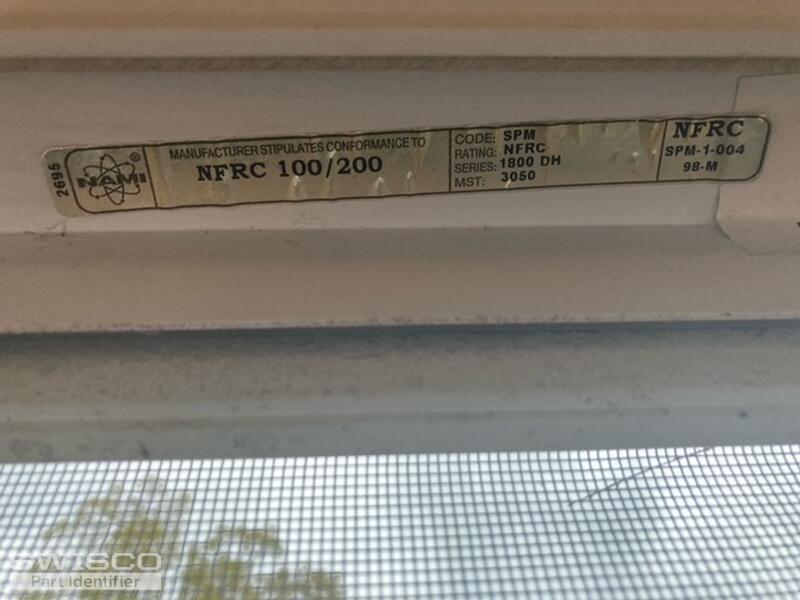

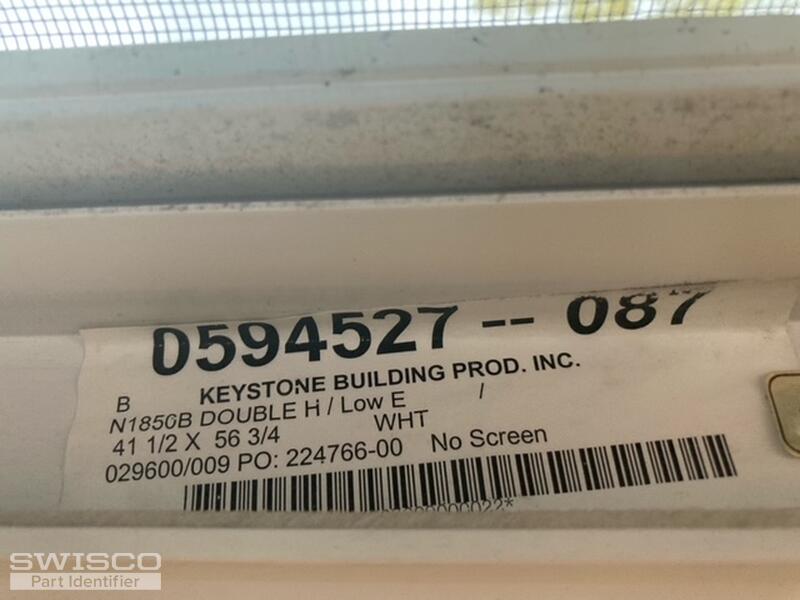

Hello I've included pic of stickers on my 16 year old windows and the balance shoe and pivot bar plastic housing. I'm confident I found the housing on your webpage,
https://www.swisco.com/housing/pd/Tilt-Window-Replacement-Sash-Pivot-Bars/26-451

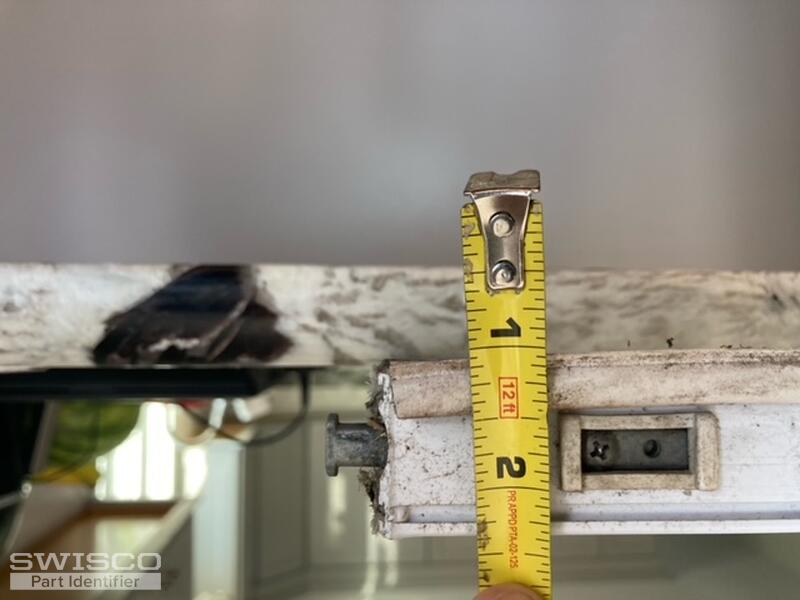

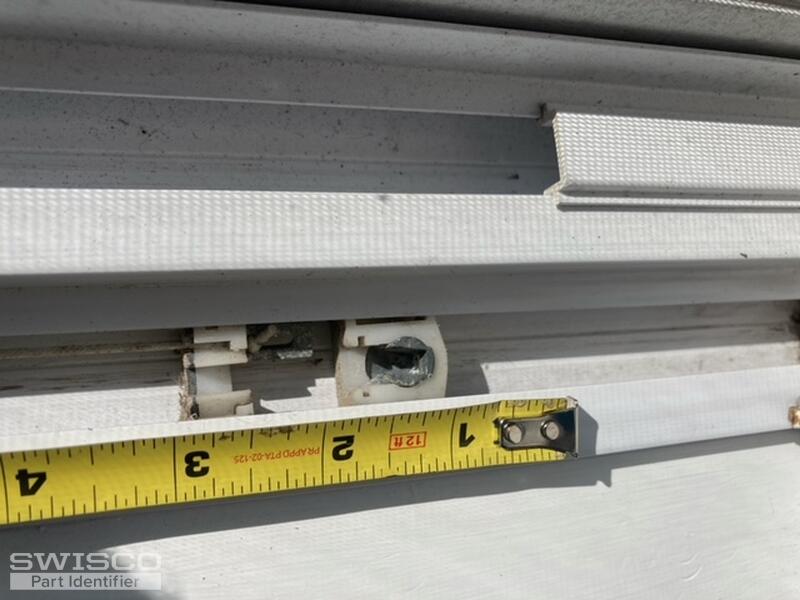

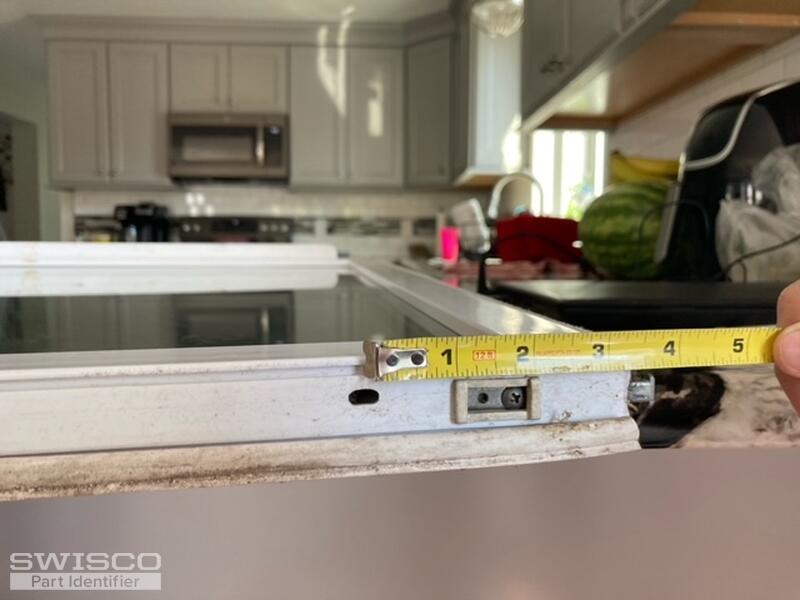

But unsure of what balance shoe to buy and install. My shoe is 9/16" thick but it looks like the bottom part that the pivot bar locks into isn't connected to the part above that has the string attached. So I don't really understand how it works. That part looks to be about 15/16" in height. I can send more pics if that will help. Please let me know so I can order all the parts at one time. Thanks.
Nate
Thumbnail of the uploaded file named image7.jpeg
Thumbnail of the uploaded file named image4.jpeg
Thumbnail of the uploaded file named image3.jpeg
Thumbnail of the uploaded file named image2.jpeg
Thumbnail of the uploaded file named image1 (1).jpeg
Profile picture of Bob
Bob from SWISCO responded:

You have the former Super Seal window. The pivot bar housing will be tje 40-451 and the pivot bar will be the 26-452. Depending on the size, you can either use t15-129 pivot shoe (1-1/4" wide) or 15-167 shoe (1" wide). Please compare.
