A pair of 2230 channel balances

Contractor from Orlando, FL

May 27, 2024 9:42 am

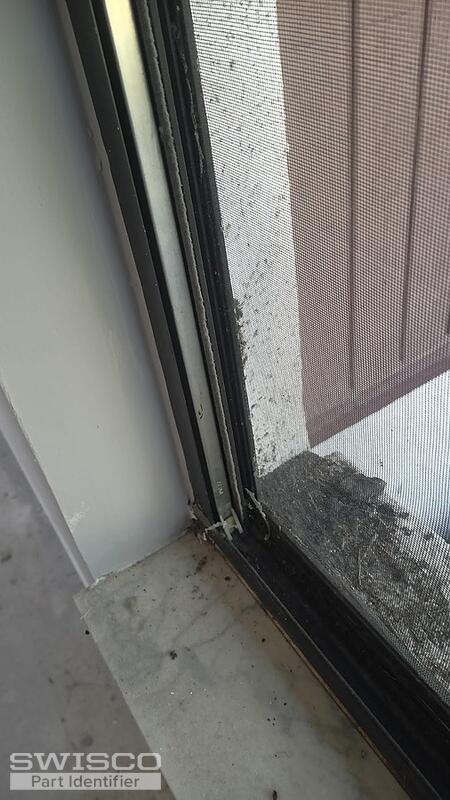

Hello. Need a pair of channel balances for a single hung aluminum window (older models I think). Window is likely over 20 years old.

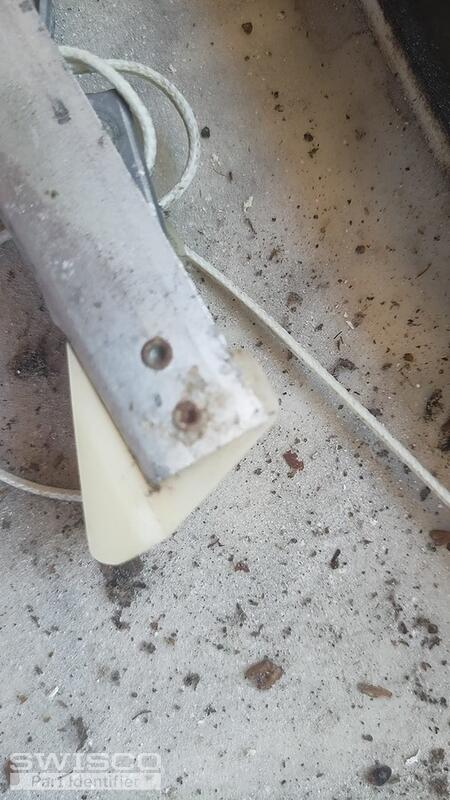

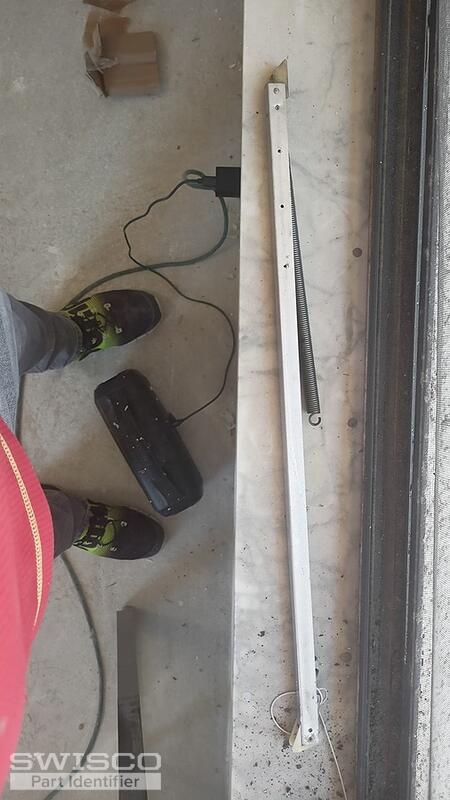

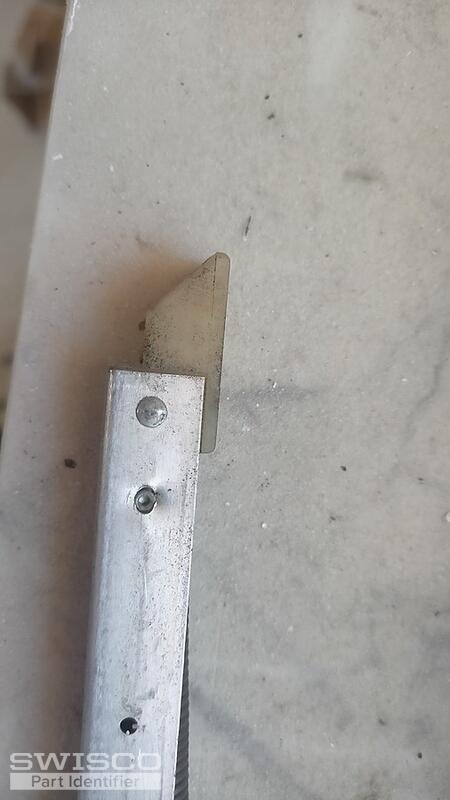

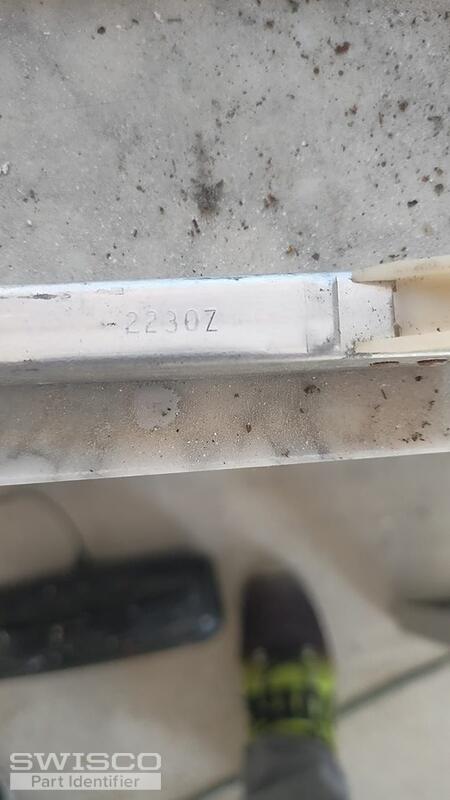

The size of the aluminum balance is 23" (not including plastic tips).

Can you help me figure out which ones I need? Thanks

qwe

5 user uploaded images

2 Replies

+ Add a Comment

Casey

Casey from SWISCO

May 30, 2024 12:54 pm

SWISCO

EXPERT

Hello,

It looks like you have either our S351-23, with a 15-002 bottom attachment, or S390-23, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

You'll also need a 2230 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.

Comparison of the S351 and S390 balance shoes.

Contractor from Orlando, FL

May 31, 2024 11:12 am

thank you very much. I was able to order correctly :)
