need replacement balance

Quick Learner from 46580

Oct 12, 2020 10:36 am

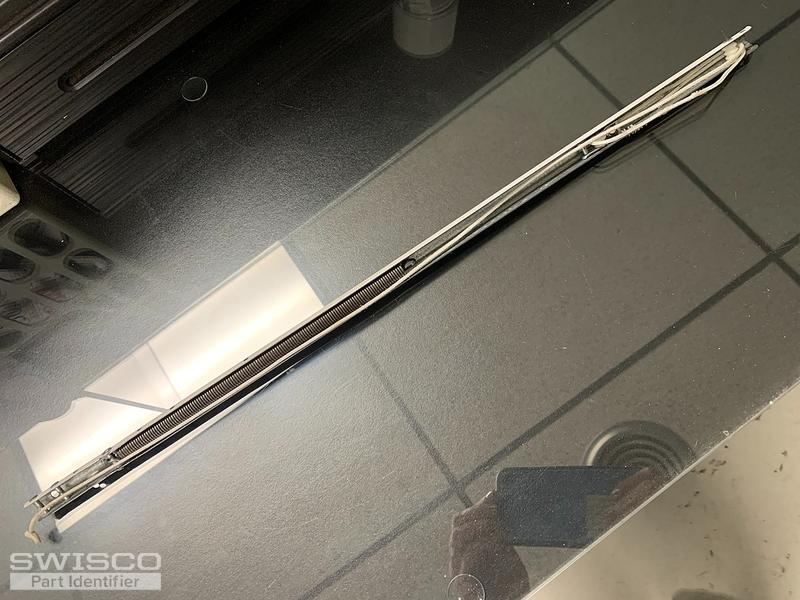

I am trying to find this particular balance for a customer. It is 20 1/8 inches long, and 1/2 inch in thickness and width. I would need 4 of them.

4 user uploaded images

8 Replies

Bob from SWISCO

Oct 15, 2020 10:47 am

Thanks for posting. Can you confirm the length of the metal channel? Can you also give us the stamp code on the metal channel, as clearly as possible? And is there any other attachment besides that hook on the bottom?

Quick Learner from 46580

Oct 15, 2020 11:18 am

I put the length on my original message...it is 20 1/8 inches long, I am not sure if it had other attatchments, this is all the customer brought to us. The stamp code is E03 19 reg

Paul from SWISCO

Oct 15, 2020 3:06 pm

Perhaps I can help. You don't show what type of clip on the end of the cord, so I'm not sure exactly what you have. It might be the S751-20 with a 15-014 knife lock shoe, and a stamp option of 19R. The broken metal clip looks like 19-029, sold separately. Compare these parts and let us know what you think.

Quick Learner from 46580

Oct 15, 2020 3:41 pm

Is the 19R narrower than the 19HD?

Tom from SWISCO

Oct 16, 2020 8:31 am

No. All Series 751 balances are the same width. The stamps only indicate the strength of the spring.

Quick Learner from 46580

Oct 16, 2020 8:50 am

Well, then is is all correct except the width. The current one he has is 1/2 inch in width all around.

Tom from SWISCO

Oct 16, 2020 10:06 am

Thanks for clarifying. It's possible you have an older version, or that it was made by a different manufacturer. Most ribbed channel balances are 9/16", but many companies label them as 1/2". I'm not sure why, you'd think they'd want to be precise.

Either way, the actual measurement for our balance is 9/16". We do not have a 1/2" version. If you think you need 1/2" and not a fraction more, then our Series 751 will unfortunately not work. I apologize for the inconvenience.
