20" Series 751 Channel Balance

Product Code: S751-20

20" Series 751 Channel Balance
Main product image of the S751-20 20" Series 751 Channel Balance
Detail view of balance shoe
How to install a ribbed tilt channel balance with knife lock shoe
$9.75/each
Quantity Price
1-11 $9.75
12-49 $8.78
50-99 $8.29
100-249 $7.80
250+ $7.31
Please Note: Bulk pricing applies only to purchases of the same option
Option:
19HD
add $0.45
19R
19TG
add $0.95
Product Description
This is a Series 751 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 20” long metal channel.
  • Comes fully assembled with a 15-014 shoe attached and will be ready to install out of the box.
  • The width of the metal channel measures 9/16”.

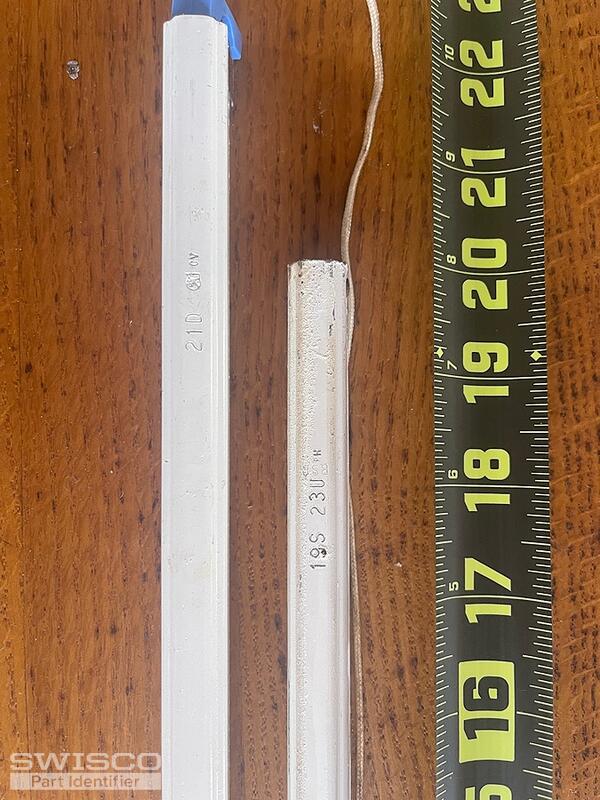

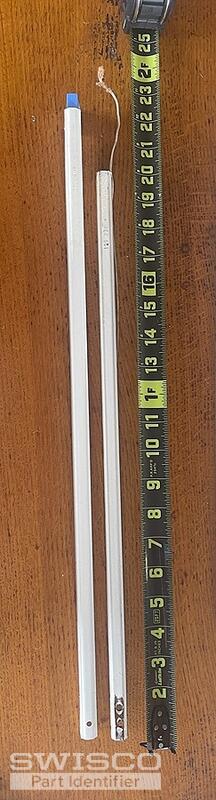

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in windows manufactured by Kolbe as well as others.
    • Stamp Option Sash Weight Range
    19R 10 to 17 lbs
    19HD 17 to 22 lbs
    19TG 22 to 24 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Norco window channel balance--S751-20? 2 Apr 24, 2017
Plastic sash available? 2 Mar 16, 2016

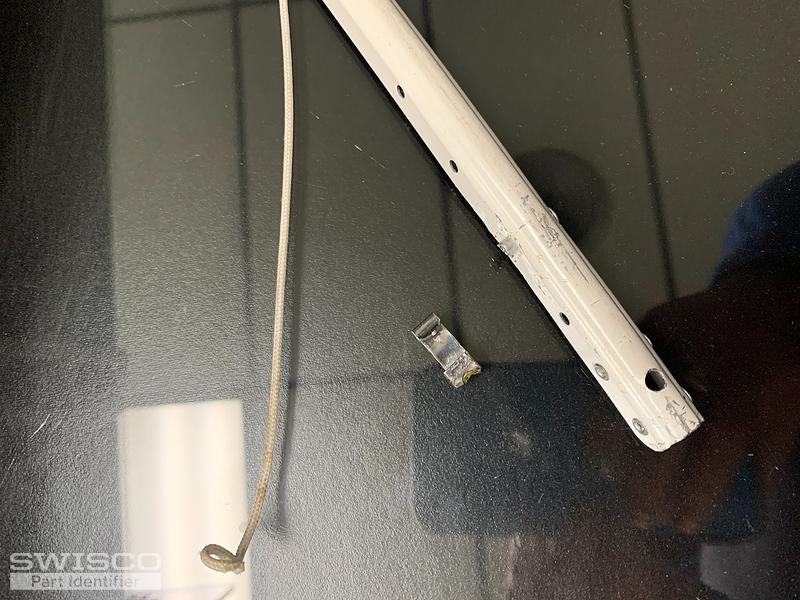

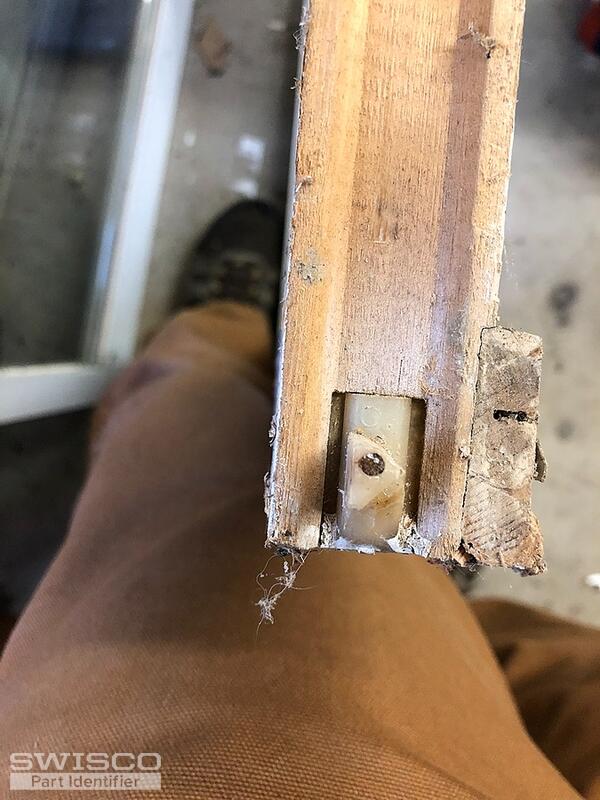

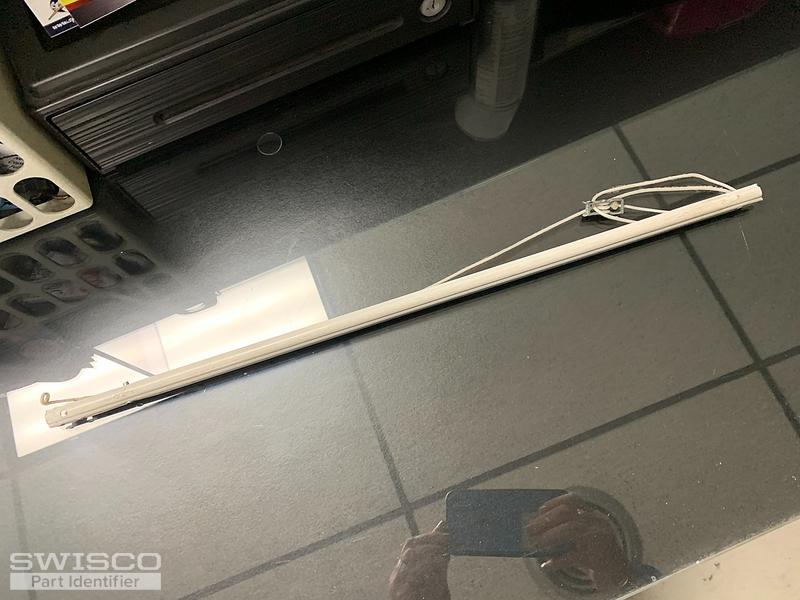

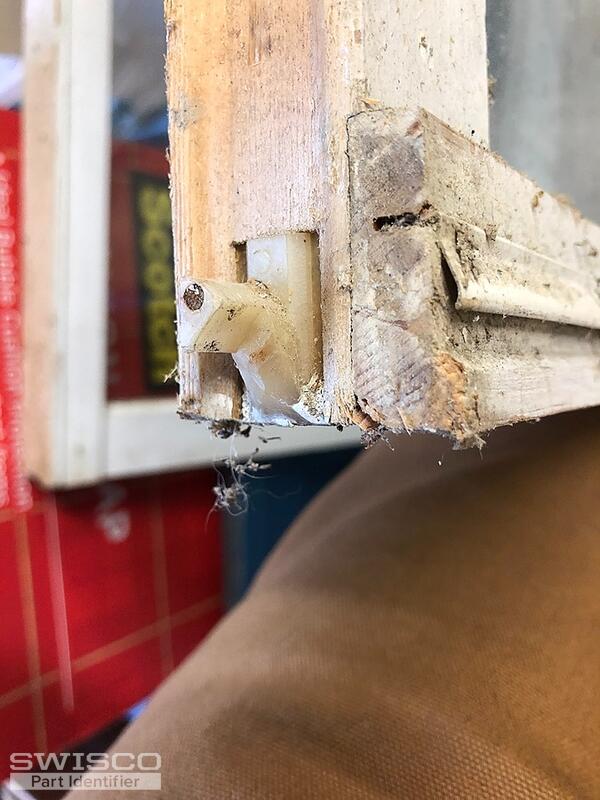

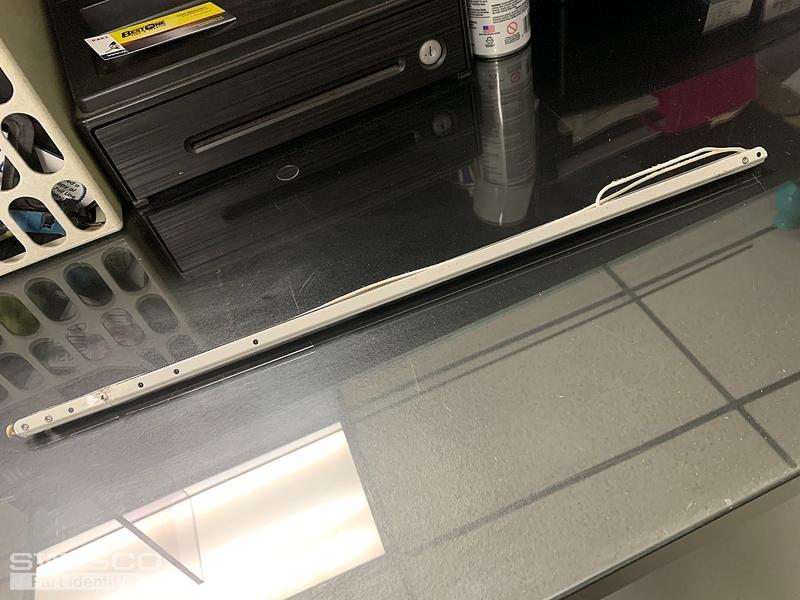

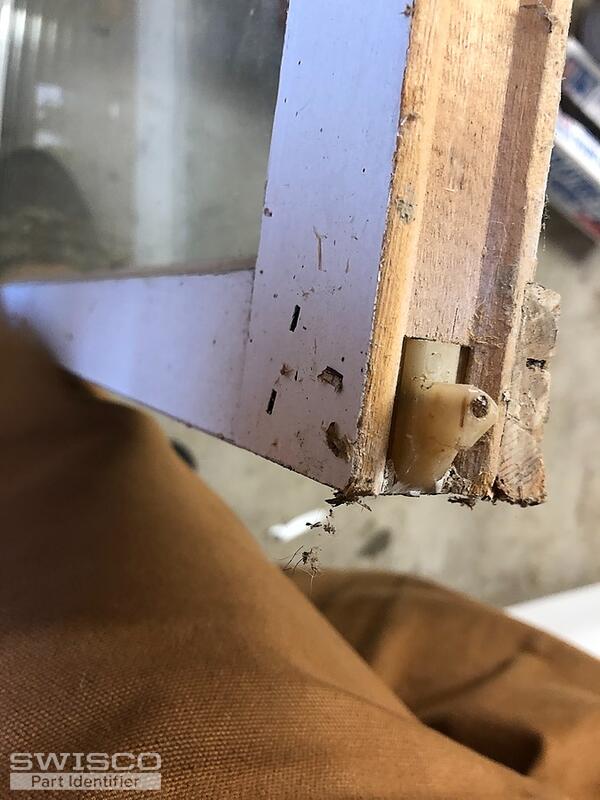

Channel Balance Replacement, Marvin WindowThis discussion includes image(s). 3 Aug 7, 2015
