need to find these parts

A quick learner from queens says:
November 17, 2020
Please if you guys can help me ID the coil balance and the pivot bar that goes with it? greatly appreciated!
Thumbnail of the uploaded file named 20201114_121202.jpg
Thumbnail of the uploaded file named 20201114_121154.jpg
Thumbnail of the uploaded file named 20201114_121238.jpg

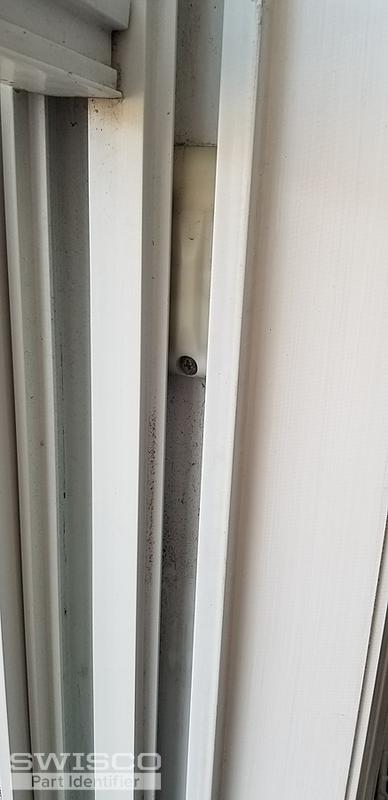

Thumbnail of the uploaded file named 20201114_121149.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 20, 2020

See our 15-199 Pivot Shoe, which uses either our Series 160 1/2" thick Coil Springs or the Series 165 3/8" thick springs. You'll need to remove your existing balance assembly and measure the thickness of the coil springs to see which of these Series you need. The video below shows how to remove and replace these Coil Balance assemblies. For the pivot bar, see if the 26-378 matches up.
