new coil balance

Question

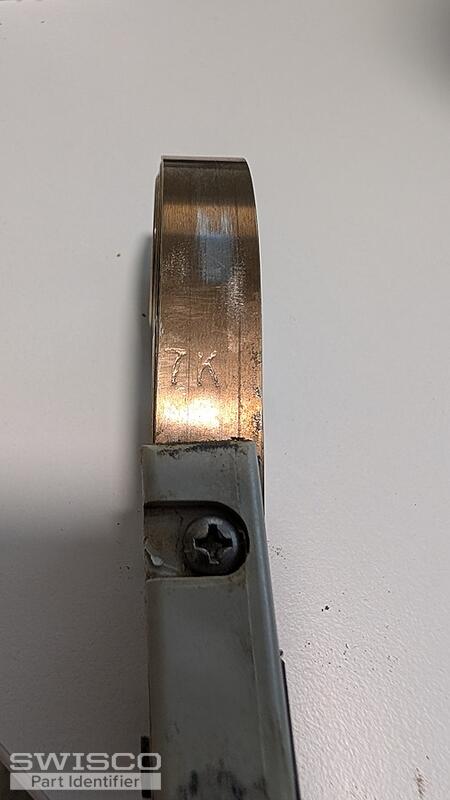

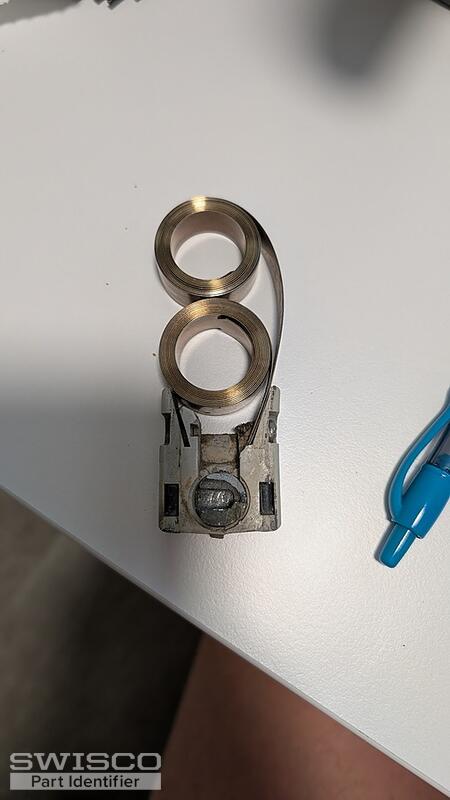

looking to replace the whole setup, coils, bushings, shoes, etc. as well as the tilt latches for the top of the sash. coils have 7K printed on them and are 1/2" wide. I believe it is the 7lb series 152, but want to confirm, as well as the rest of the parts i will need.

thanks!

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. I agree. The S152-7 would be what you want based on the photos shown here. The pivot shoe is the 15-177, and the compatible coil supports are the 15-143, 15-144, and 15-145.

As for the tilt latches, take a look at the 26-243A and 26-244A. Our latches don't have the same curved tooth, so we can't promise a suitable fit, but review the specifications and see how they compare with yours.

Dimensions for 26-243A

Dimensions for 26-244A
