What is the material of the 39-114L?

Is this 100% steel? I bought something similar that had plastic internals and a steel outer body and if it isn't tight enough it will strip the plastic teeth. Don't want to make the same mistake.

How to remove the 39-114L casement operator handle

I just placed an order for various casement window hardware pieces. One of the components is the 39-114L window operator crank handle. This is a snap in place handle. My question is how is this removed when I need to replace the operator hardware or cover in the future?

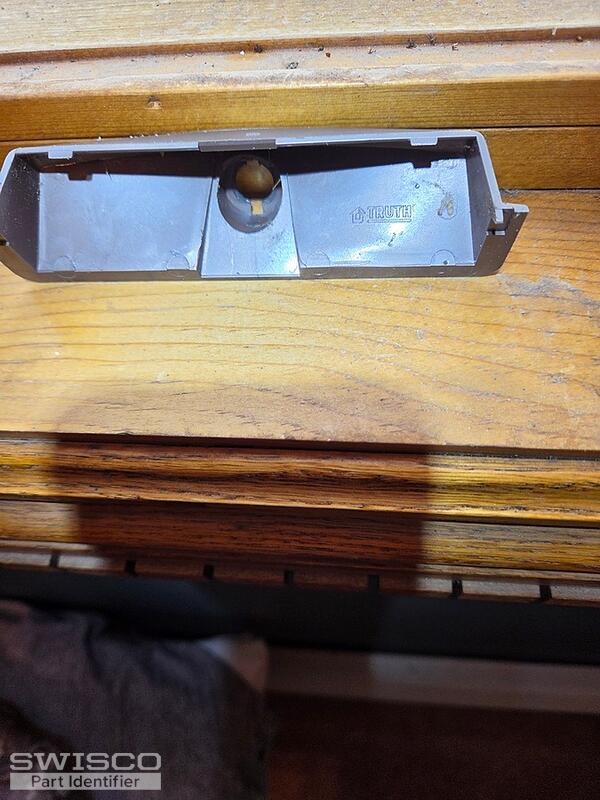

Does this handle Fit Truth windows?

Will product Code: 39-205 or 39-114L fit Truth? The folding arm has Truth inside but no part number. There seems to be 12 splines. A search on the net shows it could possibly be Truth 11329 (or 11329.32 for white).

operator parts

Hi There,I've attached an image of the operator and guide parts for a casement window that I have. On one of them, the second linkage (not the one directly connected to the operator) has failed due to rust and is now broken. I think I have purchased this operator from you int he past, but can't seem ... (cont.)

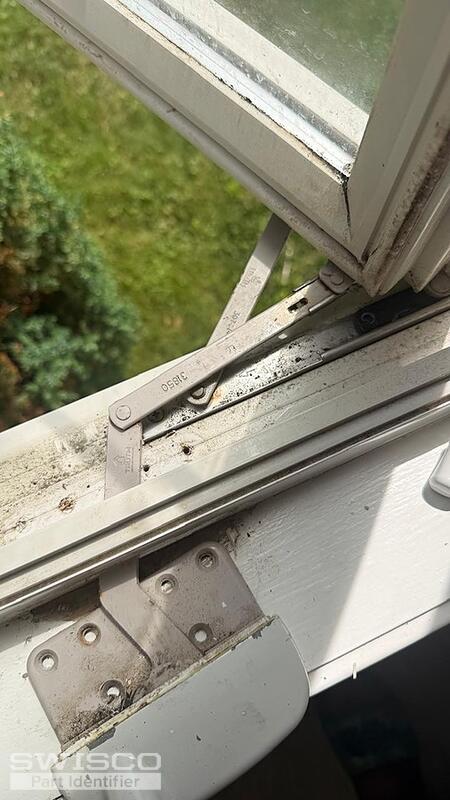

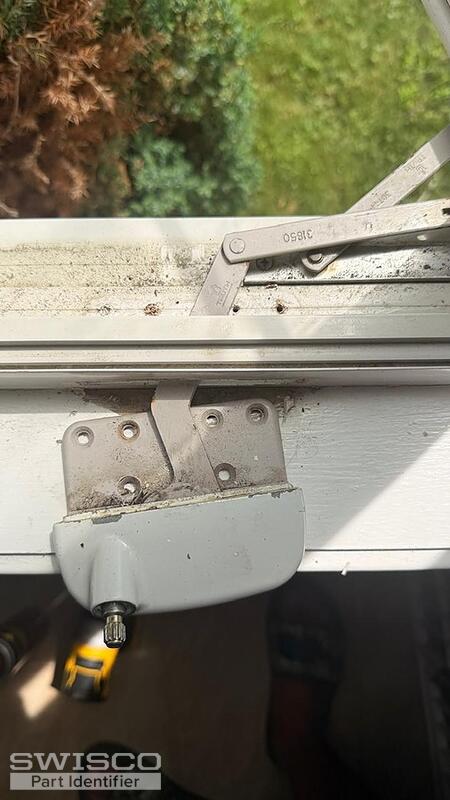

need to replace the windows operator

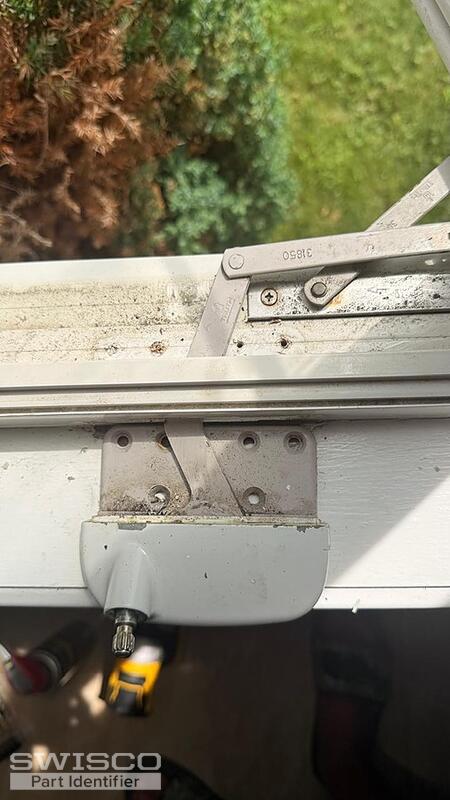

description found on the item : Truth 31850 i need one left and another right

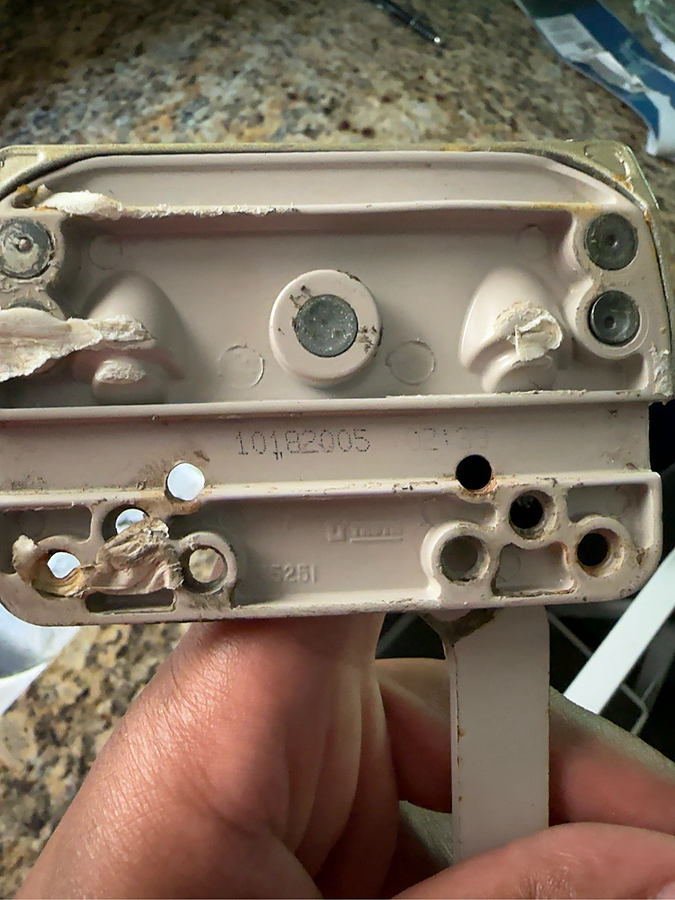

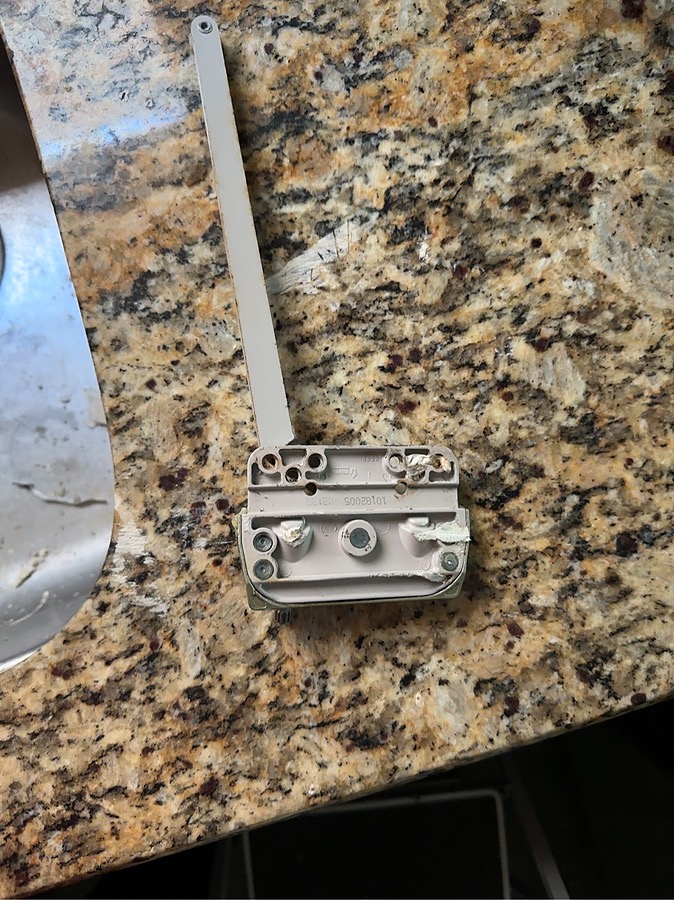

Broken window operator

Only marking is "RH" on underside of mech. Cover over gearbox does not appear to be removable - one piece casting.I see the brand name "Caradco" on the knob. Distance from center of pivot to center of outer roller on arm is 13.5 inches. Thanks

+2

Casement window hardware

Hello, I have a client and some of her large casement windows are not closing properly and we have diagnoesed it to the hardware. it seems as if the hinges at the top are pulling from the window and lettign it sag enough where the hinges at teh bottom hit the window frame at the bottom and wont let ... (cont.)

+2

Replacement cave operators

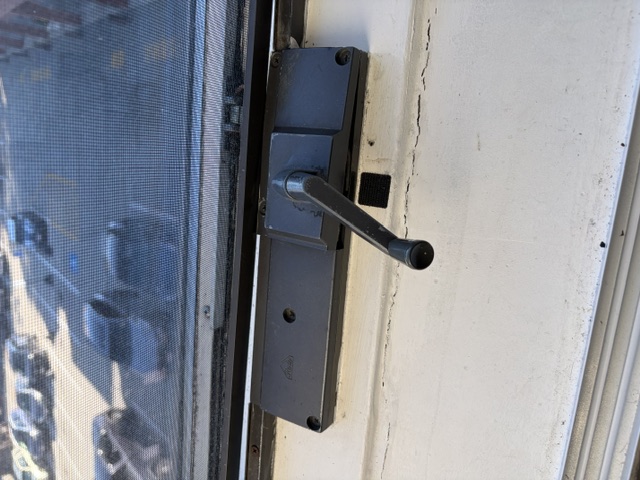

attached our pictures of the type of operator I have on my casement windows. Please advise. Thank you

+1

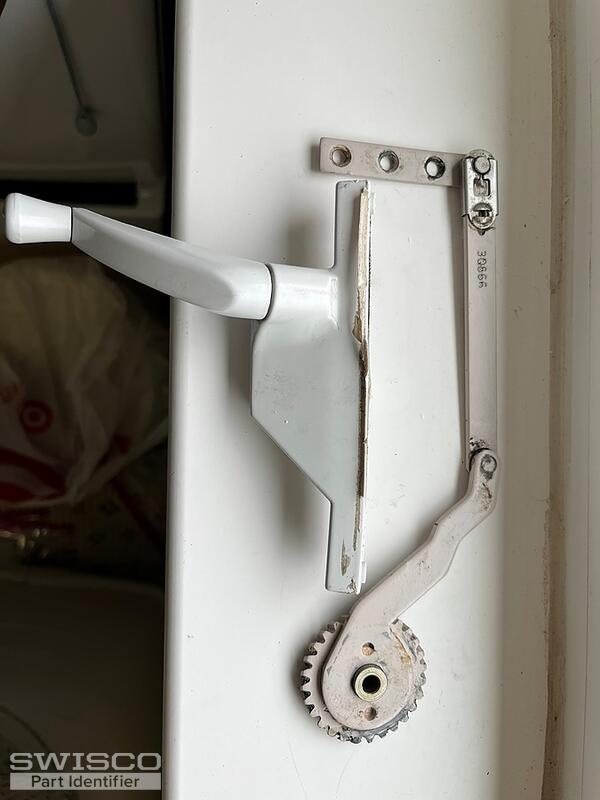

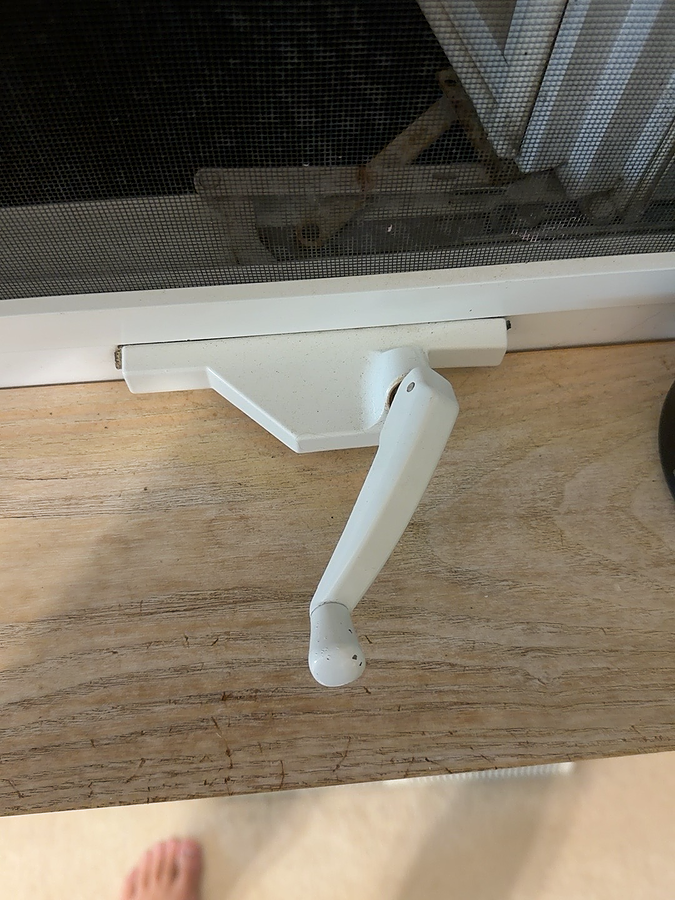

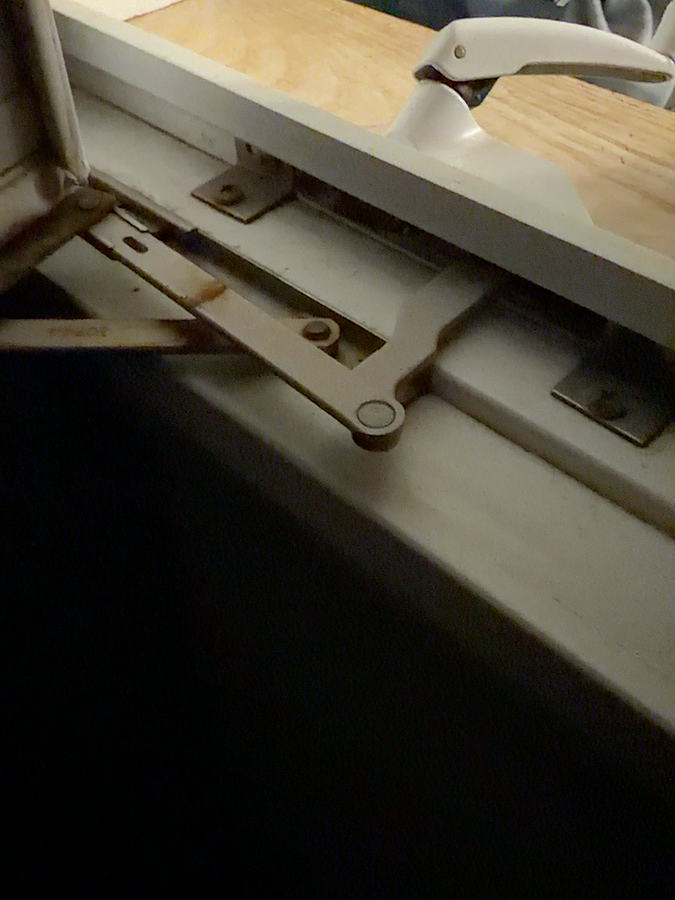

Replace Casement Window Cranks

Could you please help me figure out what I need to replace these parts. I need 2 left and 2 Right windows repaired

+2

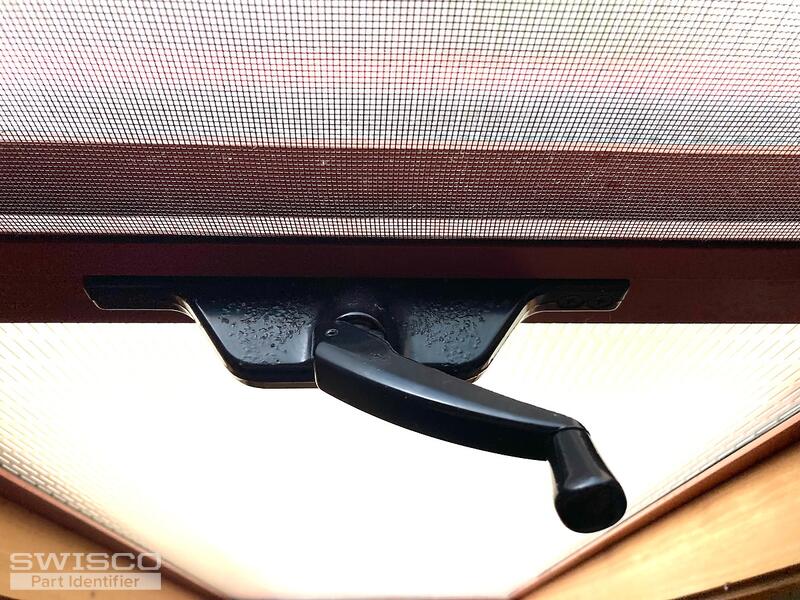

Replacing window hardware

I am looking to replace my window hardware with white hardware. The operator works fine so we don't need to replace the full operator. These parts seem to be very old. Can you help me identify white replacement hardware?

+2

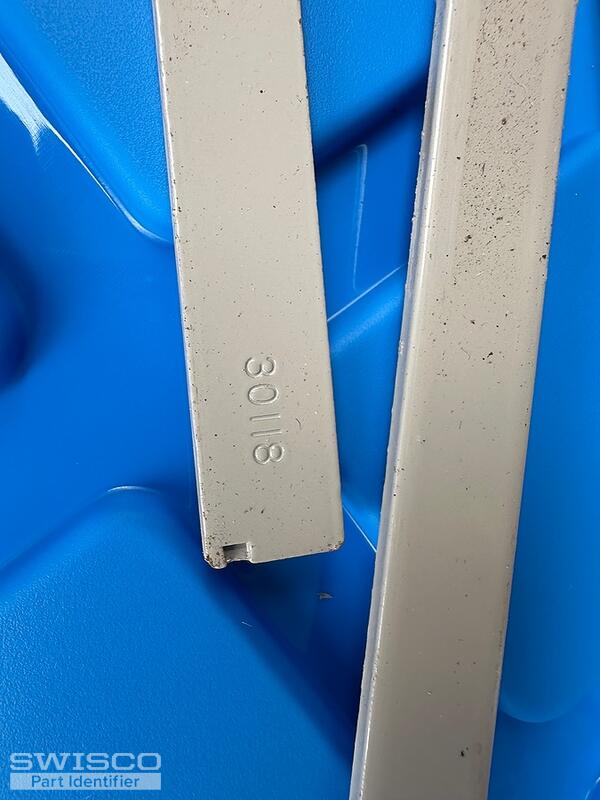

Window casement operator

House built in 2002, Ontario Canada. Visible numbers 30114, 30117, 30118.

+2

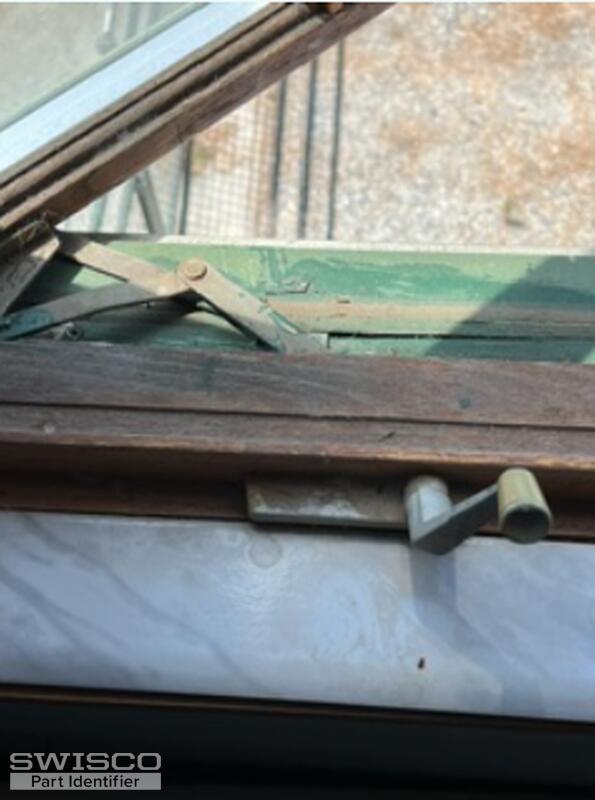

Rimco replacement parts for window crankout

I have a duplex with older crank out windows. Some need crank handles some need new arms I cant seem to find any info on Rimco brand. Any help would be greatly appreciated.I have removed the crank out assembly for the right side looking out of window.Its says LH unsure why but no numbers.If need mo ... (cont.)

+1

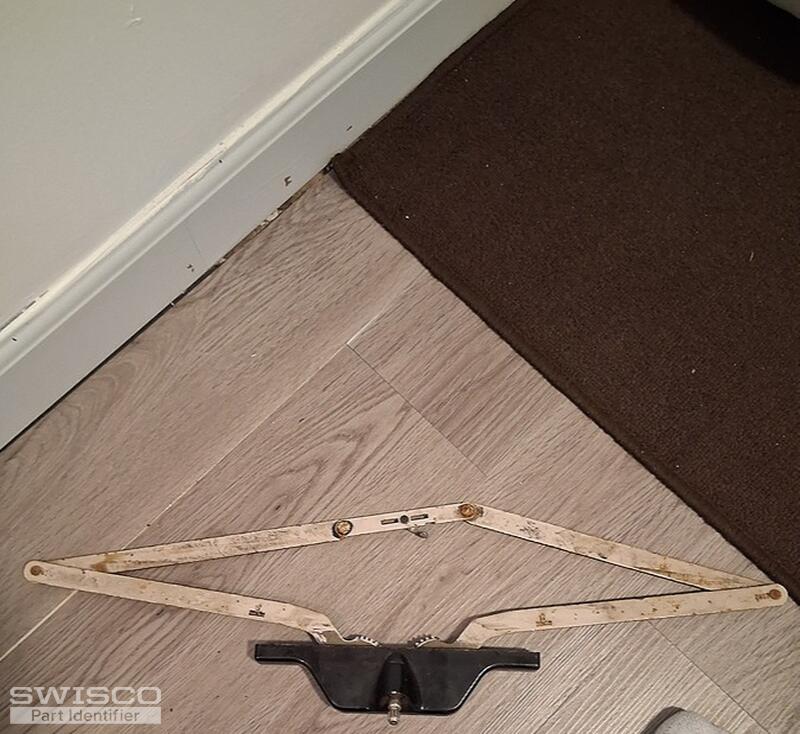

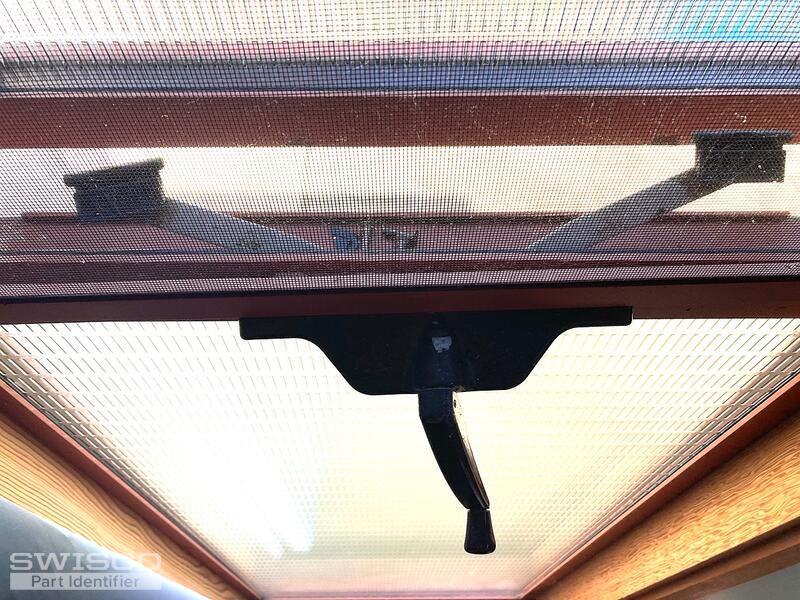

Need replacement awning operator for use with Truth motor

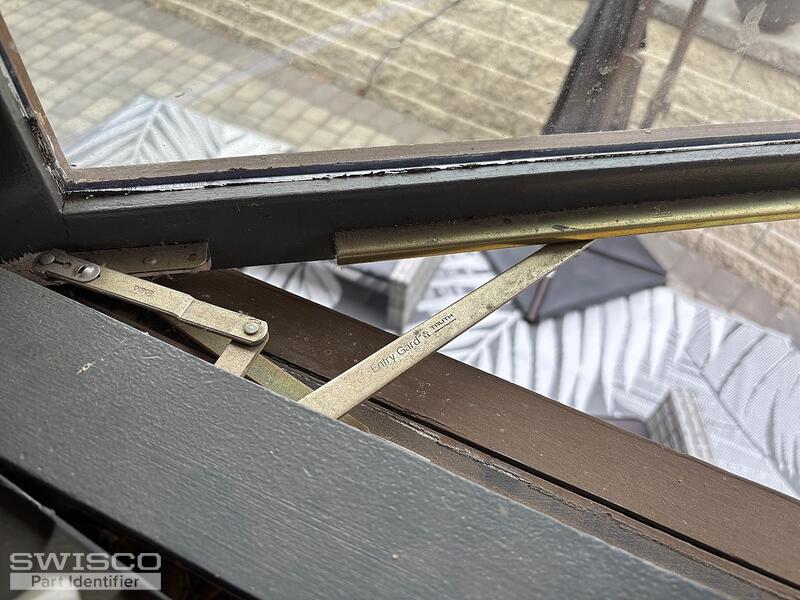

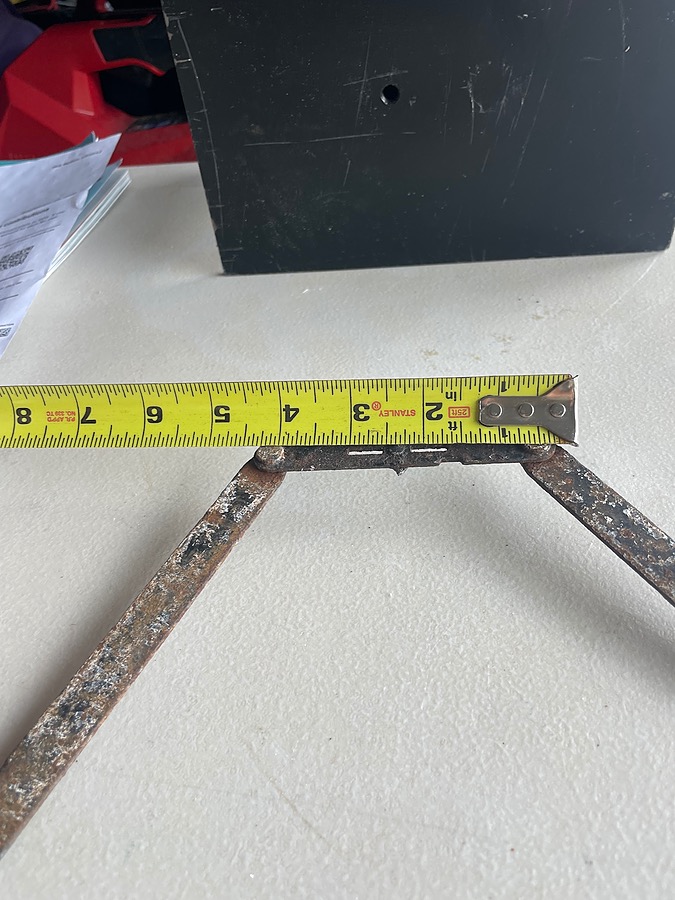

The attached photos are for an operator on a Marvin window that a Truth motor broke -- the crank was broken out of its socket. It has two 8-inch arms, and appears to be EntryGard brand.

+1

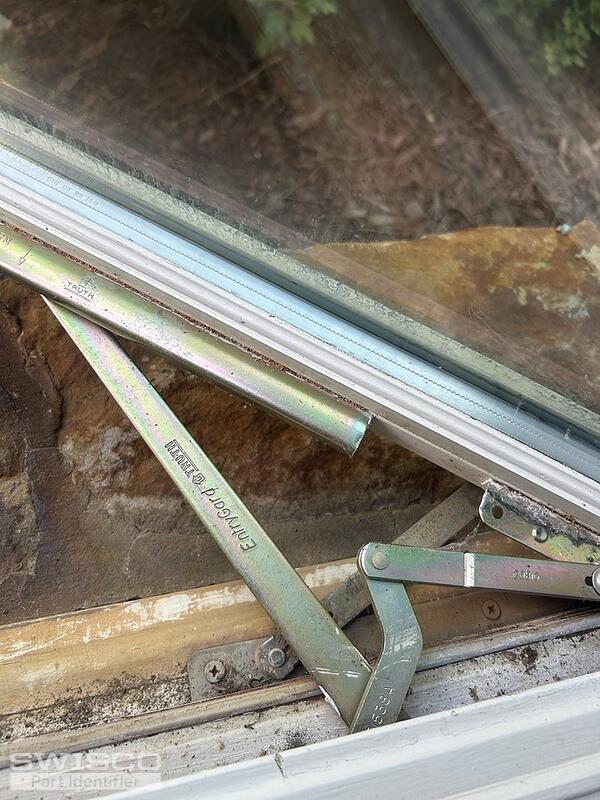

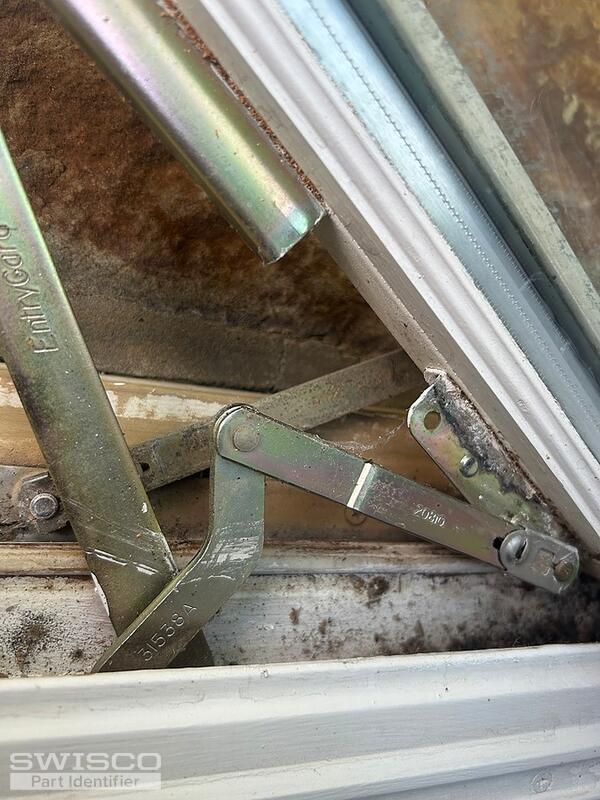

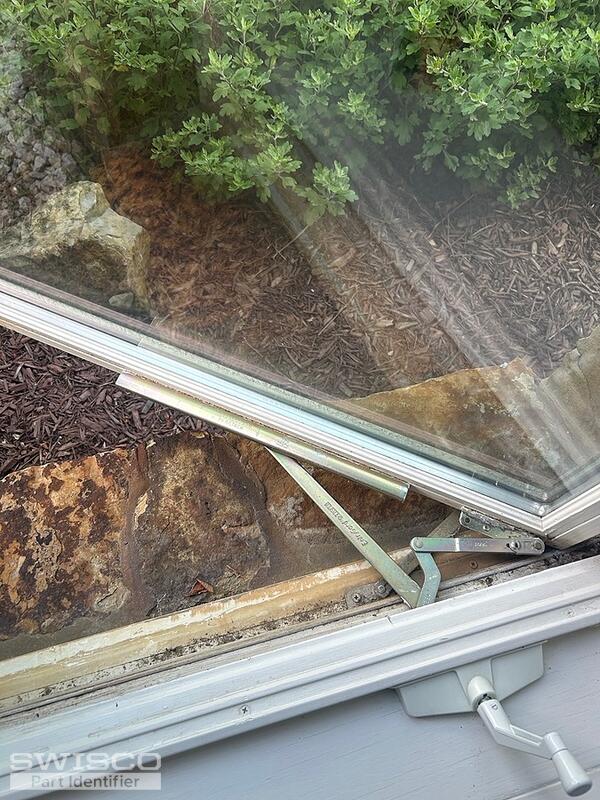

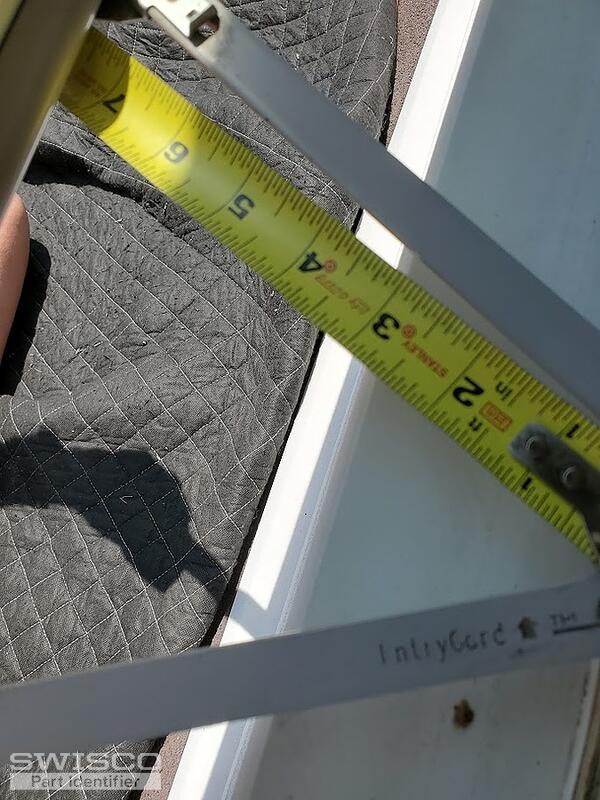

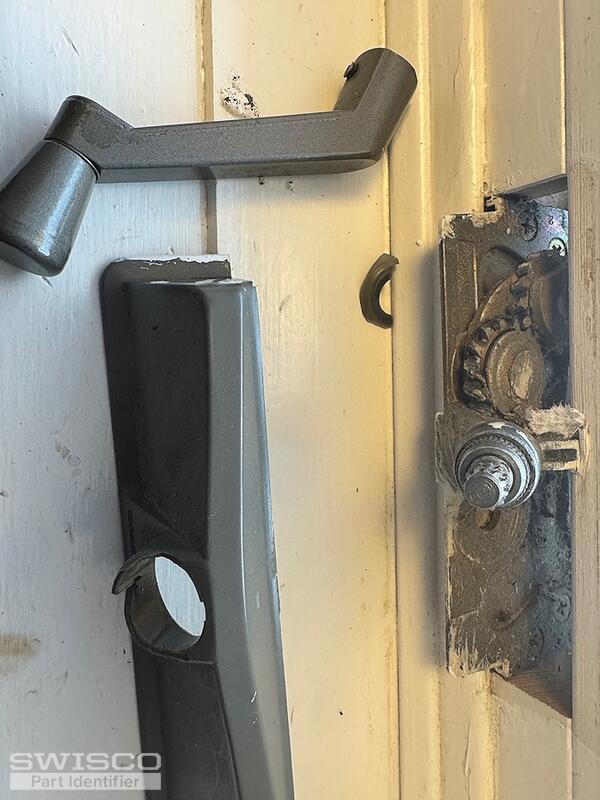

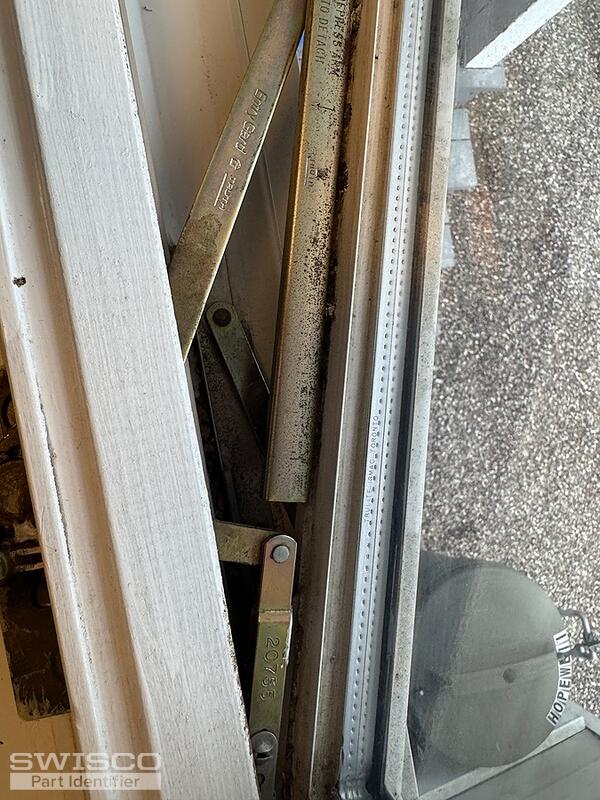

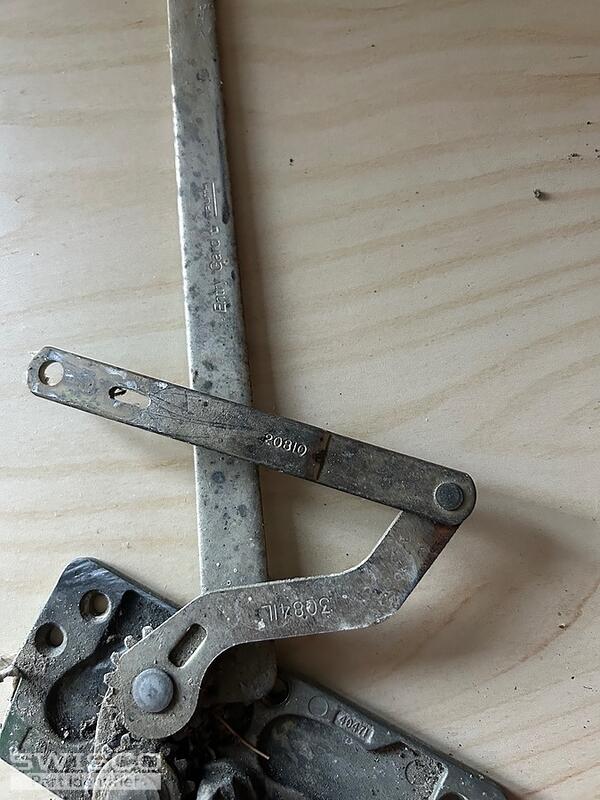

Broken casement windows operators

I have several casement windows operators that no longer work. I have included five photos of the operator that needs replacing. You can see the name Entrygard Truth is inscribed on it along with the number 20810. The one arm is approximately 4.25 inches in length. Do you carry replacements that ... (cont.)

+2

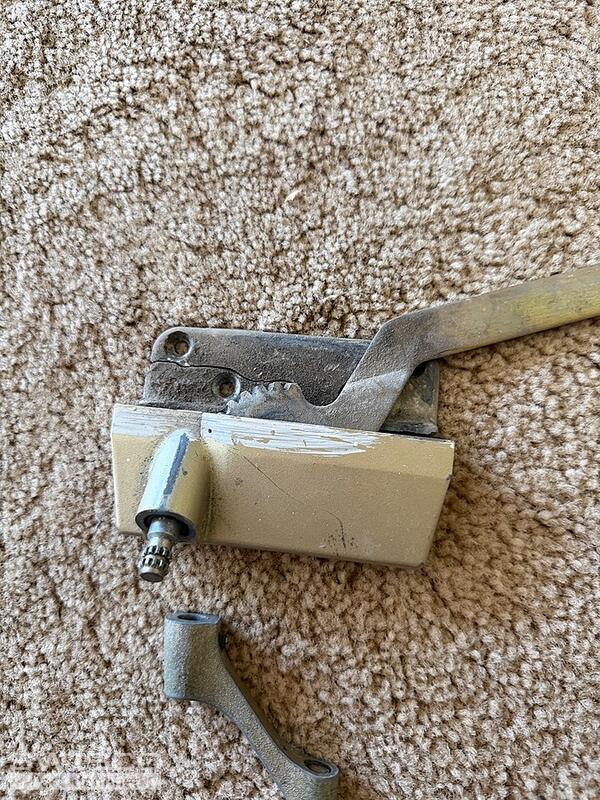

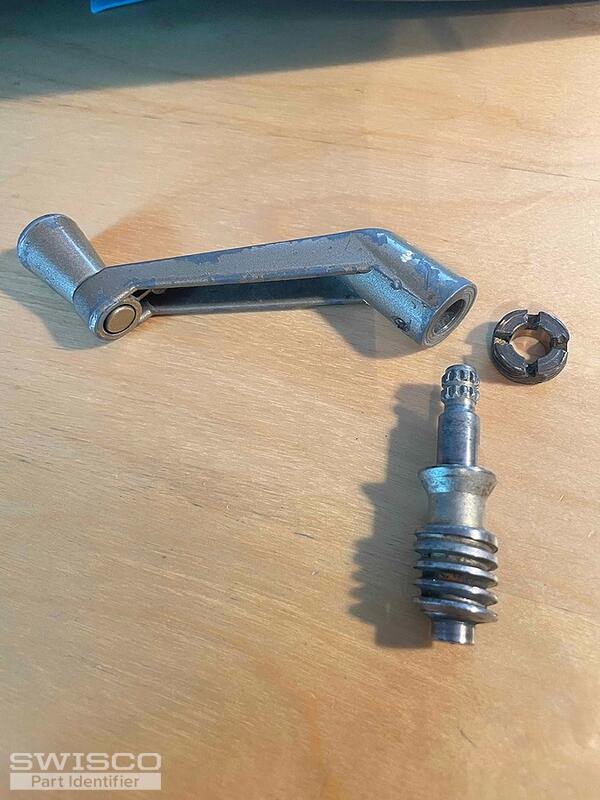

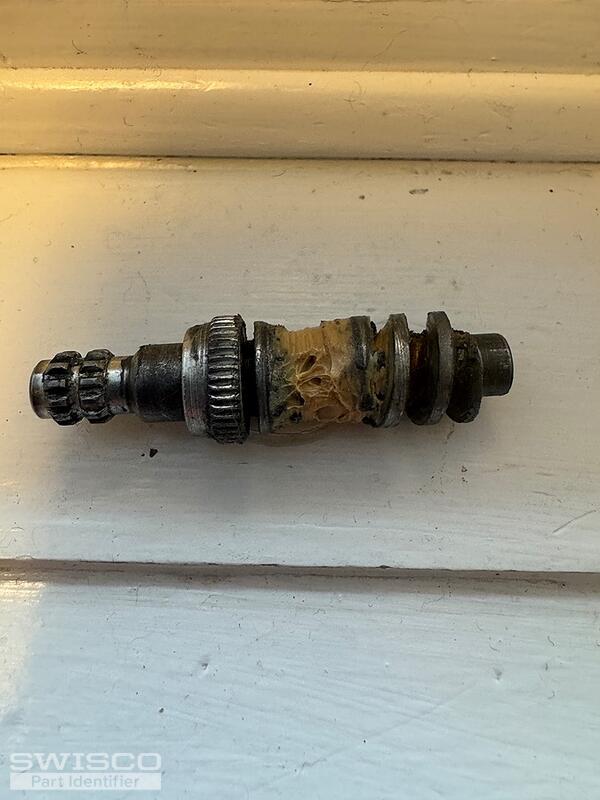

Window opener seems to be stripped

It will open the window but when you reverse it, it will not close the window but turns easily.

+1

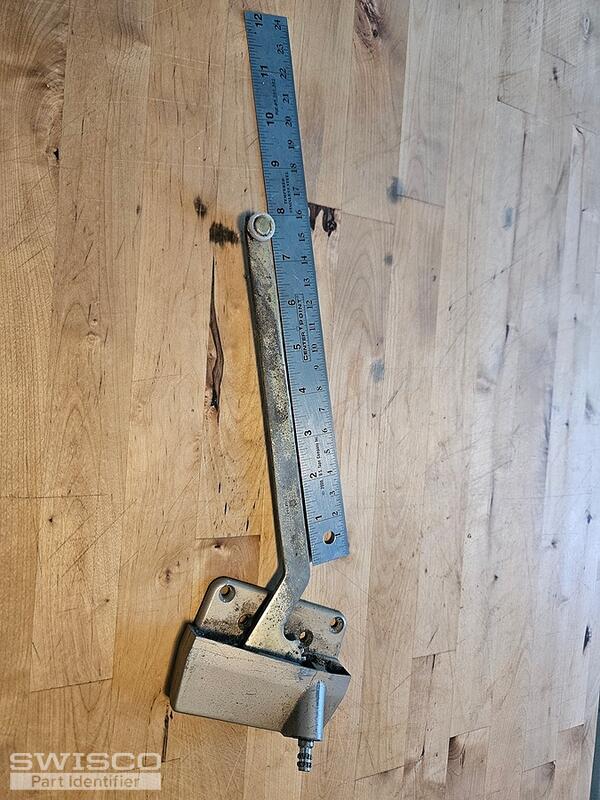

Casement Operator

The arm which connects to the stud on the window is longer than the current broken part. Everything else is exactly the same. Is there another part or do I need to install the new stud bracket somehow?

+2

Help me find this part please

I need the is part and the other part on the top of the window as well

+1

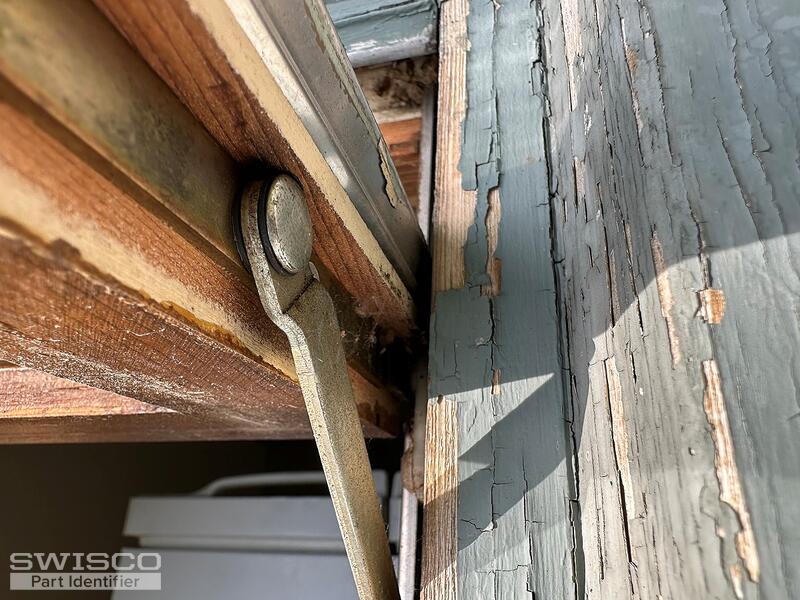

Casement window hinge needed

I have casement windows in my house and one of them is missing a portion of the lower hinge assembly, including the 10 inch long metal plate that screws to the windowsill, the mechanism that connects the bottom corner of the window that is supposed to pivot to that bar, and the arm that attaches to ... (cont.)
