replacement for Series 795 channel balances

A home owner from Madison, MS says:
May 15, 2020
I have Louisiana Pacific tilt windows. Bottom bracket broke, it is approximately 3" in length. Looks like the shoe is broken also. Measures 33" in length. Series 795 channel balance looks like the correct part. Can you please advise based on the attached photos if this is the appropriate replacement and what part I would need at the base of the window to fit in the new shoe?
Thumbnail of the uploaded file named IMG_3979.jpg
Thumbnail of the uploaded file named IMG_3980.jpg
Thumbnail of the uploaded file named IMG_3981.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 19, 2020

This isn't our Series 795. This looks more like our Series 770 balance, which is compatible with a 15-129 shoe. You'll need to compare the dimensions for this product to your old shoe to confirm.

I don't know what the bracket might be but it sounds like you're talking about a pivot bar. The 15-129 is compatible with a ton of different kinds. Can you show me an undamaged version of your original?
A home owner from Madison, MS says:
May 19, 2020
think you are right. photos attached

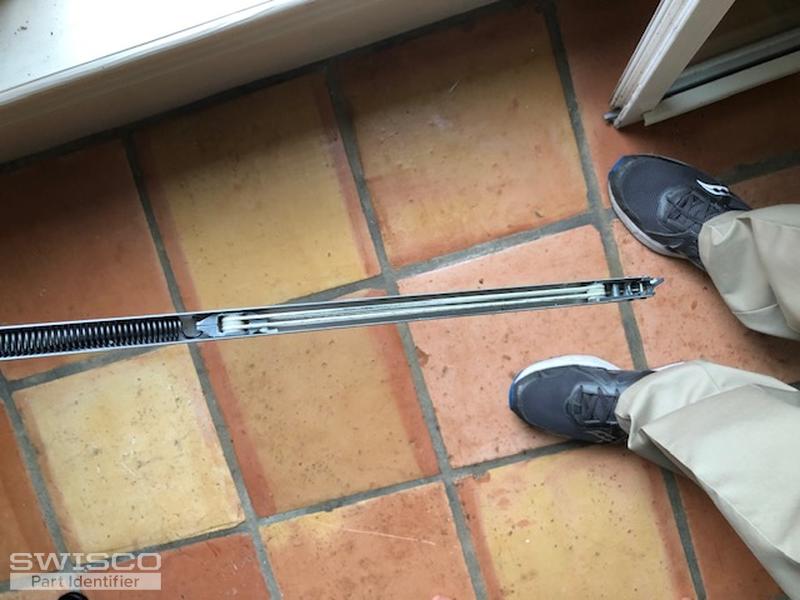

Thumbnail of the uploaded file named IMG_3991.jpg

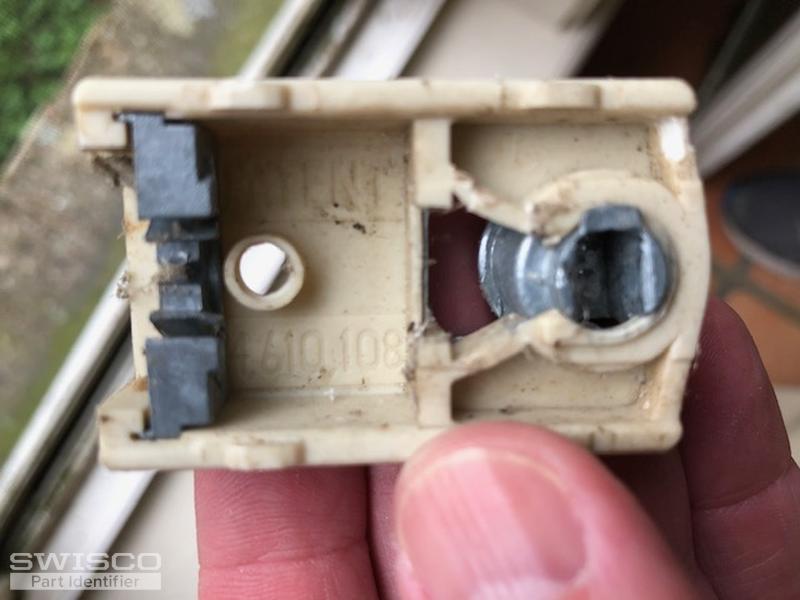

Thumbnail of the uploaded file named IMG_3992.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 20, 2020

 Great! These parts definitely look like our Series 770 balance and 15-129 shoe, though you'll still want to check the 15-129 dimensions to confirm. That's not something I can eyeball in a photo.

I still need to see the pivot bar to determine what that is.
Profile picture of Tom
Tom from SWISCO responded:
May 20, 2020

Thanks! That looks like our 26-241. Look it over and let me know what you think.
A home owner from Madison, MS says:
May 20, 2020
pivot bar attached

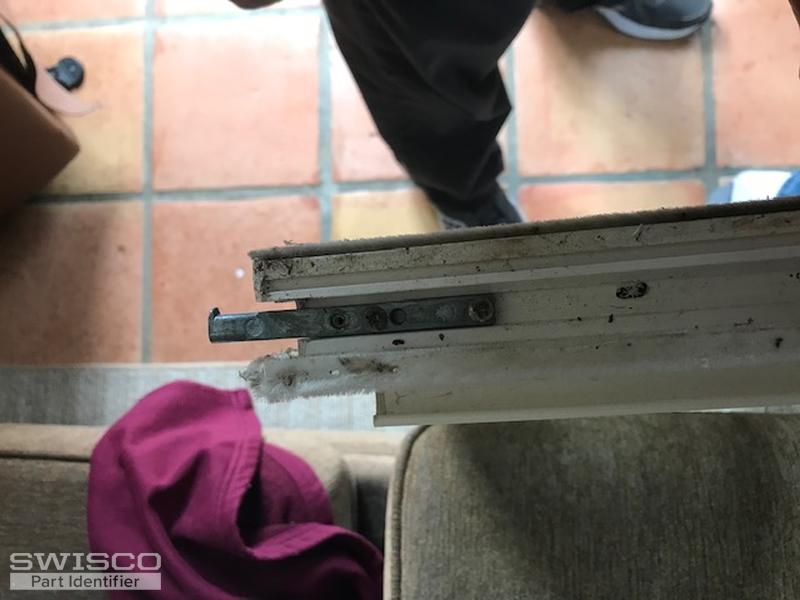

Thumbnail of the uploaded file named pivot-bar.JPG
A home owner from Madison, MS says:
May 20, 2020
Thanks. I ordered the 770, pivot shoe and pivot bars yesterday evening. Appreciate the help.
