replacement parts for living room windows

Hi Gad,

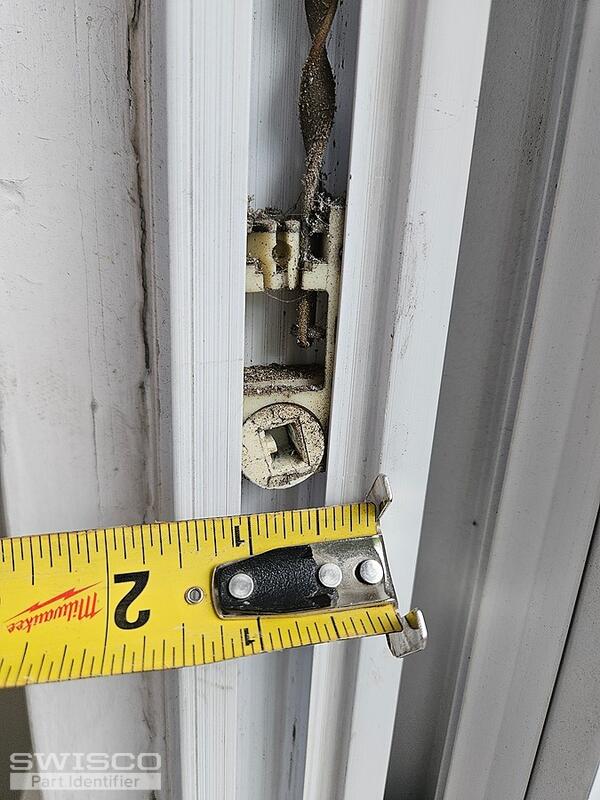

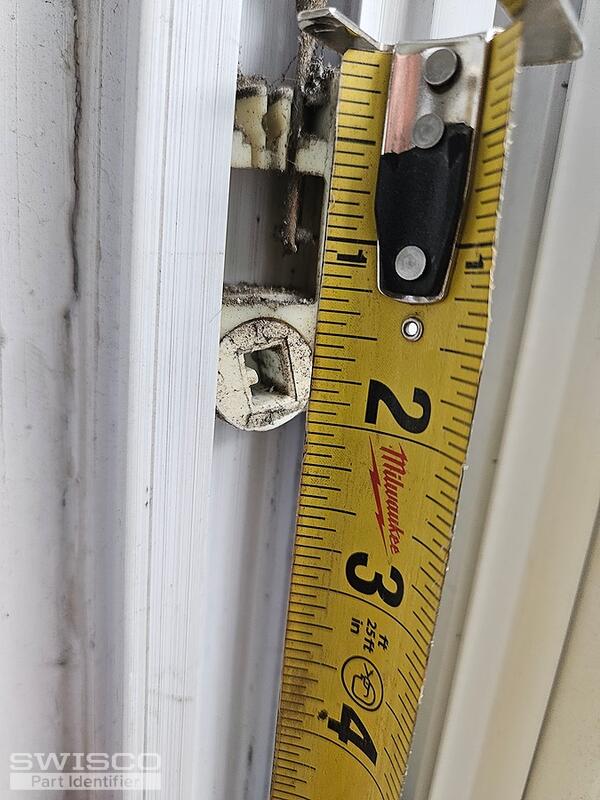

Thanks for your post! The pivot shoe you have here is no longer made but I believe our 15-046 Pivot Shoe will work to replace it. You'll need to remove the existing shoe from the window track to compare the width and the thickness.

This shoe is compatible with the 26-040 Pivot Bar.

Alternate image for 15-046

Dimensions for 26-040

We do not have an exact replacement for the internal latch you have pictured but we do have a replacement solution that may work. You'll need to use a surface mounted latch like the 26-228 and 26-229 to complete the repair.

We also have a variety of other latches that can be used if these are not a fit for the top of the sash, they can be viewed here.
