replacement pins for a mental bifold door

A quick learner from new york says:
March 11, 2021
My door fell off the tracks and is not staying on the track. not sure which pins to purchase to repair.

The door has a label that reads:
Full-Vu
Folding door
Leigh
Products INC.
Coopersville Michigan
Profile picture of Casey
Casey from SWISCO responded:
March 12, 2021

Hello,

We'd be happy to help but we would need to see photos of your bifold door pins removed from the door, along with dimensions specified in our guide here to determine what might work for you. Thank you!
A quick learner from new york says:
March 12, 2021

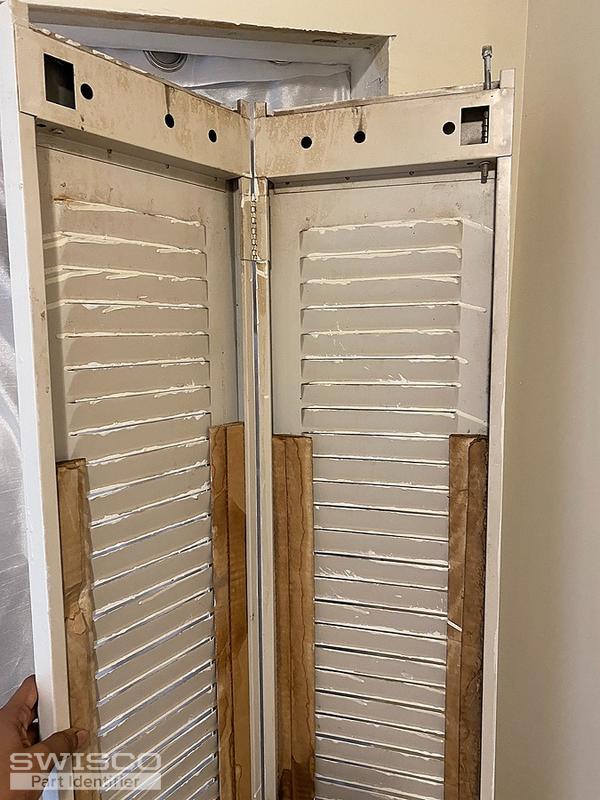

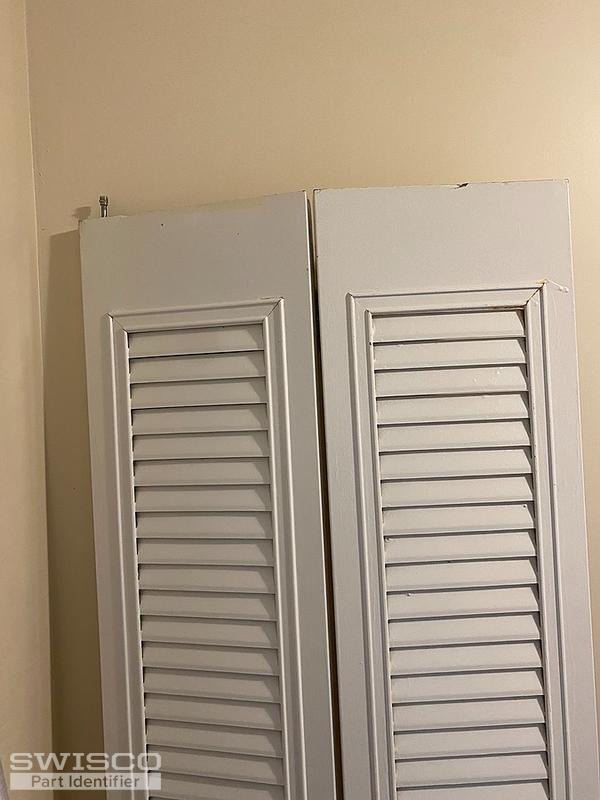

Will send another pic of the pin
Thumbnail of the uploaded file named 82258736-00B1-40B2-A605-AF8375AD8466.jpeg
Thumbnail of the uploaded file named C2B2A0EC-C316-4EFA-834F-0C3C709BB8C2.jpeg
Thumbnail of the uploaded file named 1843E4F4-4AE2-4557-B2D2-68AD9119D185.jpeg
Thumbnail of the uploaded file named F94961A2-E675-46AD-A5AC-3328728BC4A7.jpeg
Thumbnail of the uploaded file named E69FC820-AB00-4C63-A3D8-643570886DB6.jpeg
A quick learner from new york says:
March 12, 2021

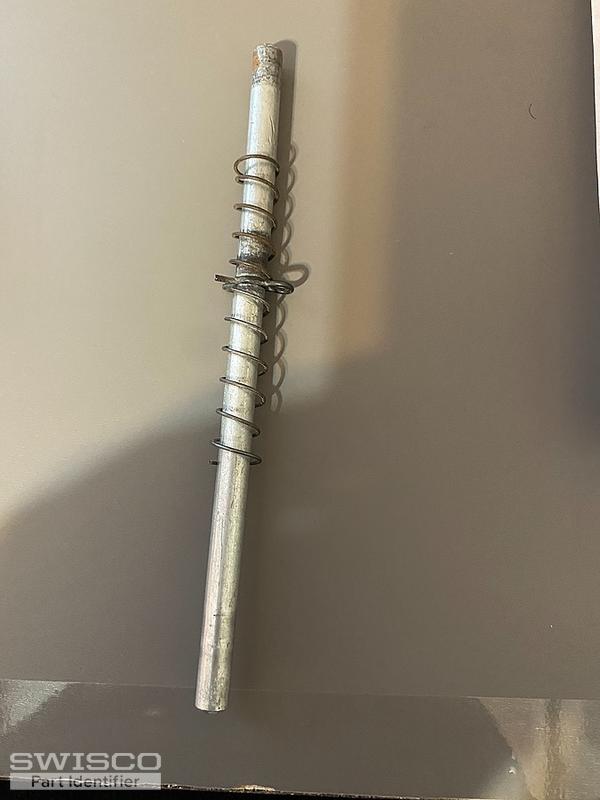

The pin is 4 1/2ins long
Thumbnail of the uploaded file named ADBAEE5C-1CC6-44B7-9A77-793447E46446.jpeg
Profile picture of Paul
Paul from SWISCO responded:
March 12, 2021

It looks like your top and bottom pivot pins might be alright. Your top and bottom guide pins either need to be replaced with our 21-054 or repaired with smaller pieces including the cap, 21-109, nylinder, 21-150, or cotter pin, 21-158.
A quick learner from new york says:
March 12, 2021
Thank you
Bifold Door Top Pivot and Guide Pin, Leigh
Bifold Door Top Pivot and Guide Pin, Leigh
21-054
$7.57
Bifold Door Pin Cap
Bifold Door Pin Cap
21-109
$1.42
1/4" Nylinder
1/4" Nylinder
21-150
$0.39
Cotter Pin
Cotter Pin
21-158
$0.28
Spring
Spring
21-250
$0.67
Bifold Door Pivot, Leigh
Bifold Door Pivot, Leigh
21-062
$5.97
