sash window hinge and operator replacement

Question

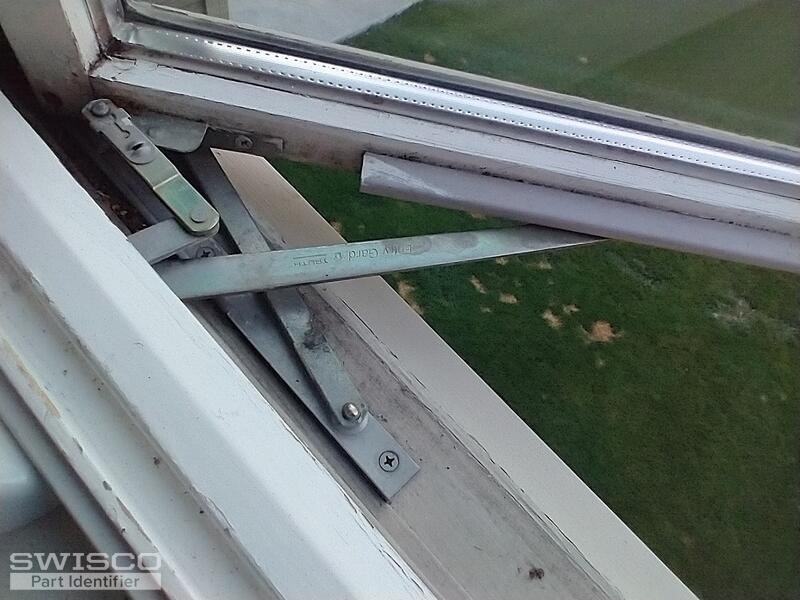

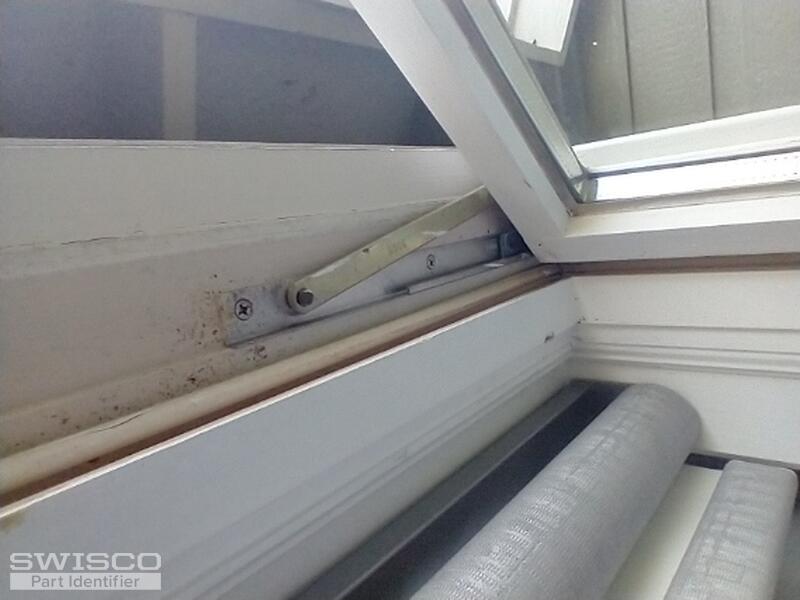

hardware is truth entry gard. these windows are 1994 vintage and i am told they are posey brand windows. the window has been used hard, blown open in past wind storms and do not operate well. hinge plates and arms have been bent. i dont know if operator requires replacement but feel like i should replace all operating hardware. what hinges and operator do i need?
thanks,
jim

Lauren · Accepted Answer

Hi Jim, thank you for posting,

Please start by reviewing the style and dimensions of the 36-048 2-bar hinge set with a 10" sill track. Please note that both the top and bottom hinges will need to be replaced at the same time.

For the operator, review the dimensions of the 39-333 and 39-334 or the 39-155 and 39-156. The main difference between these two operators is the length of the short link arm. Compare to your original to confirm the best fit!

Let us know if you have any questions!
