simonton 5500 window

Question

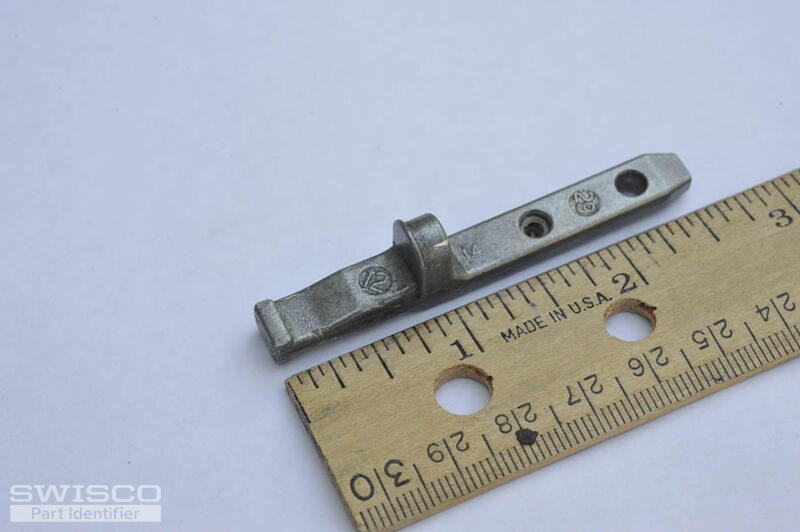

The pivot bar on my Simonton 5500 double hung is broken. Please help me get new hardware. The window is 18 pounds.Shown are the spring with #11 stamped on it as well as the pivot bar and shoe.

Thanks, Jim

Jasmine · Accepted Answer

Thanks for reaching out to us! The Simonton shoe and pivot bar you have pictured here are no longer made but the good news is we do have a suitable alternative that should work well as a replacement.

Take a look at the 15-259. Carefully compare the dimensions to your existing shoe to determine if it would be a fit. This shoe is compatible with the Series 159 Coil Balance. Since your existing coil is marked with an 11, I would suggest using the S159-11 coil spring. The 15-255 Coil Single Support is used to cover the coil spring.

Dimensions for 15-259

Your existing pivot bar will not be compatible with our coil balance, so you'll need to replace it with the 26-083 Pivot Bar.

Detail of 26-083
