simonton window balance

A quick learner from kentucky says:
March 22, 2021
I have two windows that have the same balance damage - the covers are broken and the screw is missing that holds the covers in place. The springs appear to be ok and the shoe does not appear to have any damage. Would like replace with new balance - also need the screws that would attach the balance in place. the shoe is 0.529in thick 1.240 wide and 1.434 tall. We put the window on the scale and was 19lbs . Thanks, Gary
Thumbnail of the uploaded file named 20210322_104416.jpg
Thumbnail of the uploaded file named 20210321_131405.jpg
Thumbnail of the uploaded file named 20210321_131357.jpg

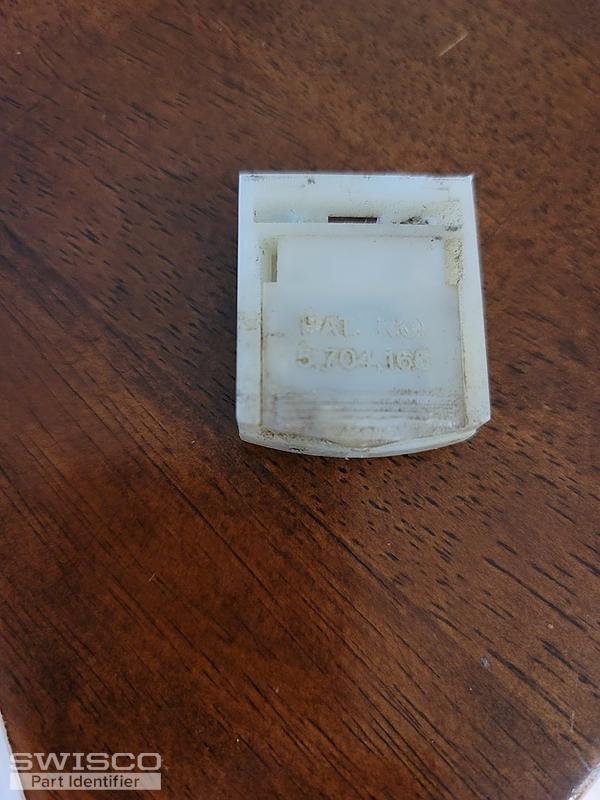

Thumbnail of the uploaded file named 20210322_092419.jpg

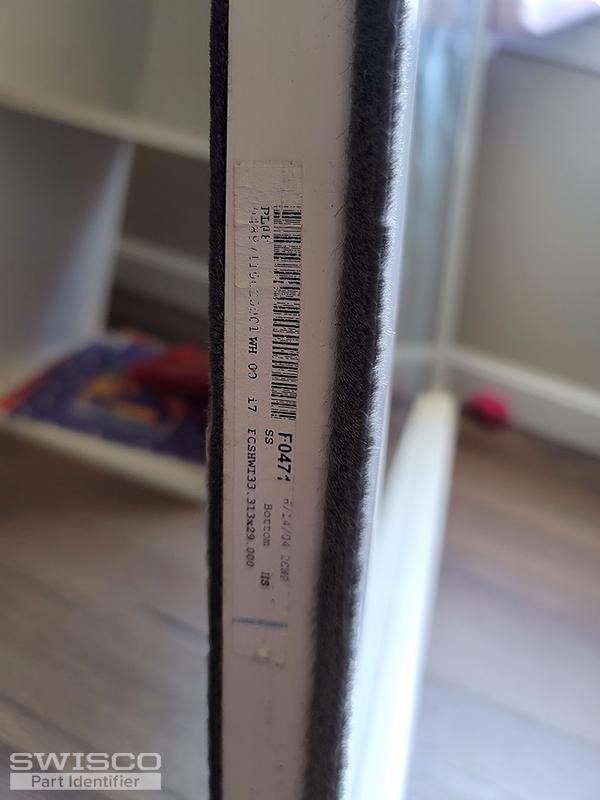

Thumbnail of the uploaded file named 20210321_133411.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 24, 2021

Hello there. This looks like a 15-199 Pivot Shoe, which uses either 1/2" thick Series 160 Coil Balances or the 3/8" thick Series 165. Please confirm the thickness of your old coil springs, and we'll quickly narrow down what you need.
A quick learner from kentucky says:
March 24, 2021
The springs are 3/8. I think I can use the current springs, I just need the covers, will 15-205 work?
Profile picture of Bob
Bob from SWISCO responded:
March 24, 2021

Perfect, thanks. 3/8" thick springs mean you have the Series 165, and so yes, the 15-205 Triple Support is what you want. If the old balances appear undamaged there's no need to replace them. You'll need to use a #8 pan head screw to install these new covers (not included). Let me know if you have further questions.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
