simonton window shingle hung balance

Home Owner from Easton, PA

Oct 13, 2020 3:35 pm

I don't have a number for the white plastic part in #150902.

The coils have
#5.0 39"
PAT523208 (not sure if this is patent number)

The other part and it may be a patent number as well. 4.610.108.
The number on the window sticker is 24340040/07 35.50 59.50 PFSHMH F0876.

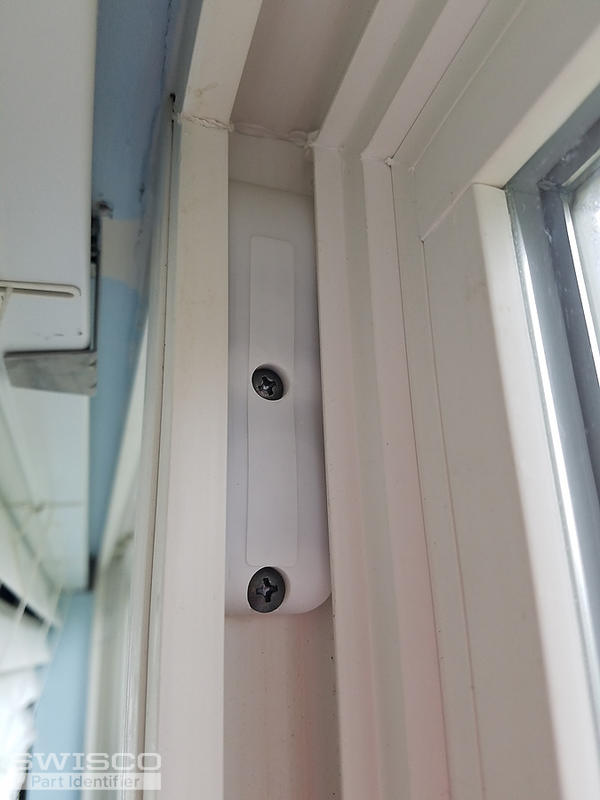

I am not able to locate part numbers on the items in the picture.

Thank you in advance for any assistance in locating replacement parts!

4 user uploaded images

5 Replies

Home Owner from Easton, PA

Oct 13, 2020 3:45 pm

The tilt window brake shoe is 1/2 inch thick and the width is 1.25 inches

Tom from SWISCO

Oct 16, 2020 11:58 am

Your pivot shoe looks like a match for our 15-111, which is designed to be used with the Series 160 coil spring. Look these two parts over and let me know if you have any questions.

Home Owner from Easton, PA

Oct 16, 2020 1:11 pm

The coil measures 3/8" wide. Will the S165-5 work in the pivot shoe 15-111 and for the coil support would 15-204 be the choice?
Thank you!

Tom from SWISCO

Oct 16, 2020 2:22 pm

Thanks for confirming! If your shoe is 3/8" thick, then the Series 165 is definitely the way to go. I believe it will still work with that same shoe without issue.

The cover would be the 15-204, yes.
