single hung vpi windows

A contractor from Fairfax, CA says:
October 14, 2021

we need replacement parts for our single hung vpi windows. we need springs, connectors and dowels. we also need directions on how to remove and install the new parts without cutting the frame. We are the homeowners

thanks

connie

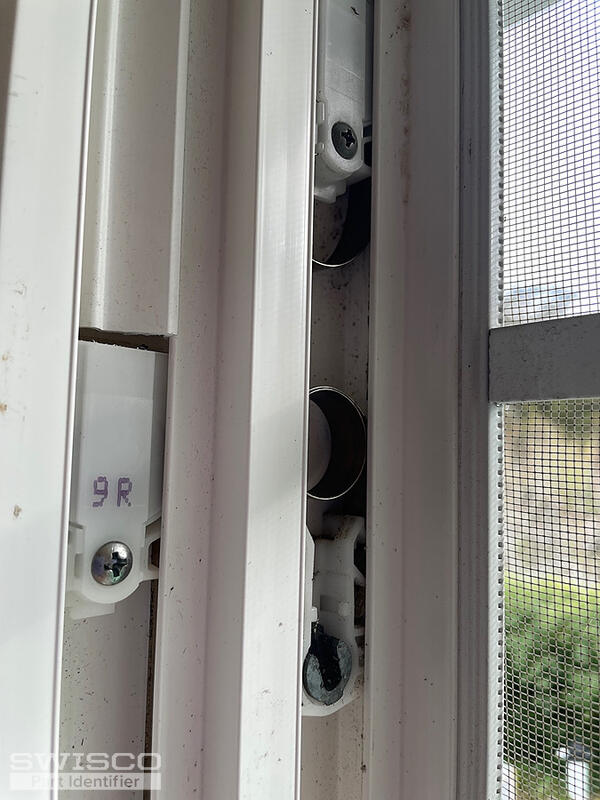

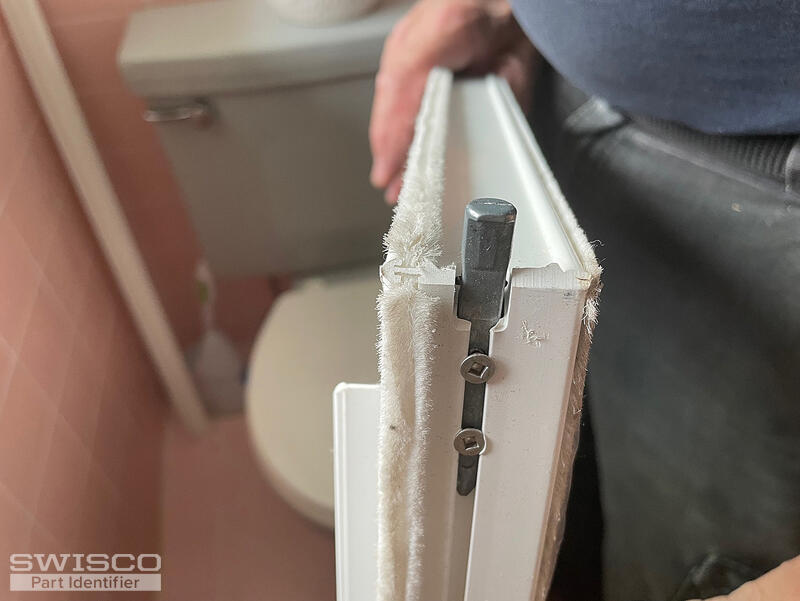

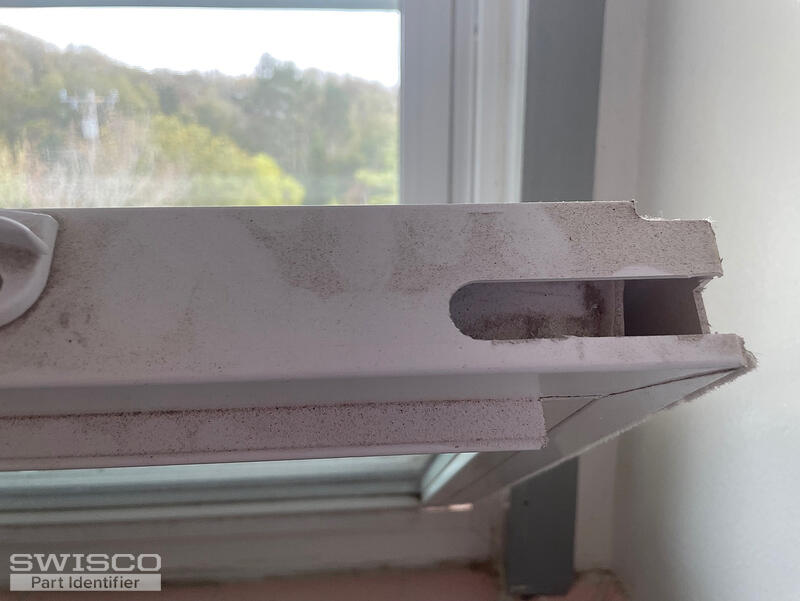

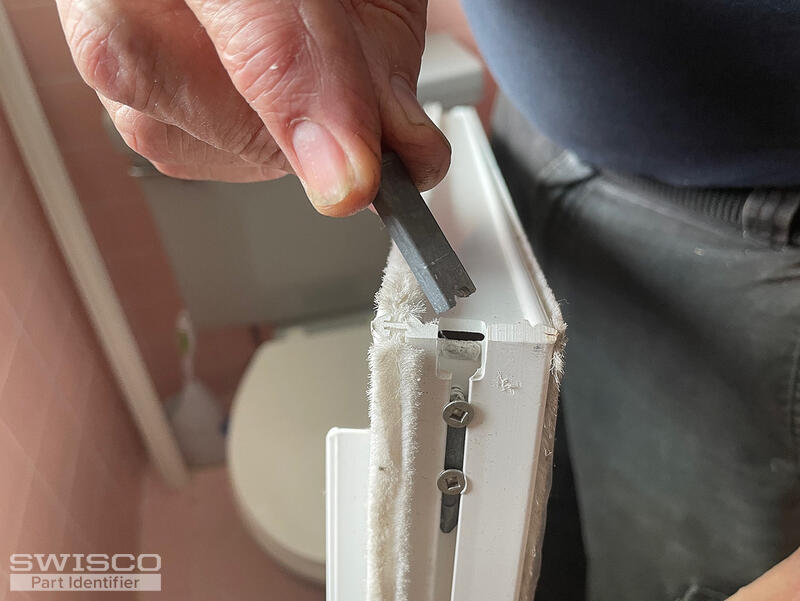

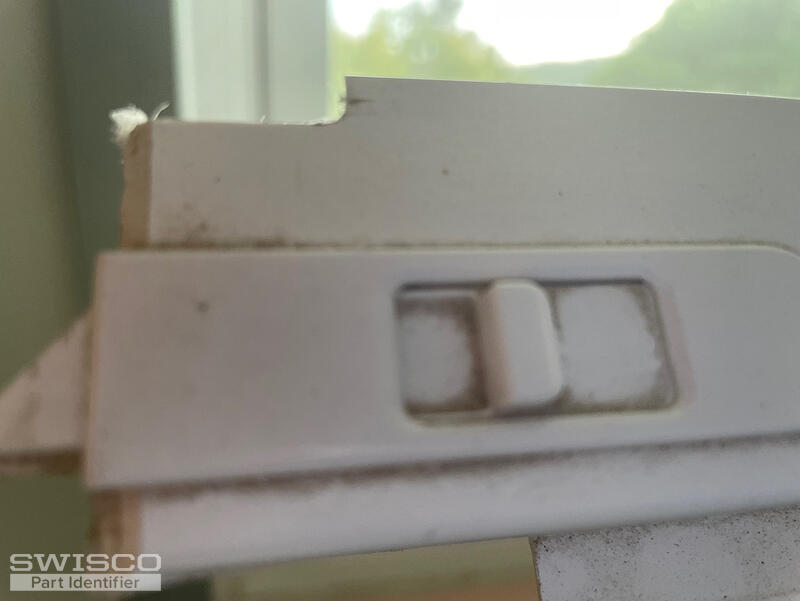

Thumbnail of the uploaded file named 89F356C3-7790-4D91-96EA-5D60CDE8DA71.jpg
Thumbnail of the uploaded file named A9CDD09A-A19F-497A-B66E-DF3D77B698D1.jpg
Thumbnail of the uploaded file named 61C9A63C-8DC3-481A-B266-6050504603C8.jpg
Thumbnail of the uploaded file named C0879039-0F93-4602-BC1D-677E81FD12CB.jpg
Thumbnail of the uploaded file named B1A1B927-30D9-433C-A2BB-907FEE6309CE.jpg
Profile picture of Emily
Emily from SWISCO responded:
October 19, 2021

Hi, Connie.

Thanks so much for your patience during our busy season. Take a look at our 15-215, which uses the Series 140 coil balance assembly. As for the pivot bars and tilt latches, carefully review the dimensions for our 26-398 and 26-405 pivot bars, along with the 26-243 & 26-244. Remove the original undamaged hardware from the window and see if these match what you need. I've also related some videos on this page that you might find helpful.
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Quick-Tilt Pivot Shoe Sash Carrier
Quick-Tilt Pivot Shoe Sash Carrier
15-215
$3.38
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
How to replace a window pivot bar
How to replace a window pivot bar
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Replace a Window Tilt Latch
How to Replace a Window Tilt Latch
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
