sliding door latch

Home Owner from AB, NC

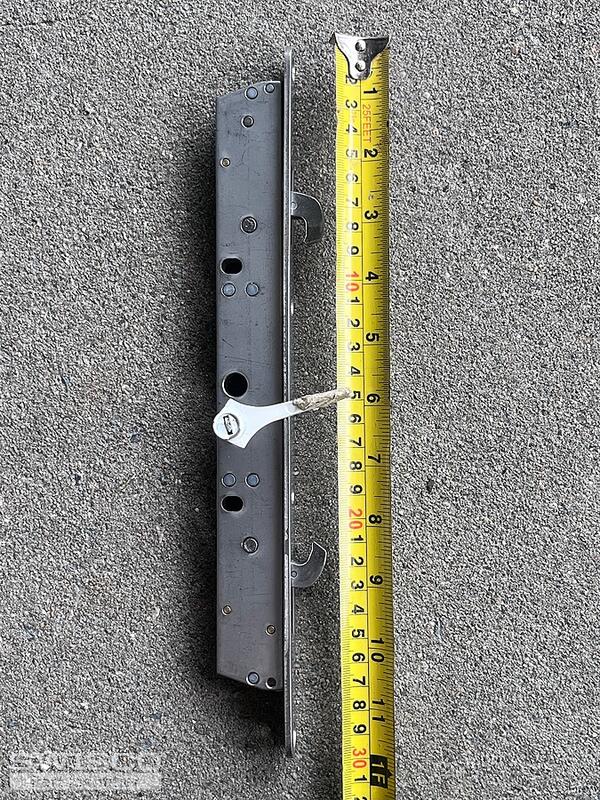

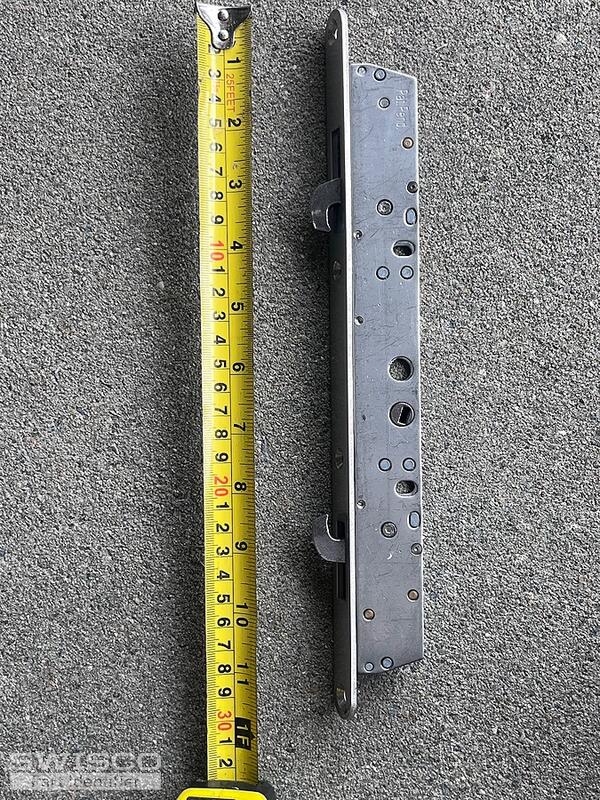

no idea the brand. did not see similar latch on you site. 82-259 not quite right. my latch paw pins are 5-3/8"c2c, housing ~10-1/8", and cover plate, as you can see from pics is 11-3/4" with mount screws 11" c2c.
If indeed you have nothing, if you can ID the brand?
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We unfortunately don't sell this exact mortise. I think our 82-265 will work, however, as long as you also use the 82-249 keeper (sold separately). This has the same installation hole spacing at 11", and as long as you use the new style keeper it won't matter if the hook position matches the old one. Look this part over and see what you think.
