small kitchen window parts

Landlord from 48306

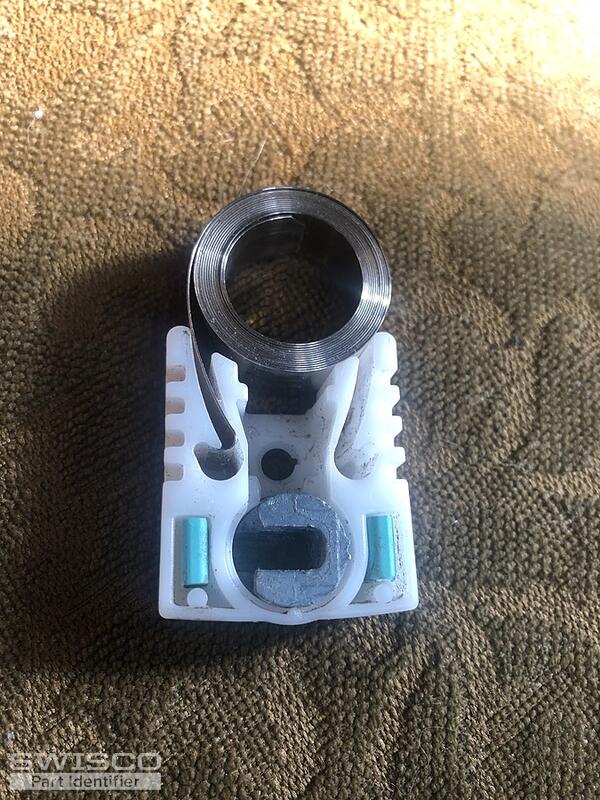

This is from a small kitchen window.

I need to replace both left and right sides (they broke completely). The photos are of a window that is not broken and working fine.

I tried installing hardware that wasn't exactly like this - was very difficult and the coil kinked up on both sides so I'm starting from scratch again...and need to purchase hopefully this exact type.

Is it possible for you to send me a video on how to install as well?

Thanks

Stephan

4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. The pivot shoe looks like our 15-215. This is used in Series 140 Coil Balance systems. These systems are nice because they come as a whole assembly; you just need to know what spring weights to select. Give me the exact weight of your window sash and I can work that out for you.
