this 2" part

Home Owner from Golden Valley, MN

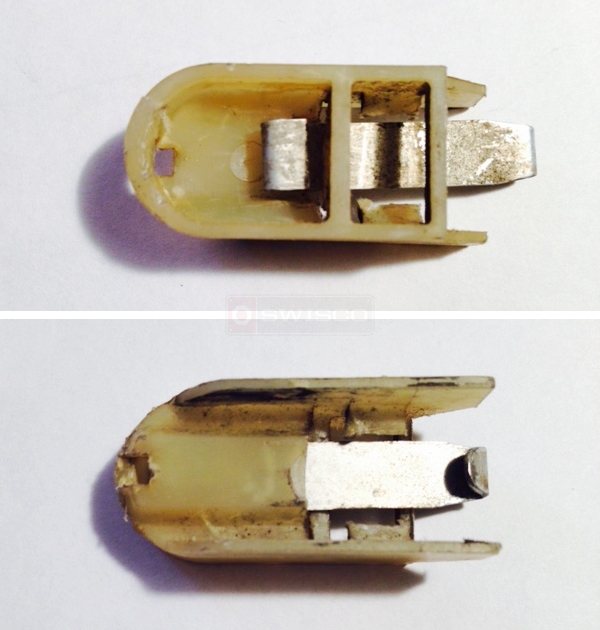

This is a 2"long, 3/4" wide part possibly called a terminal clip, tension cord hook or channel balance clip.
Via a hole at the top, it attaches to the end of the tension cord that runs through the channel balance. The metal clip then slips into a groove in the sash allowing removal of the window from the sash. The plastic housing has broken on 6 of my windows. The cords are still in the channel. I just need replacement clips.
Can you help? I have no manufacturer's name on the windows. There is a pat. #
on my sashes if that would help.
User submitted photos of window hardware.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
We don't have an exact match, but see our 62-105 and 15-198 and let me know if either of these could work.
Home Owner from golden valley, mn
You don't have anything with a housing similar to the plastic one that my hook is in, correct? If not, could you give me the dimensions for 62-105?
In order to attach it to the cord, there needs to be a hole in the end opposite the hook.
Paul
Paul from SWISCO
SWISCO
Expert
I'm afraid we don't have anything with that housing, no. We've seen it in the past but never had any luck finding a match. As for the 62-105, the hook is 9/32" wide, 7/8" tall and the hole is 1/4" from the bottom up.
