tilt latches

Professional from Illinois, USA
We were sent to your website by Great Lakes Window out of Toledo, OH to source tilt latches for a 43.75wx57.50h double hung window that they no longer manufacturer. If you could please provide us with the part numbers so we can service our customer and order these, I'd appreciate it. Thanks.

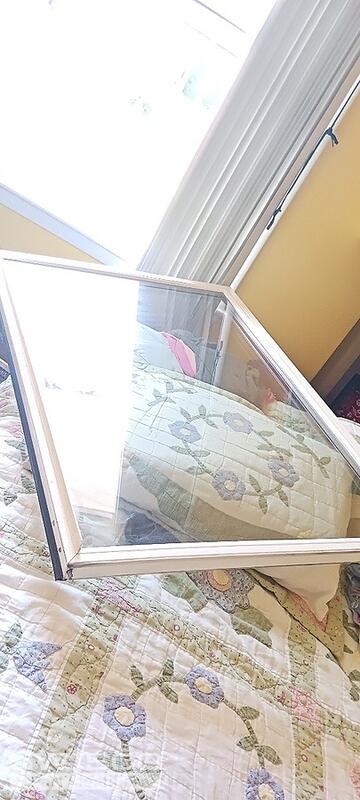

4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

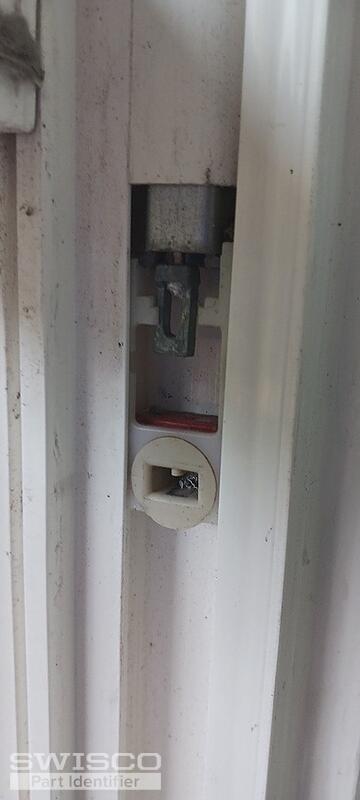

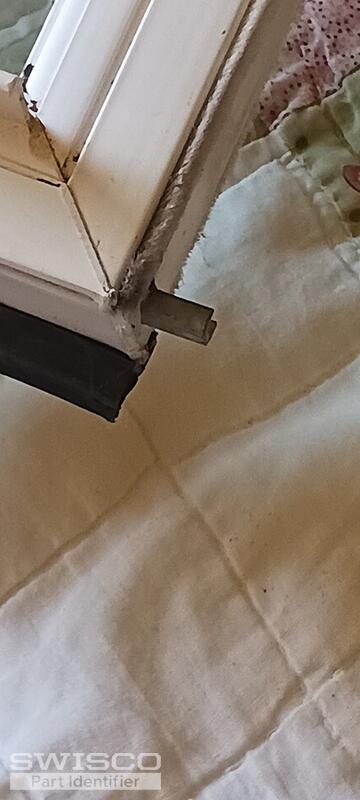

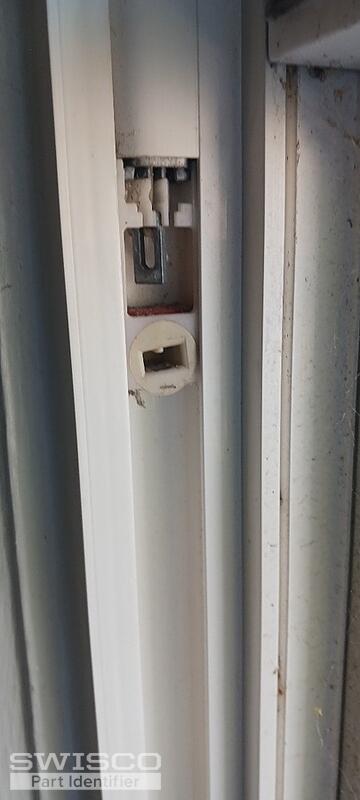

Hello! We carry each of the three parts you show in these photos (pivot shoe, pivot bar, and channel balance), but I do not see tilt latches. Would it be possible to see those? It's not possible to identify the tilt latch based on the balance hardware, unfortunately.

As for the parts you do show, my recommendations would be the 15-046 pivot shoe, 26-040 pivot bar, and Series 770 balance. I highly recommend that you review the dimensions we show in each case to verify that they match. If they don't, let me know how they differ and I'll see if we have a better option.

Alternate image for 15-046
Alternate image for 15-046

Alternate image for 26-040
Alternate image for 26-040

Professional from Illinois, USA

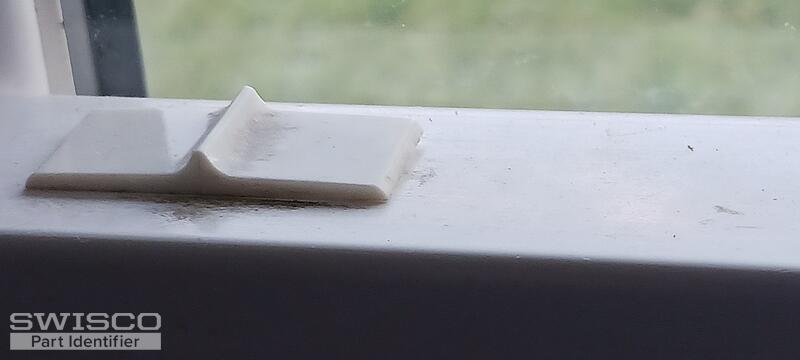

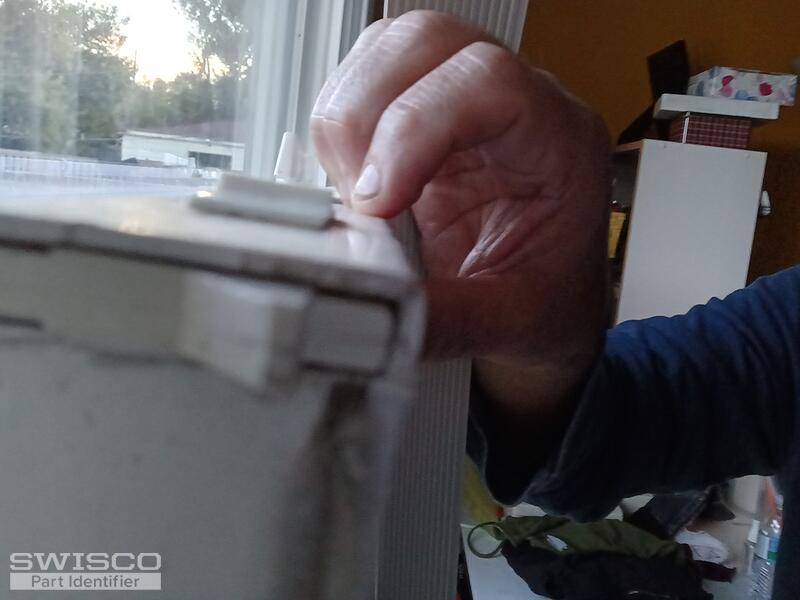

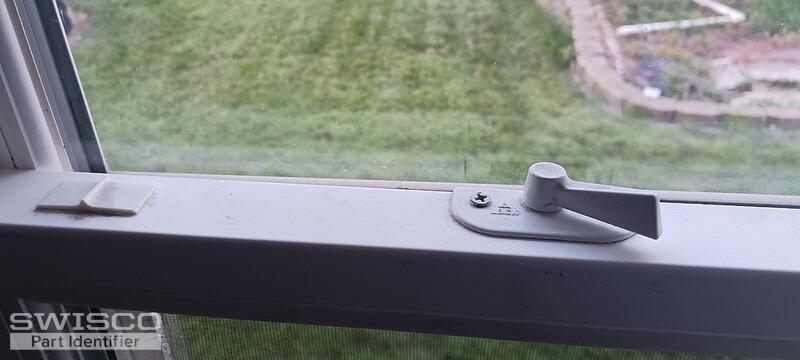

These are the additional pictures our customer sent to us. This is also for a single hung window in case that was not mentioned.
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks. This appears to be an internal tilt latch setup, though I unfortunately can't identify this as long as it's still installed. Too many vital details are missing.

There is also a chance we don't even sell a match for this. Our internal tilt latch selection is limited. You can see our full selection here. You will ultimately need to remove the original to verify whether anything we sell can be used as a replacement.
