tilt window replacement parts

Question

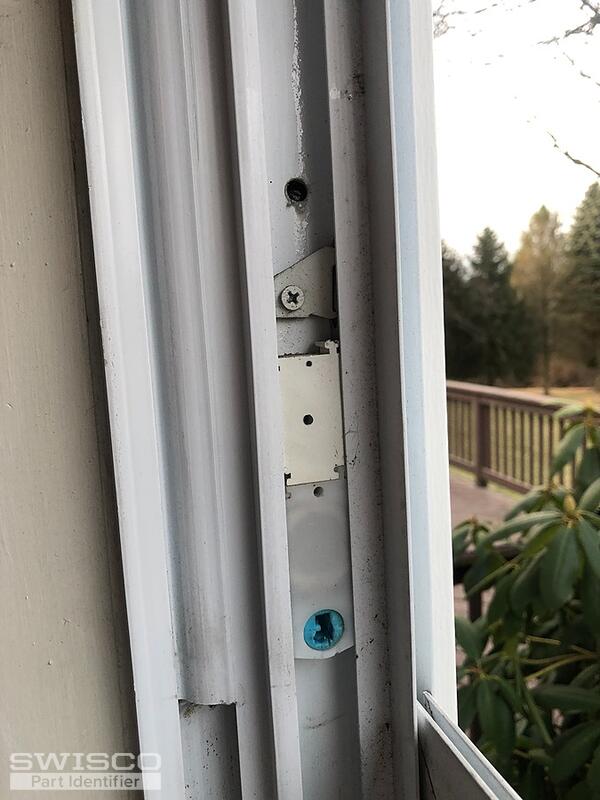

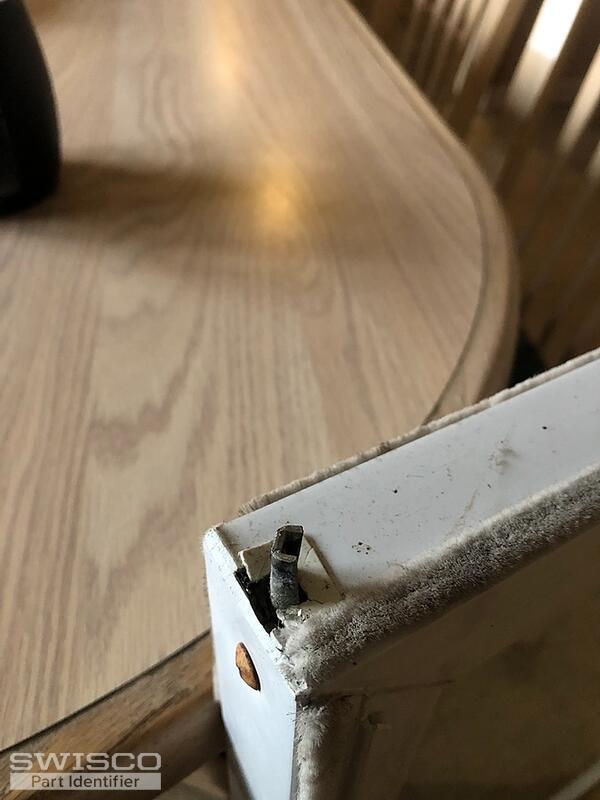

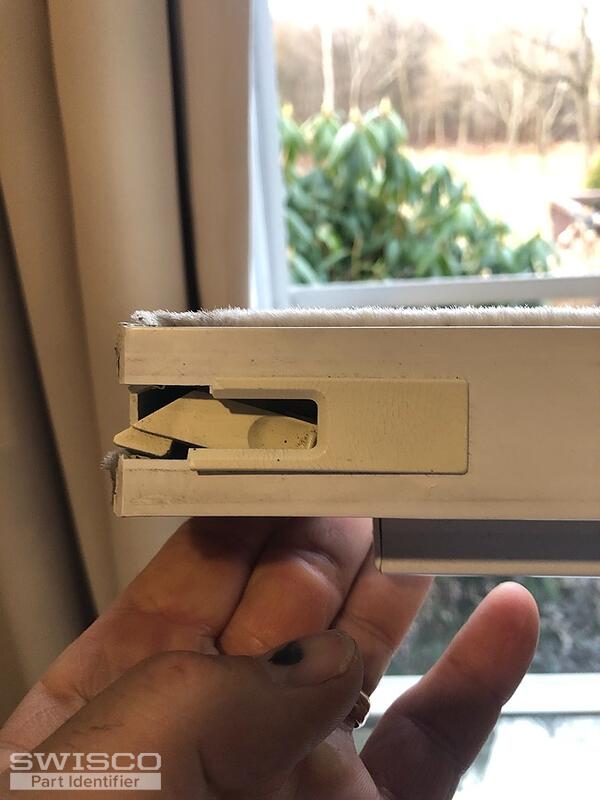

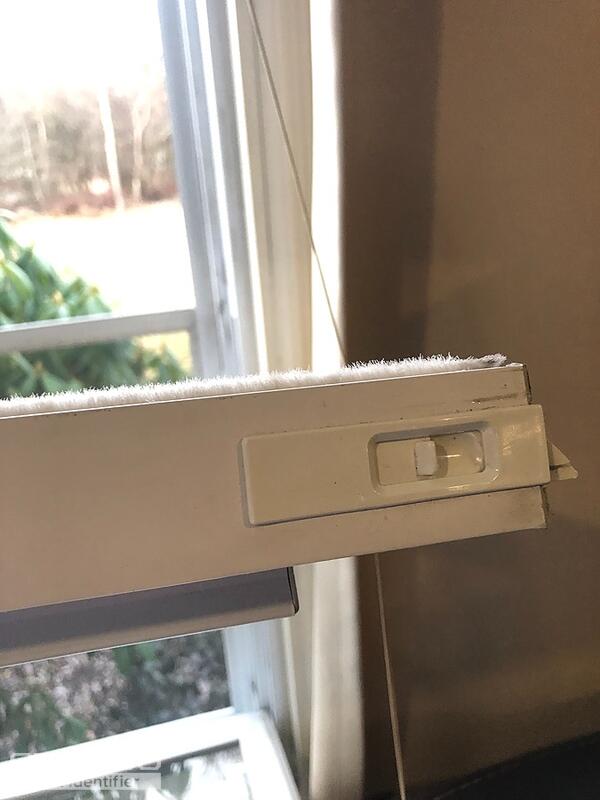

I have a double hung window 33"x47" and the top section has a broken surface mounted tilt latch and the bar that goes into the valance is also looks bent. the Valance spring also appears to be broken. Both are on the left side when facing window from the inside. I would like replace both bars and both springs on the top window as well as the one tilt latch.

I do not see a model number of this window on any part of it, that I could see. Can someone get back to me so I can order the proper parts, thank you, Mike

Emily · Accepted Answer

Thanks for reaching out to us! Based on what you show in these photos, I recommend taking a look at our 26-243 and 26-244 tilt latches along with the 15-087 pivot shoe which uses the Series 180 coil springs. We also have the 15-086 tandem coil housing and 16-024 mounting bracket in case you needed those.

I can't be certain about the pivot bar with it installed but you can start by comparing your specifications with our 26-063 and 26-040.
