triple coil balance 530 constant force balance coils stamped 10

Question

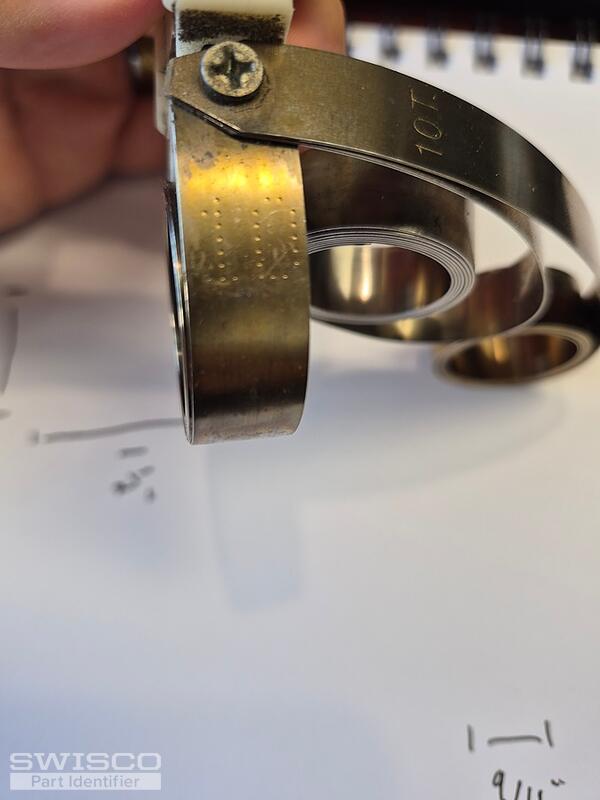

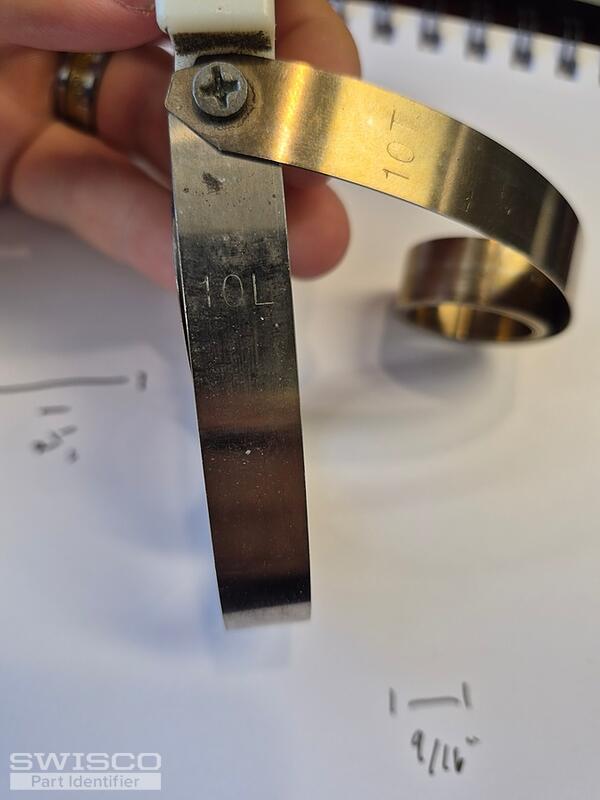

I am looking for a replacement for this triple coil balance. I've uploaded pictures including dimension. all three coils have a 10 stamped on them. I've found similar balance/shoes with these dimensions, but I am not sure about compatability.

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! We do not have this exact coil shoe but we're fairly confident the 15-199 will work to replace it. Carefully look over the dimensions below and compare them to be sure.

The compatible pivot bar is the 26-378.

Alternate view of 15-199

This shoe is compatible with either the 1/2" wide Series 160 Coil Balance or the 3/8" wide Series 165 Coil Balance. To confirm the correct coils for the repair, I'll need to know the width of the your existing coils. This will determine the exact springs needed for the repair.

Please let me know if you have any questions.
