Channel Balance ID

Quick Learner from Florida

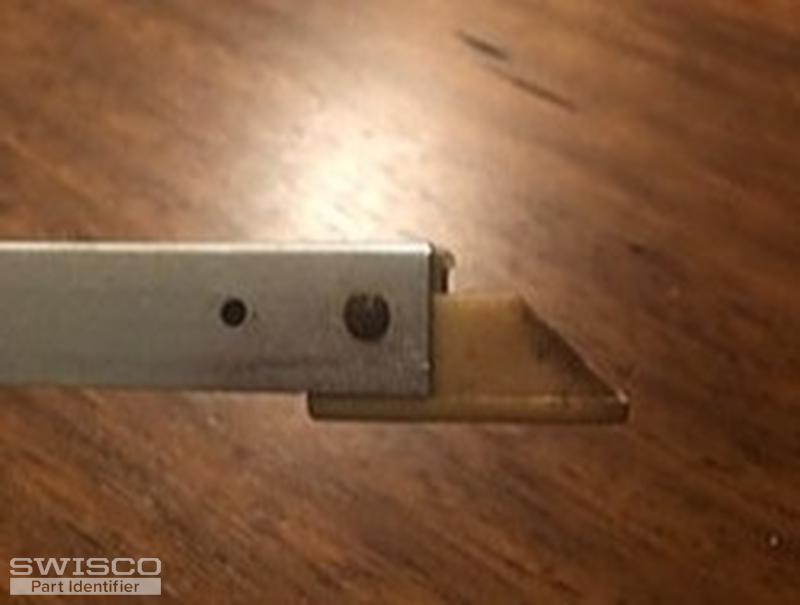

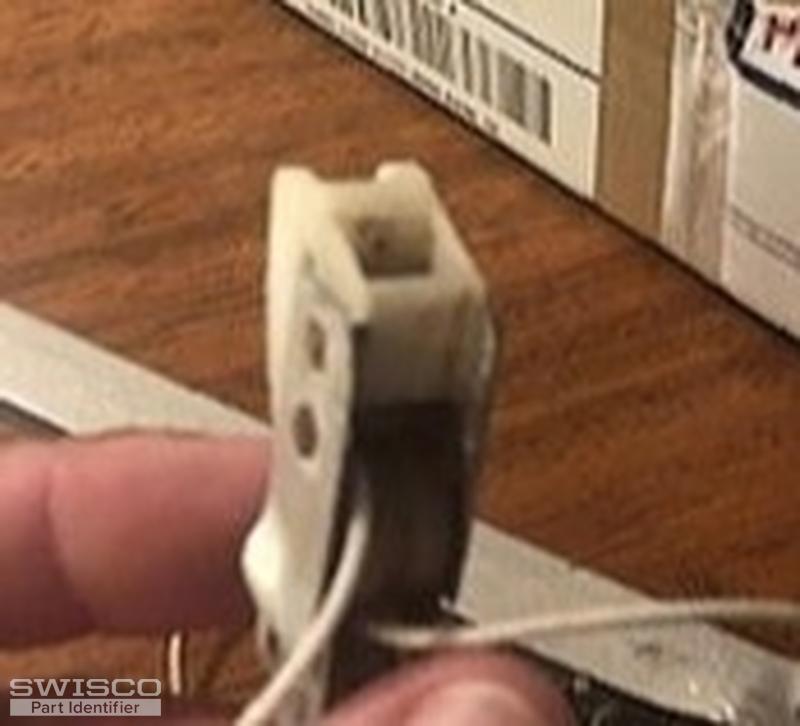

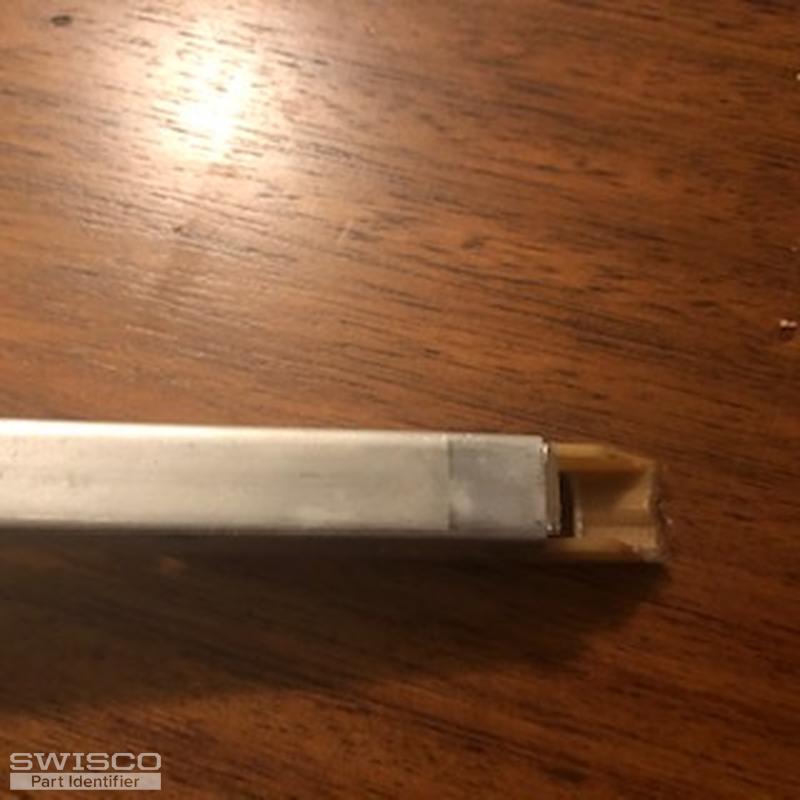

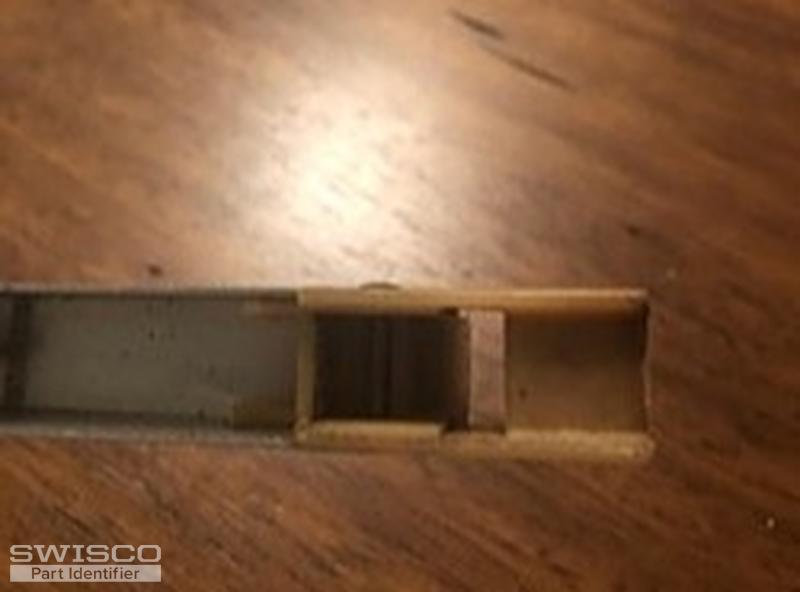

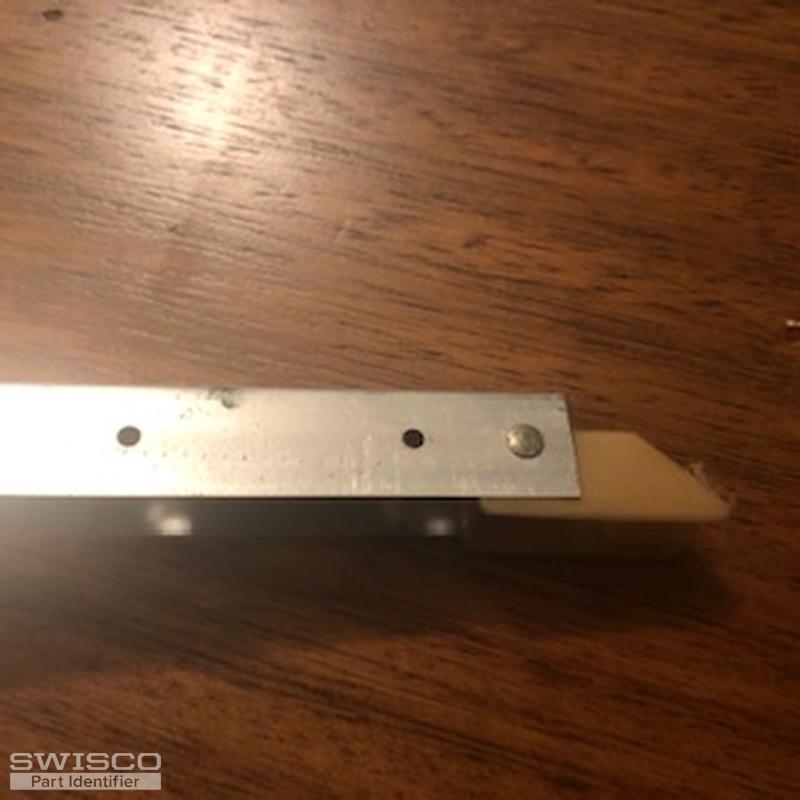

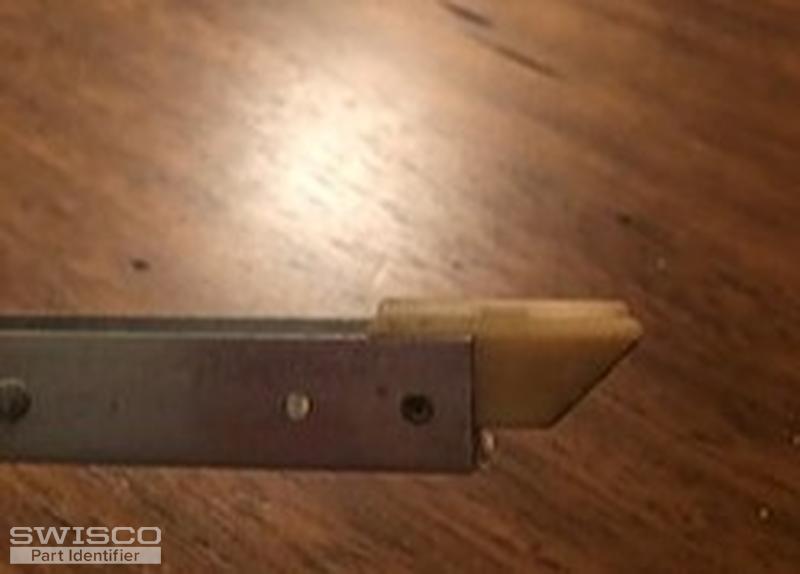

I need to know which window balance to order
5 user uploaded images
4 Replies
Quick Learner from florida

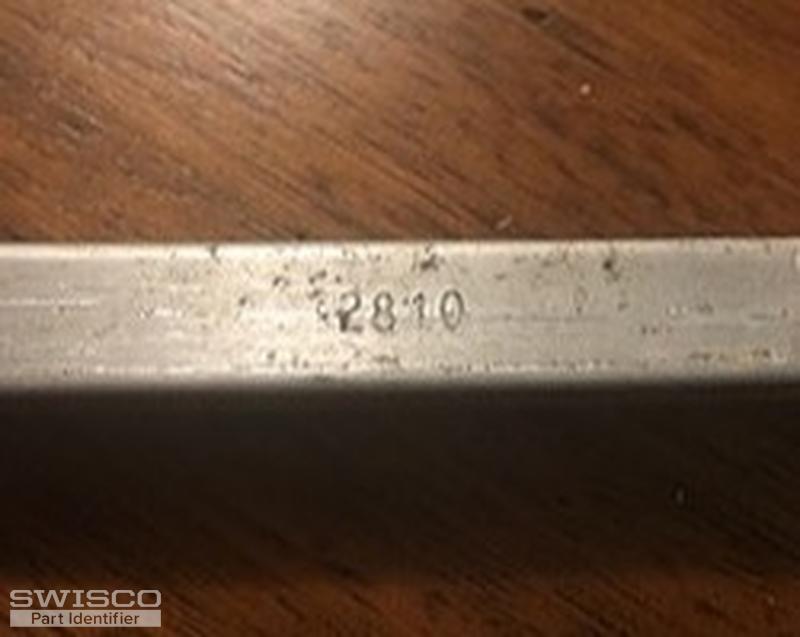

I need to know which 2810 to order
5 user uploaded images
Quick Learner from Florida

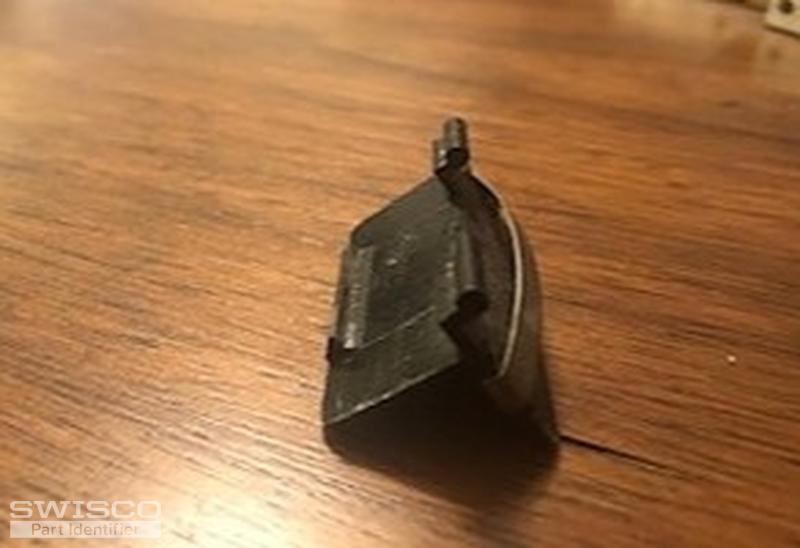

I need to find out which window lock this is
1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. For your balances stamped 2220, make sure the metal channel, not including the nylon fittings, is 23" long. If so, see our S351-23 or S390-23. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You'll need a stamp option of 2220. For the balances stamped 2810, make sure the metal channel is 29" long. If so, see either our S351-29 or S390-29. Again, the only difference between these two balances is the 'depth' of the bottom nylon shoe. You'll need a stamp option of 2810.

For your sash lock, see our 90-317.
