window crank

A home owner from 07052 says:
Hello,

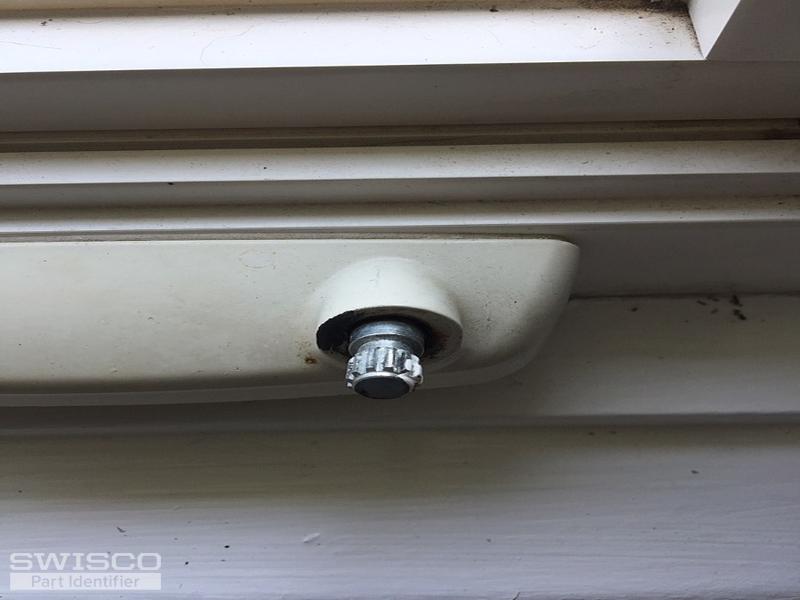

We have some windows that open with a crank 3 of them are no longer functioning properly so I need some parts. Where the handle attaches, some of the little ridges are damaged. And I am missing one crank handle as well. This part of the hardware seems to be the main issue, but hard to tell without being able to crank open the window.

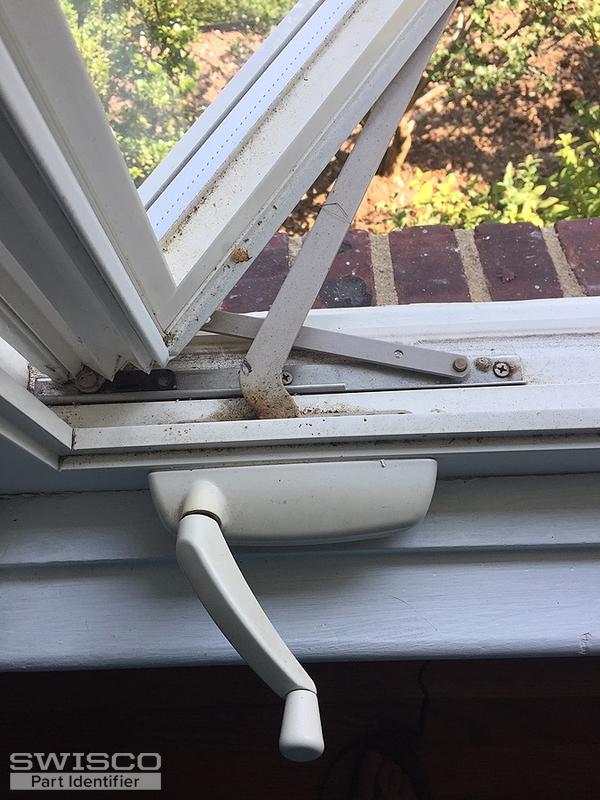

Would you be able to help me find the right part? The long arm of the window opener is 12" and the short one is just under 7". The length of the box with the crank on it is 5". I couldn't find any brand name or other identifying marks. House is 1957, but windows are more recent than that, if older.

Thank you!
Phaedra

Thumbnail of the uploaded file named window-crank-front1st-1.jpg
Thumbnail of the uploaded file named window-crank-front1st-2.jpg
Thumbnail of the uploaded file named window-crank-front1st-3.jpg
Thumbnail of the uploaded file named window-crank-front1st-4.jpg
Thumbnail of the uploaded file named window-crank-front1st-5.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hi Phaedra. The operator might be our 39-014 and 39-013, but you'll need to remove and compare to confirm the dimensions match. For a new handle, see our 39-114L. If you need a new hinge set, see the 36-048
