window pin is broken

A home owner from Bonita Springs, Fl. says:
March 5, 2014
The pin that connects the moving window to the pivot shoe has broken on many of my windows. What should I order? Is the stub romovable and replacabel? I appreciate your help. Stephen
Profile picture of Paul
Paul from SWISCO responded:
March 6, 2014
We may be able to help you, but I'm not sure what you should order. Can you please take a few pictures of the pin in question? That will help us find a good match.
A quick learner from Bonita Springs, Florida says:
March 7, 2014
Reference numer D6306. Thank you for the response. I am sending the requested pictures.

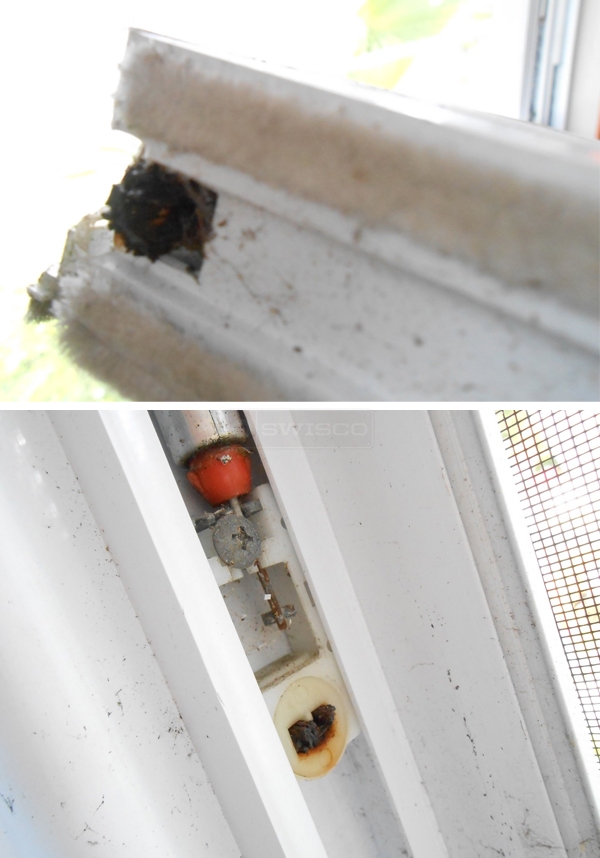

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
March 10, 2014
Thank you! The pivot shoe looks similar to our 15-046, but you should carefully compare the dimensions we show to your own just to make sure they match. As for the pivot bar, it is very hard to say without seeing an undamaged sample. I think it could possibly be our 26-040. Does that look familiar?

You may also want to look at our Series 600 balance, in case you ever need to replace that, as well.
A quick learner from Bonita Springs, Florida says:
March 13, 2014
RE: D6306 and D37460
Thank you for the information. I think that I could make 26-040 work for me, but I am sending more information to you in the hope of finding an exact match.

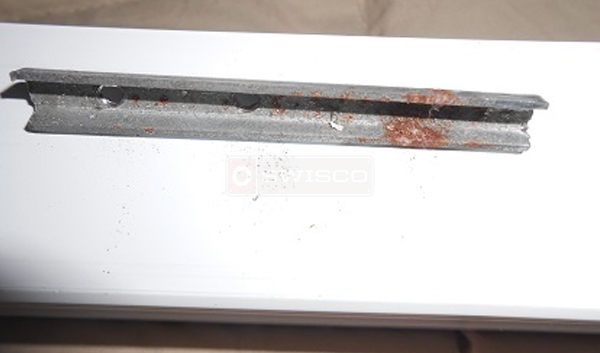

User submitted a photo of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
March 14, 2014
Perfect! Yes, I think our 26-040 looks very close. Just make sure to triple check your dimensions to ensure that they match.
A quick learner from Bonita Springs says:
March 14, 2014

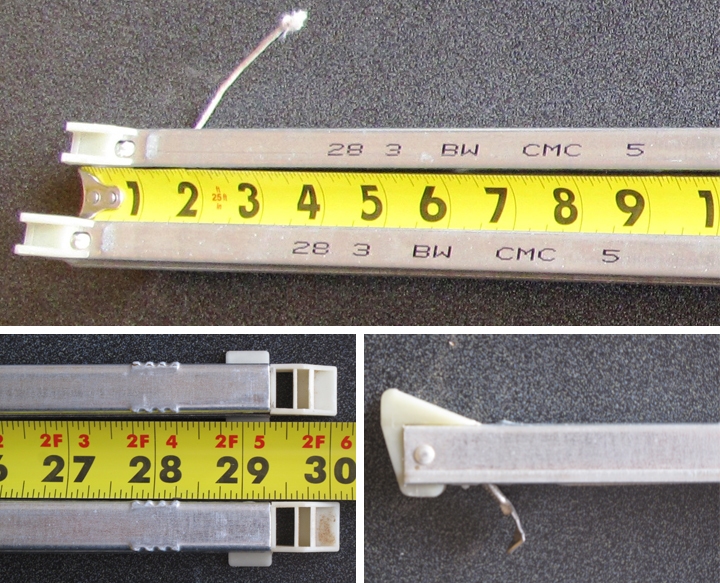

Not sure which part will fit. The top looks correct, but the shoe looks wrong. Size is 1/2 X 29, non tilt. Numbers printed on balance are: 28 3 BW CMC 5. We will need two. Thank you for your help. The piece that broke was the hook on the bottom.
User submitted photos of window balances.
