window sash balances, need rh and lh

Contractor from 28462

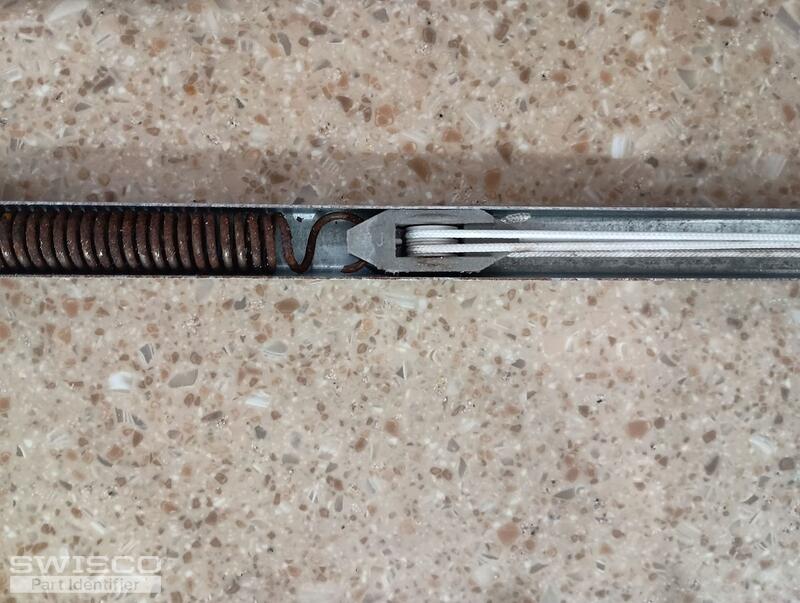

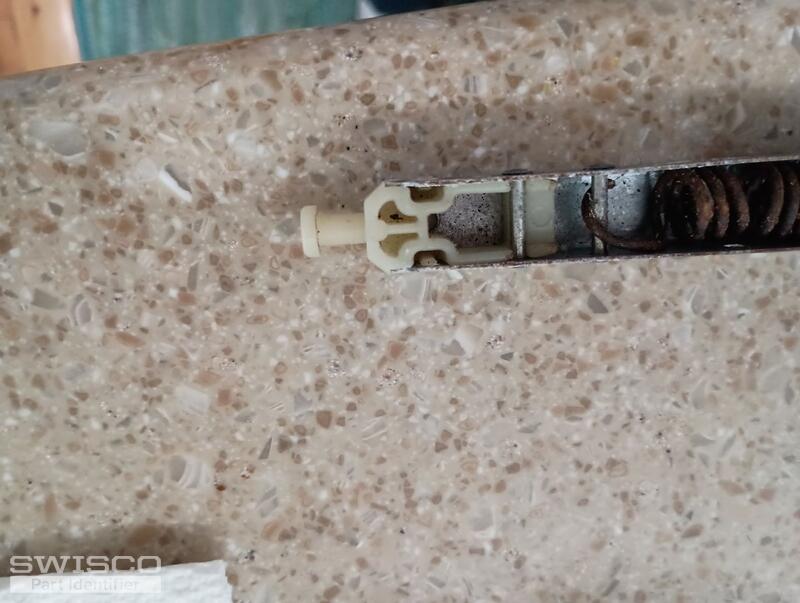

20B block and tackle sash balance 6.5" spring plastic piece on end is 1 5/8 long and 1/2 wide
3 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We can replace with a replacement balance, but to further review, are you able to confirm how the balance installs into the window channel? Does it use a screw in clip or hook? From there we can determine the best fit for your window. Thank you!

Contractor from 28462
It attaches by hook
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you,

We can supply a replacement balance, but it will require a custom order due to installing with a hook at the top. We would be assembling the 15-198 hook on the Series 795 channel balance. The length of the metal channel only should measure 20" long and the balance will have a 20B stamp that can support a 10 to 14 lb window sash. Please confirm before purchasing.

The Series 795 balance comes equipped with a T-lock shoe. You will need to discard this shoe upon arrival and replace with the 15-224 inverted link. The 15-224 inverted link will need to be added to your cart additionally from the product page before checking out.

Please review the order link I sent over for (2) balances with pricing and let me know if you have any additional questions and custom orders are nonrefundable.
