ID Window Balances

Question

Greetings,

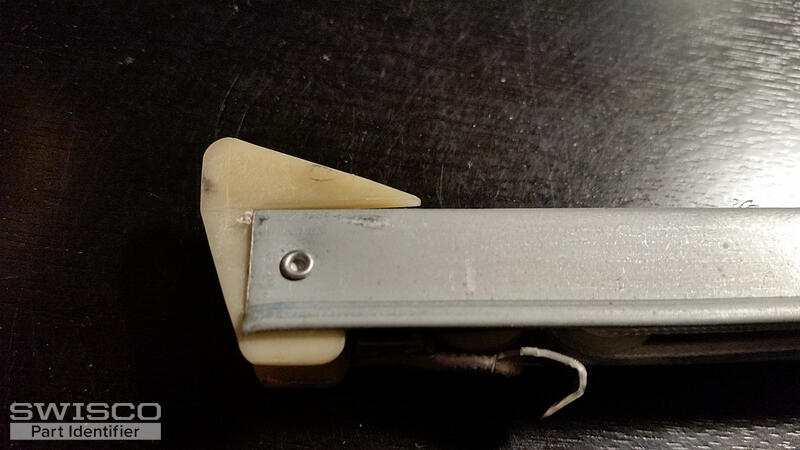

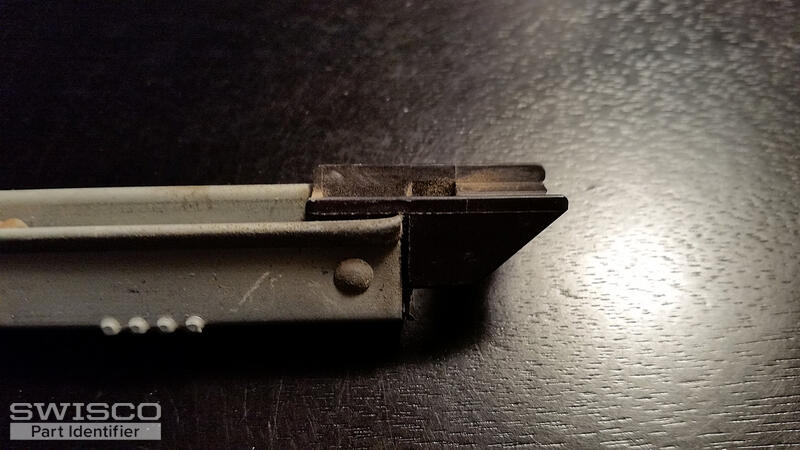

Need new window slide balances for Jordan brand non-tilt.
Metal section w/out plastic ends measures 23".
Thinking it's the 351 series but not sure how to determine the weight option code.
Thanks!
Roger

Bob · Accepted Answer

Thanks for contacting SWISCO. You are right, the Series 351 looks a promising start. Take a look at either our S351-23 or S390-23 Channel Balances. The only difference between the Series 351 and Series 390 is the 'depth' of the bottom nylon shoe. The Series 351 bottom nylon shoe has a depth of 1", whereas the Series 390 bottom nylon shoe has a depth of 1-1/8". Below are the dimensions of each respective shoe. Compare with your old balances and see what you think matches best.

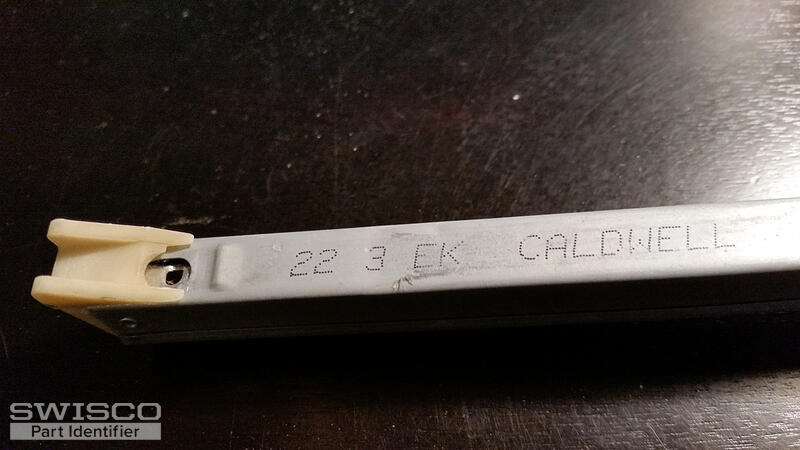

The stamped number of 22 3 on your balance corresponds with a stamp option of 2230. This corresponds to a window sash that weighs 12 through 19 lbs.
