window spring and housing and sliding door handle

Question

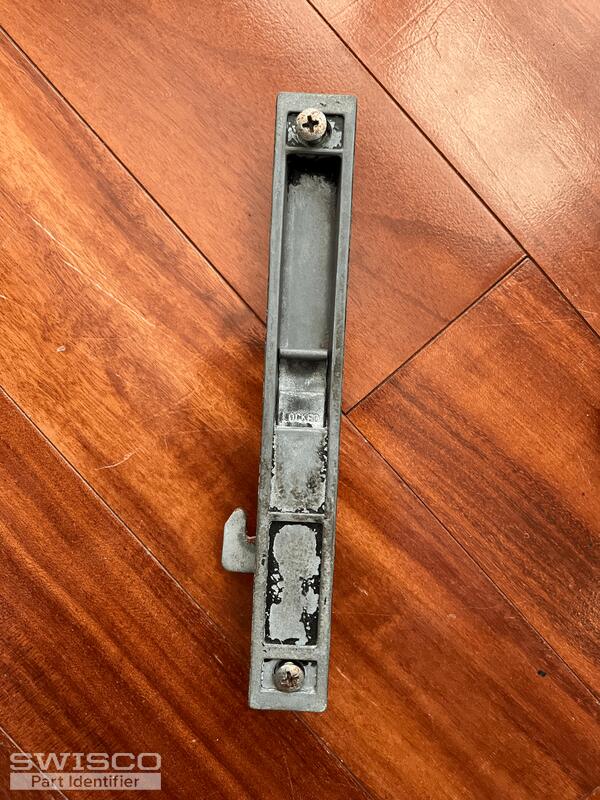

I need 3 of the windw spring and housing and
2 door handles and internal locking mechanism
I have one that is 7 3/8 " long and an inch wide
screw holes are 6 1/2" apart

Jasmine · Accepted Answer

Thanks for posting! Your balance shoe reminds me of the 15-177 Coil Balance Shoe. Be sure to look over the dimensions and compare them to confirm it is the correct match.

This shoe uses the 1/2" wide Series 152 Coil Balance, which is attached using the 33-072 screw. You'll need to look over a stamp/marking on the coil to determine the coil weight option. If there are none, take a look at the video tutorial, tagged below, for reference.

The coil support is made using the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel.

The only flush mount handle we have, that meets your specifications, is the 82-001 and 82-001K. Although, yours appears to be a closer match for the 82-008 and 82-008K. Carefully review and compare each of their dimensions on the website to determine the correct replacement.
