Satin Nickel Atrium Door Lever Lockset

Product Code: 82-399

Product Description

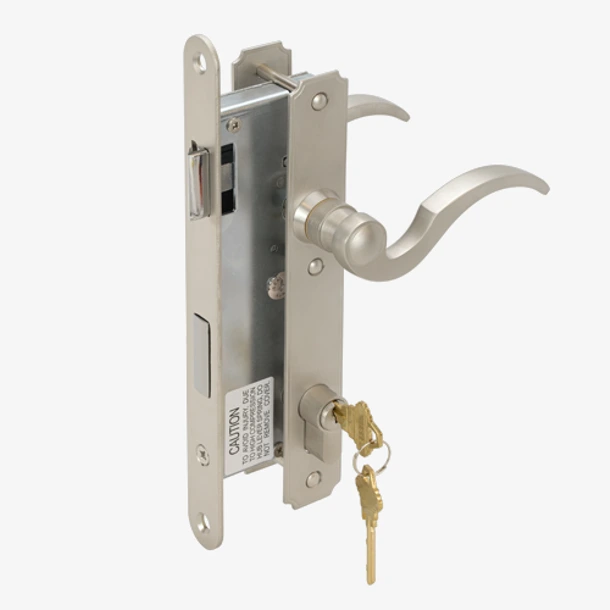

This is a heavy duty mortise lock-set made for a wood hinged Atrium patio door.
  • Fits doors from 1-3/8" to 1-7/8" thick.

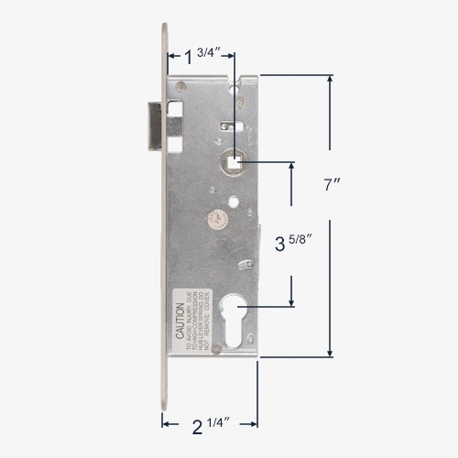

  • Forged solid brass with satin nickel finish; lock chassis is high pressure cast; latch face, mortise cylinder, escutcheons, and levers are all of solid brass.
  • Non-handed, handles and latch bolt are reversible.
  • Key operated from outside for entry and inside thumb turn for locking and unlocking; Schlage "C" keyway; rekeyable.

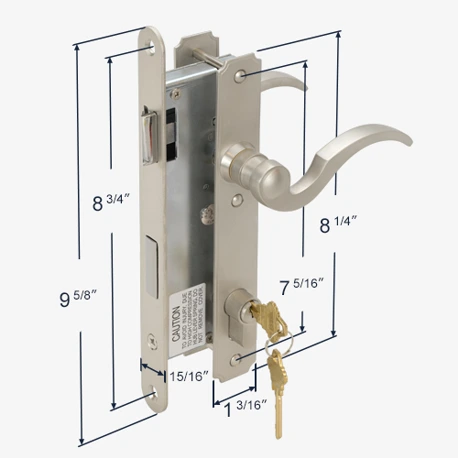

  • 1-3/4" narrow stile backset. Face plates measure 1-3/16" x 8-1/4". 4-1/2" lever handles.

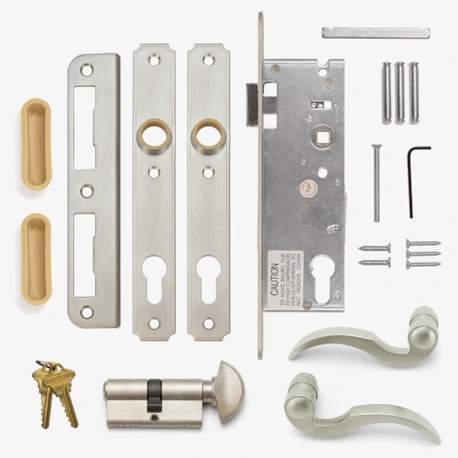

  • Includes spindle and installation fasteners.
