$3.46/each
| Quantity | Price |
| 1-11 | $3.46 |
| 12-49 | $3.11 |
| 50-99 | $2.94 |
| 100-249 | $2.77 |
| 250+ | $2.60 |
Product Description

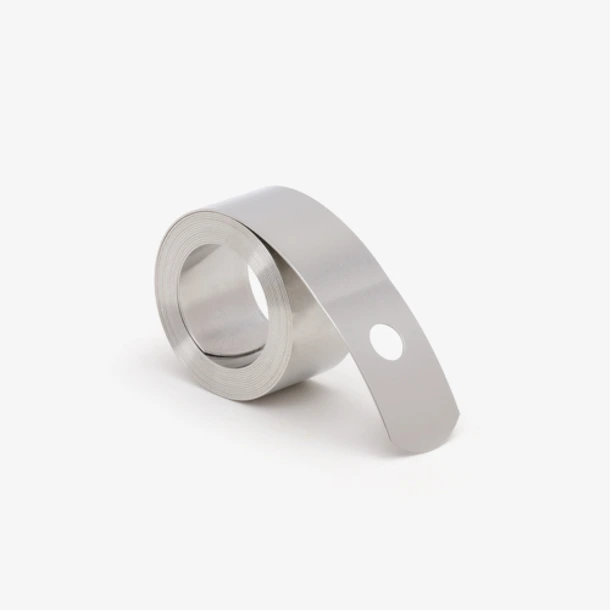

This is a Series 175 spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window sash to stay open when raised and remain shut when closed.
- This is a light force spring. The silver color indicates the strength.
- Measures 1/2" thick.
- Has a short tongue, meant to install at the top of a set of coil springs or as the only coil in a coil balance system.
- Designed to work with the 15-266 carrier, and 15-267 spring clip (sold separately).
- This coil balance spring is sold individually, not in sets.
- Can work for either the left or right side of the window interchangeably.
A balance assembly is used on each side of the window sash. To determine how many coils to use per balance assembly, please refer to the chart below.
| Sash Weight Range | Coils Per Assembly | Use Coil Product Codes |
|---|
| 4.5 to 9.9 lbs | Single | S175-SS |
| 10 to 13.9 lbs | Single | S175-BS |
| 14 to 19.9 lbs | Dual | S175-SS + S175-BM |
| 20 to 23.9 lbs | Dual | S175-BS + S175-BM |
| 24 to 27 lbs | Triple | S175-SS + S175-SM + S175-BL |
| 28 to 34 lbs | Triple | S175-BS + S175-BM + S175-BL |
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
