Product Code: 36-021

10" Four-Bar Hinge, Standard Duty

Name: 10" Four-Bar Hinge, Standard Duty
SKU: 36-021
Price: 19.74 USD
Availability: InStock

$19.74

Quantity	Price
1-9	$19.74/ea
10-24	$18.75/ea
25-49	$17.77/ea
50-99	$16.78/ea
100+	$16.19/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

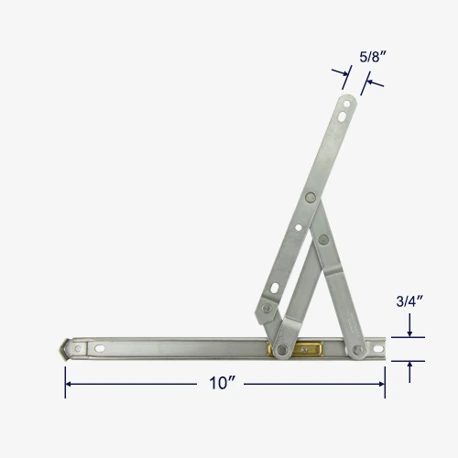

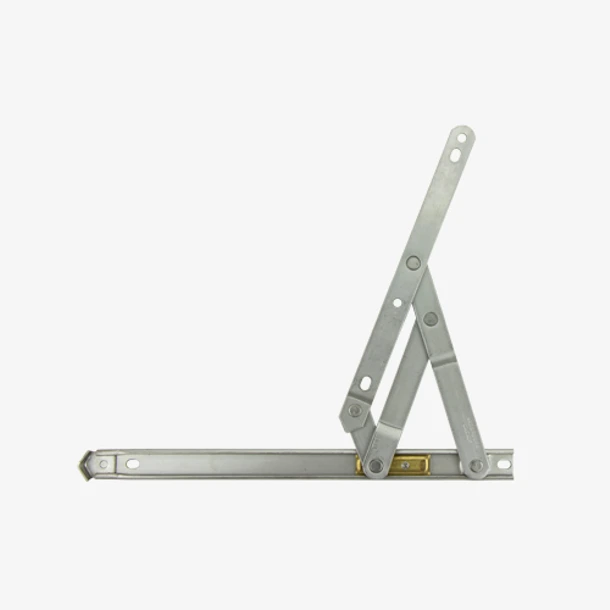

This is a 10" standard duty stainless steel four bar hinge with brass shoe, measures 1/2" in overall depth. Generally used for residential projects, designed without a stop, will open to approximately 55 degrees in casement window applications. This hinge is non-handed; it can be used in either left handed or right handed applications.

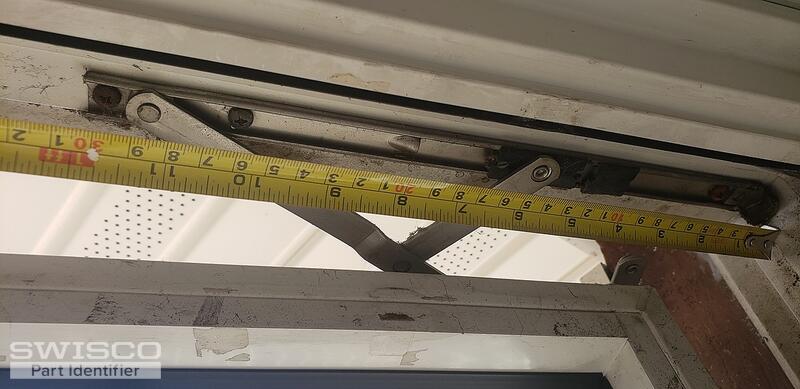

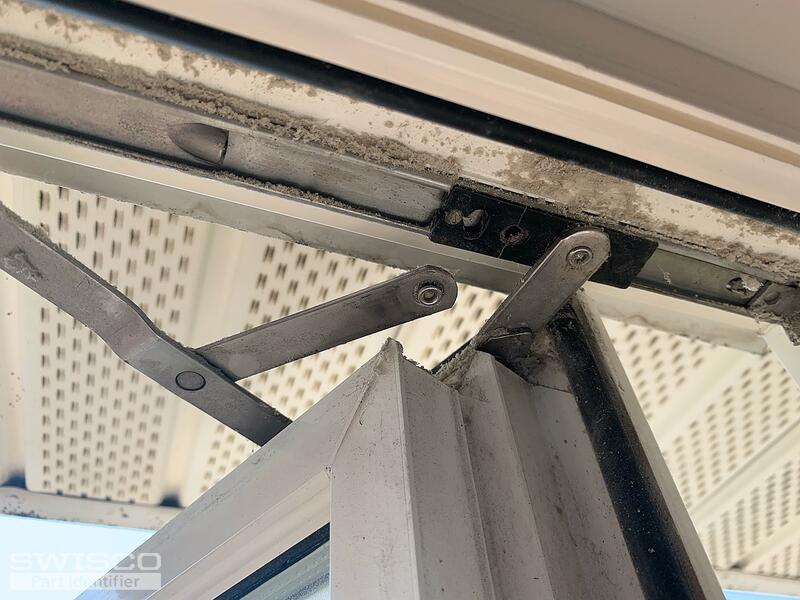

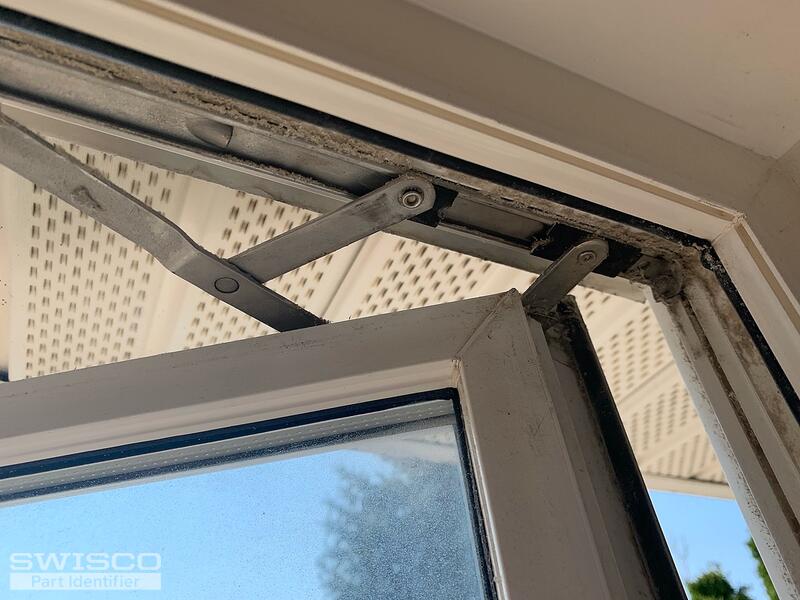

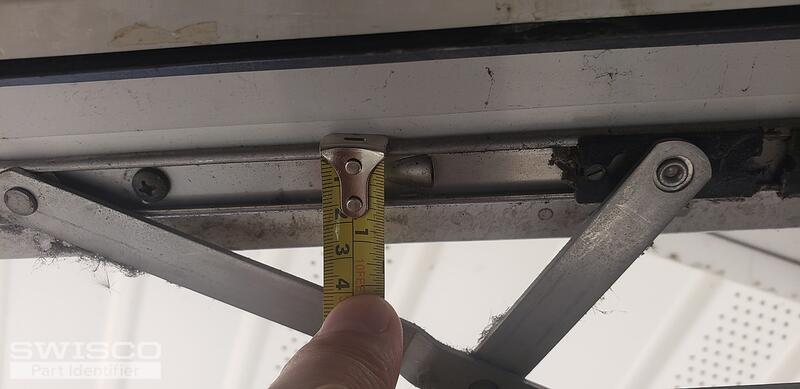

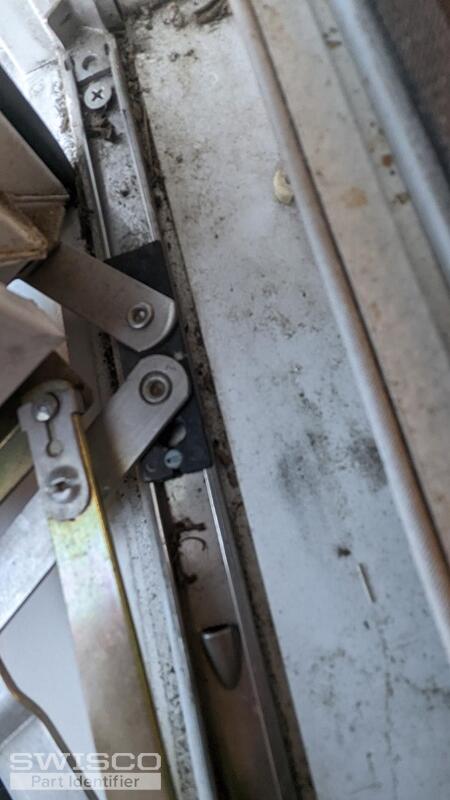

Truth Casement Window Top Hinge

I have a Truth Casement Window Top Hinge that is broken. The black plastic(?) piece that runs in the track is separated into 2 pieces. I have included photos of the left hinge, although it is the right hinge that is broken. The total track length ( see photo ) that mounts on the window frame appear ... (cont.)

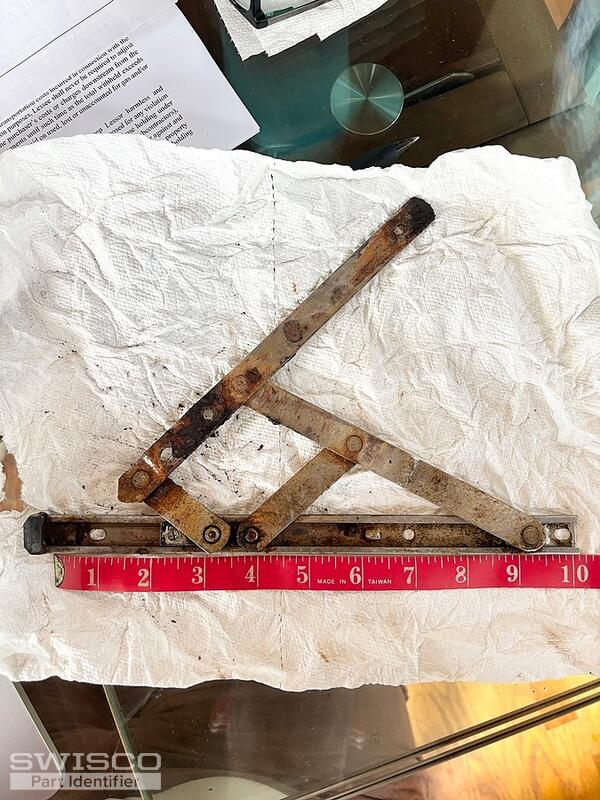

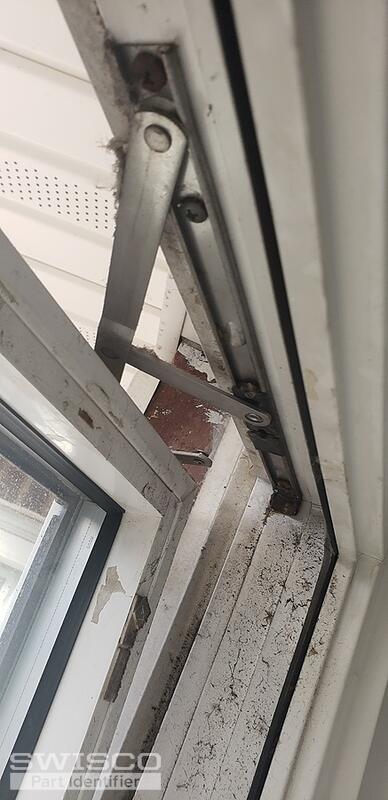

10" casement hinge

Looking for an exact duplicate of this and it's opposite to make a complete pair

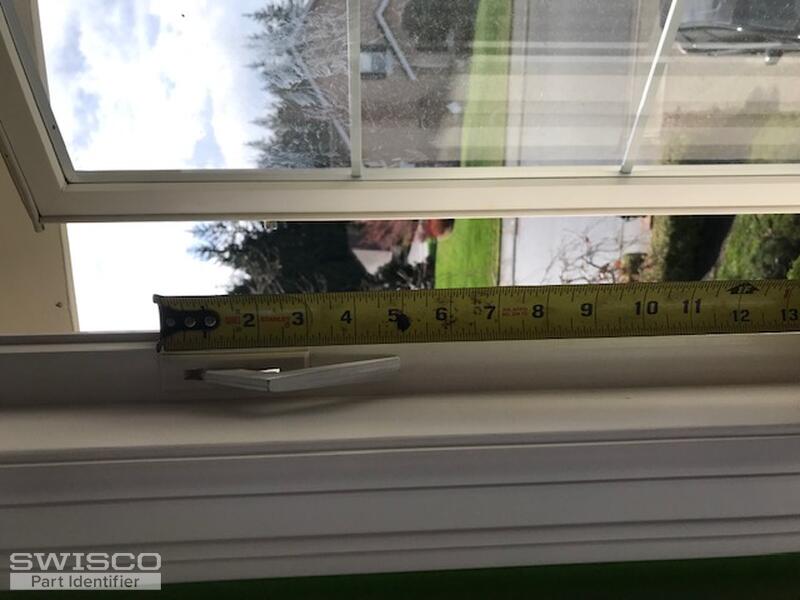

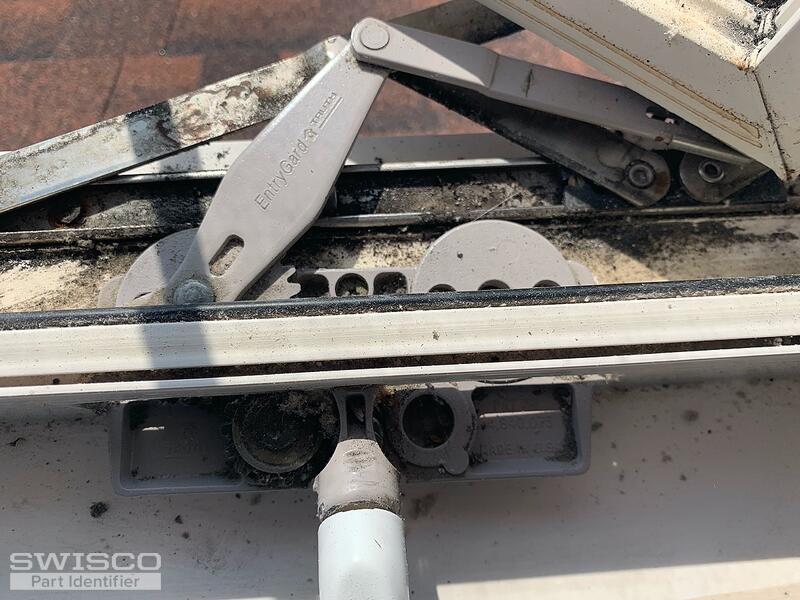

Casement operator

Do you know if this part is available? Thank you.

No part numbers, names, or markings were found on the hardware.

Hello, The window has been difficult to close completely for some time. I am hoping you can locate the part(s) I need to repair the window mechanism myself. If you need more information, please let me know. Thank you!

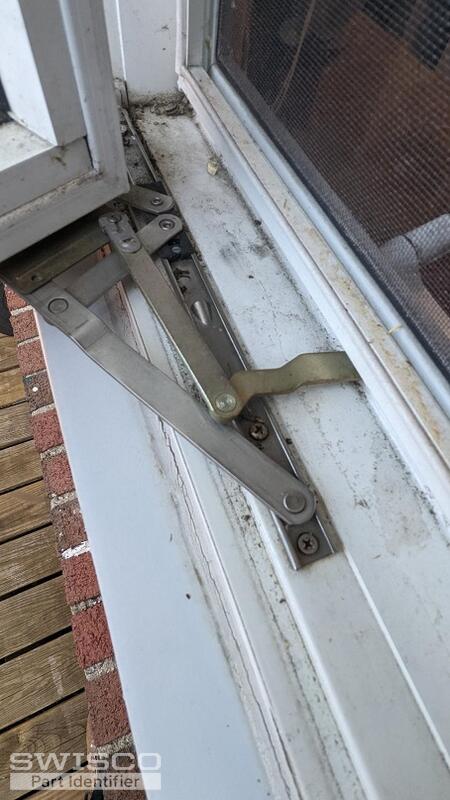

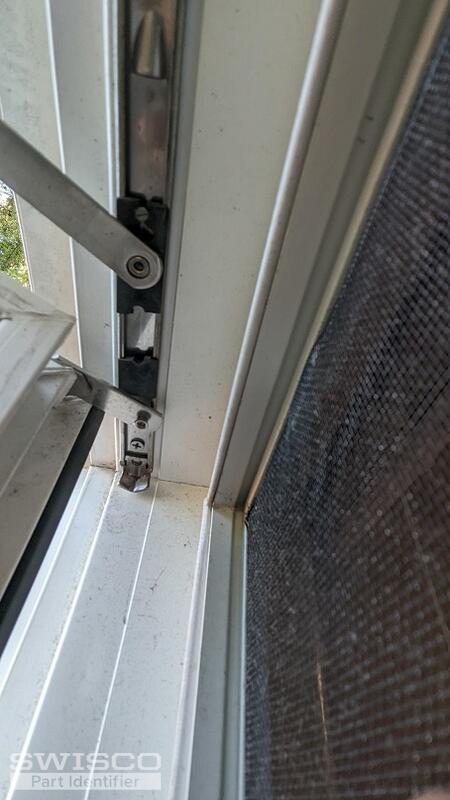

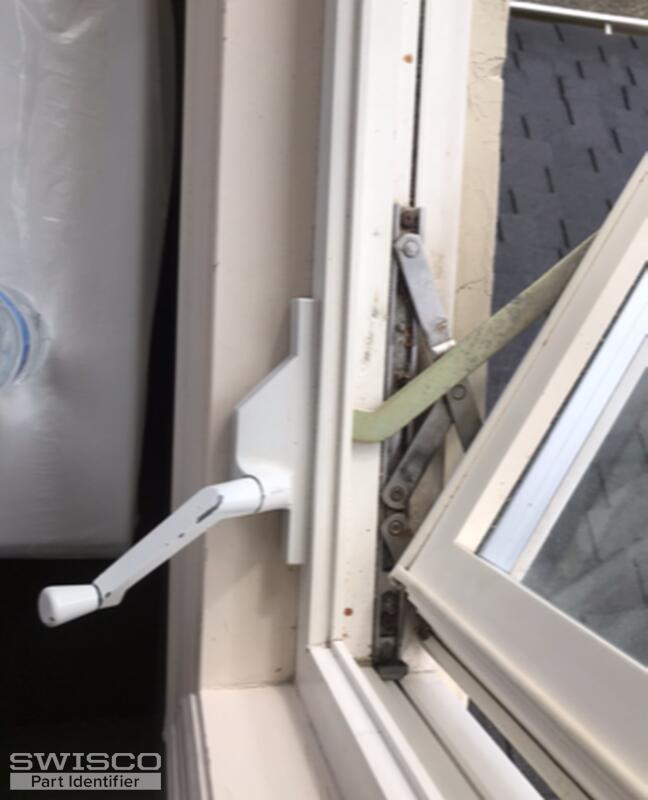

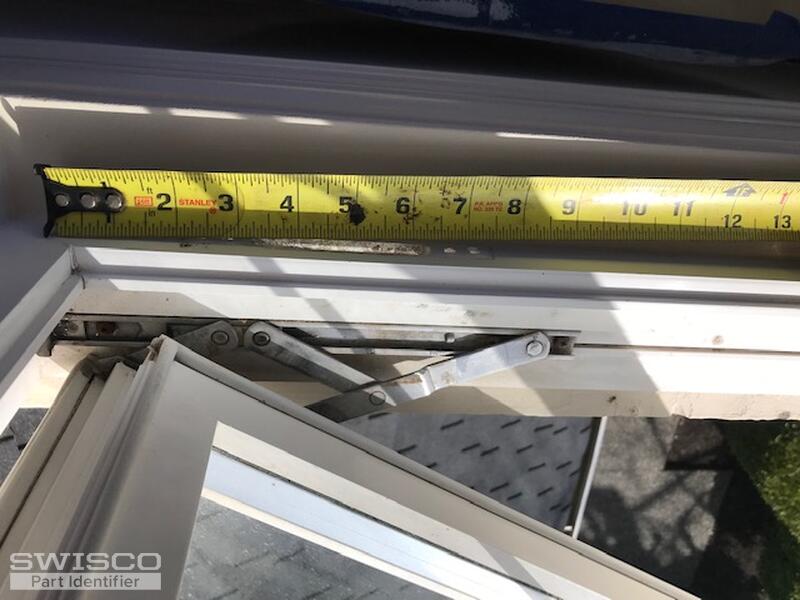

Window arm snapped

Hi I have these windows and they crank open. One of the windows arms that pulls and pushes the window that's attached to the window snap. I've taken images and one with the tape measure let me know if this can help or do you need something more specific to identify the window parts. Thanks in advanc ... (cont.)

+10
