17" Series 765 Balance

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

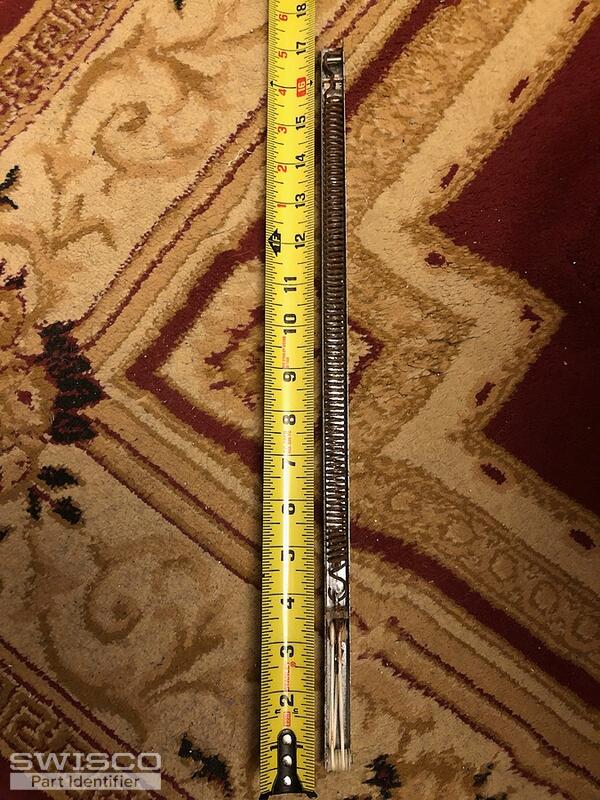

• This balance has a 17" long metal channel.
• Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.

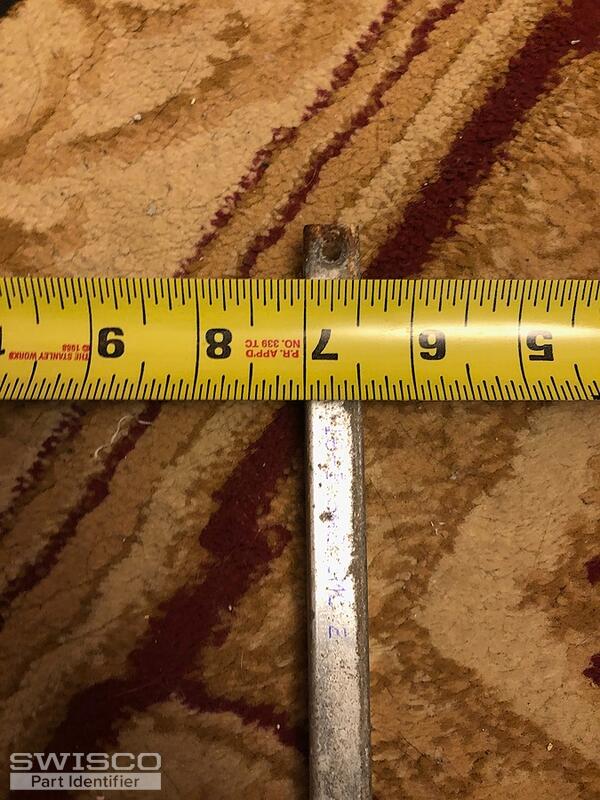

• The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
• Can work for either the left or right side of the window interchangeably.
• Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
16-1	5 to 8 lbs
16-3	8 to 12 lbs
16-5	12 to 16 lbs
16-7	16 to 20 lbs
16-9	20 to 24 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
