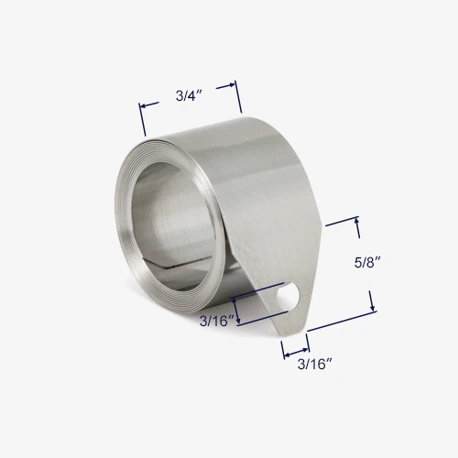

334 Series 170 Coiled Balance Spring

Product Code: S170-334

Product Description
This is a Series 170 spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window sash to stay open when raised and remain shut when closed.
  • Individually, this coil balance can hold 4 pounds. This is added together with the other coils to support the whole weight of the sash.
  • This coil is stamped with number 334.
  • Measures 3/4" thick.
  • Designed to work with the 15-192 pivot shoe (sold separately).
  • This coil balance spring is sold individually, not in sets.
  • Can work for either the left or right side of the window interchangeably.
  • Coil balances are also known as constant force window balances.
  • Has a short tongue, meant to install on the bottom of a pair of coil balances or as the only coil balance in a system.
  • This constant force balance is used in CertainTeed double hung windows.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

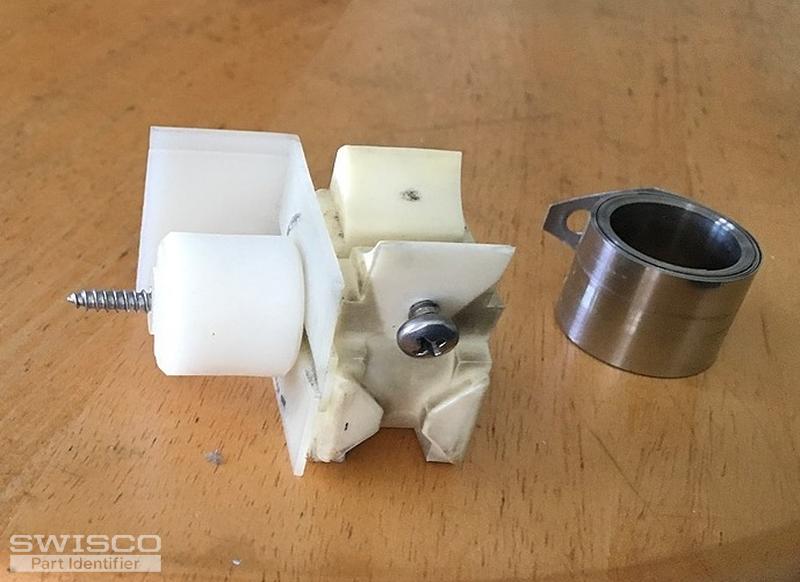

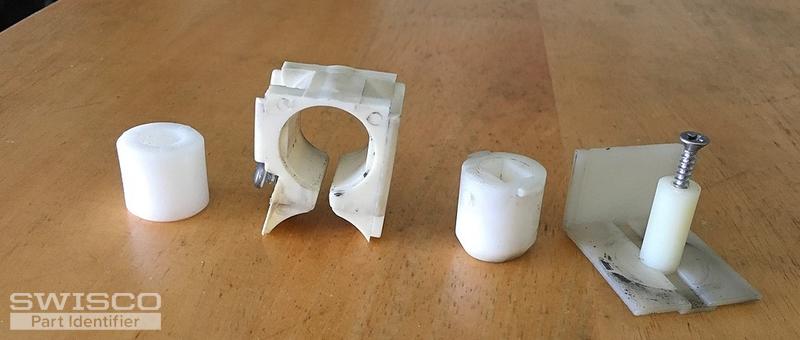

Replacement partsThis discussion includes image(s). 2 Jan 12, 2021

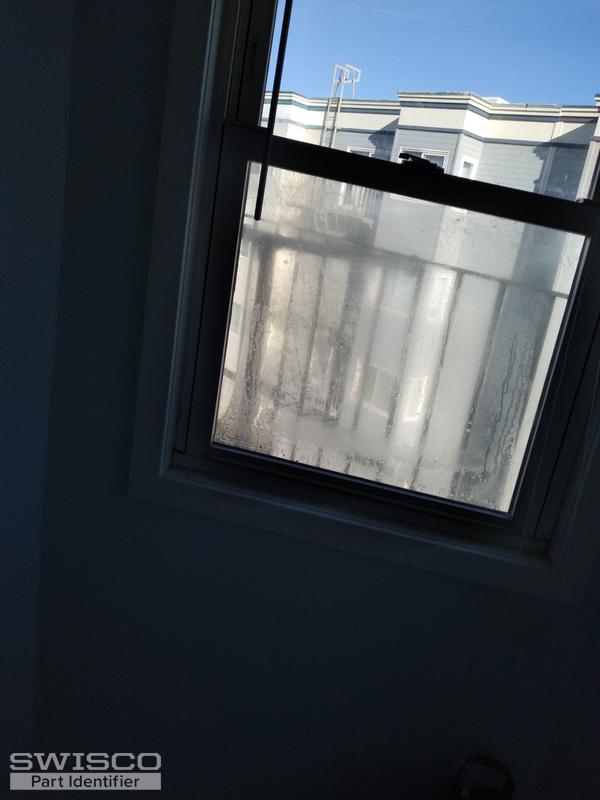

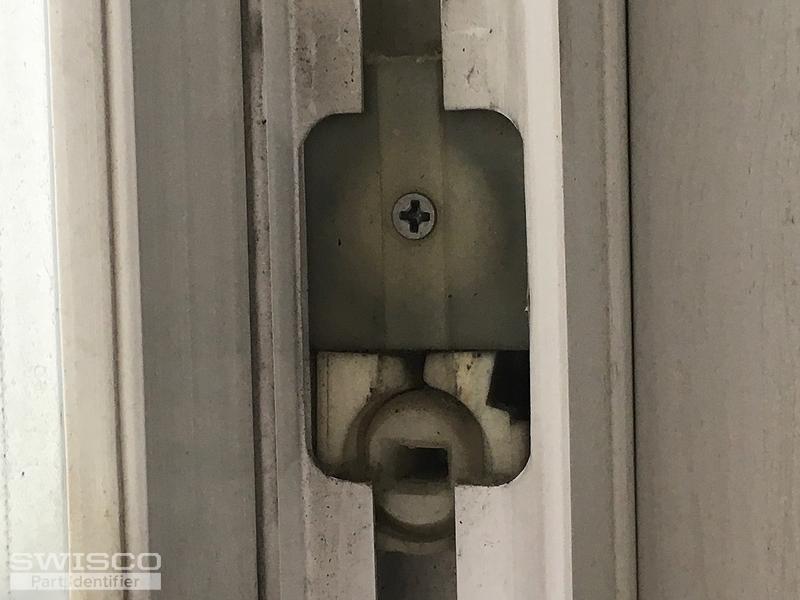

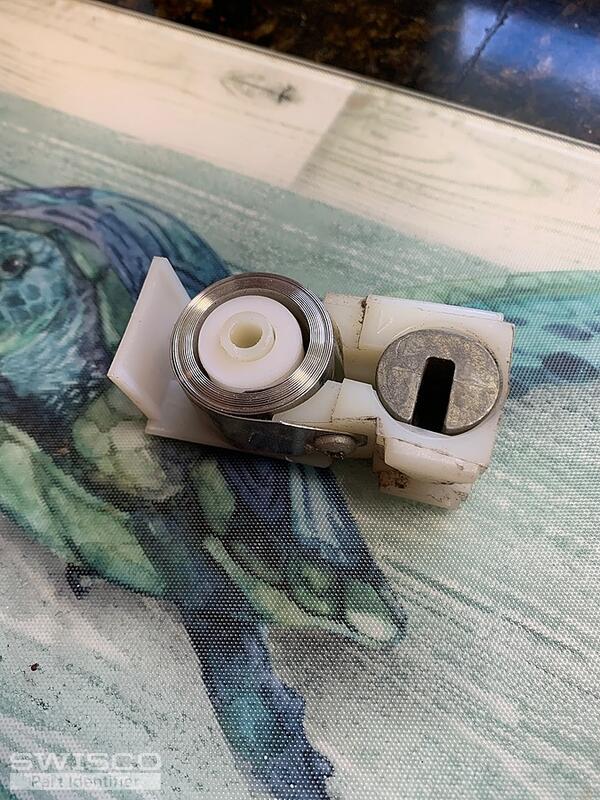

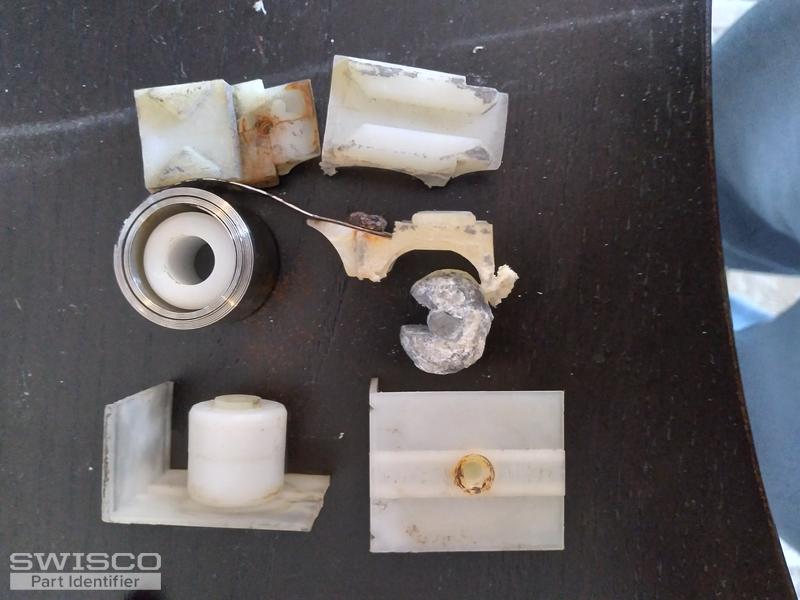

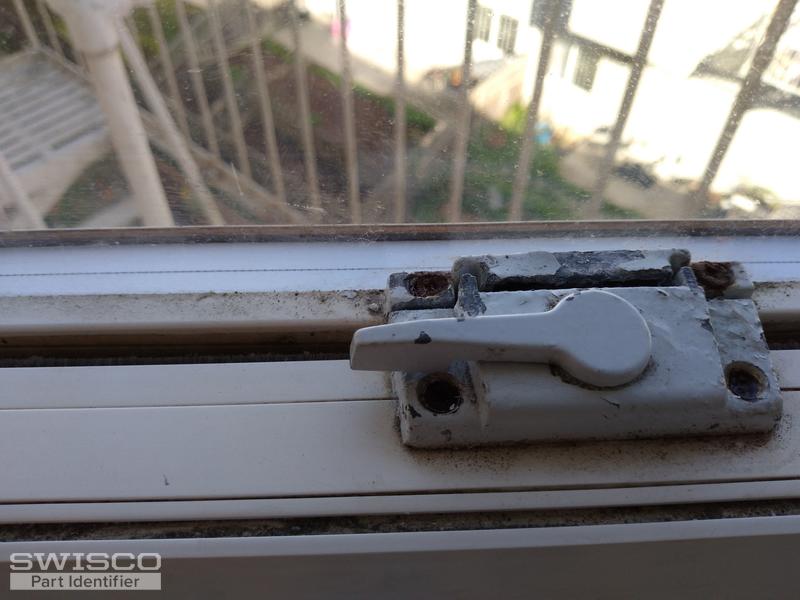

Replacement for coil balance springThis discussion includes image(s). 10 Mar 25, 2020
