S600-36

36" Series 600 Spiral Tilt Window Balance

Name: 36" Series 600 Spiral Tilt Window Balance
SKU: S600-36
Price: 10.37 USD
Availability: InStock

Product Code: S600-36

$10.37/each

Quantity	Price
1-11	$10.37
12-49	$9.33
50-99	$8.30
100-199	$7.78
200-399	$6.84
400+	$6.33

Please Note: Bulk pricing applies only to purchases of the same option

Discounts starting at 12 pcs.
View Bulk Pricing

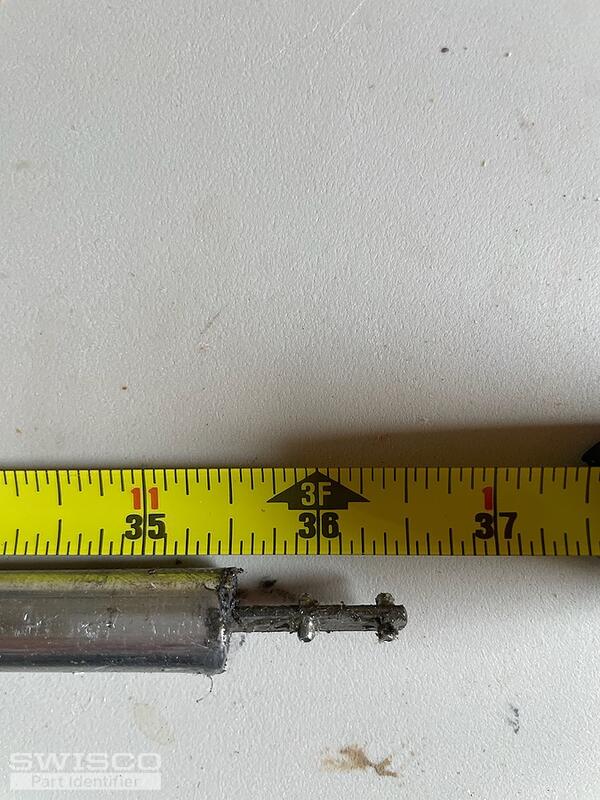

How to measure the tube length of the S600 spiral balance.

Product Description

This is a Series 600 balance, considered the most popular spiral tilt balance in the industry and used in aluminum and vinyl tilt-in windows. It moderates the operation of your window sash to allow the window to stay open when raised.

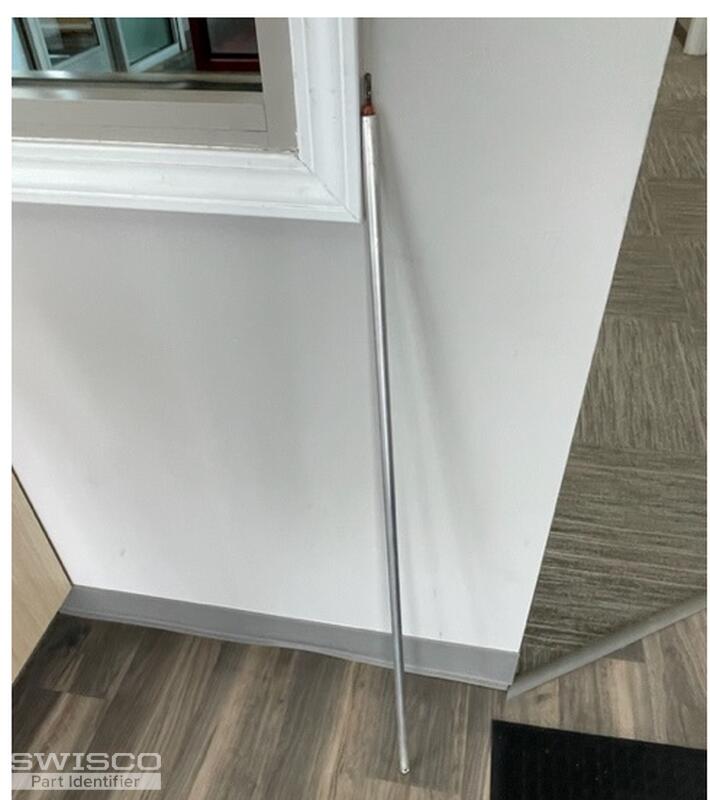

This balance has a 36" long metal tube. When determining the length only measure the metal tube.

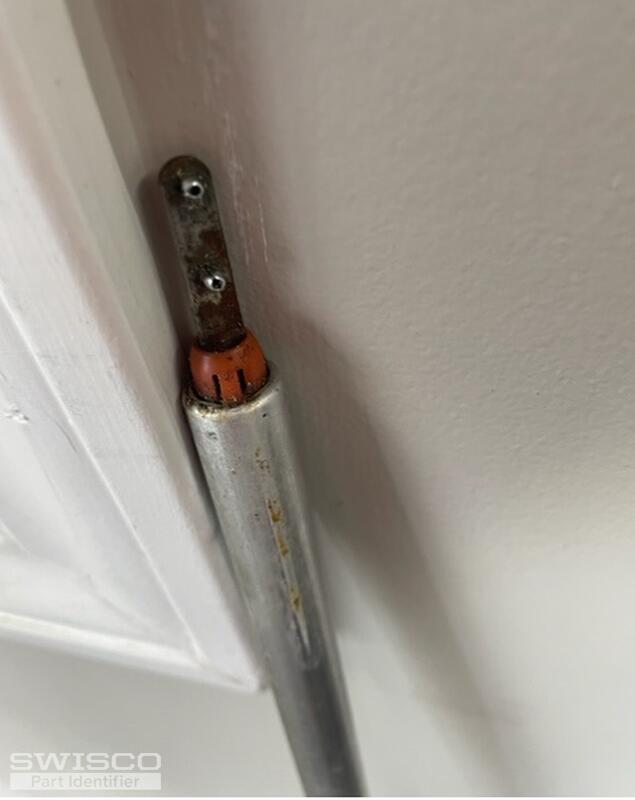

The strength you need should be indicated as a color tip at the end of your old metal tube. If you do not see a color tip weigh your sash on a scale and refer to the chart below.

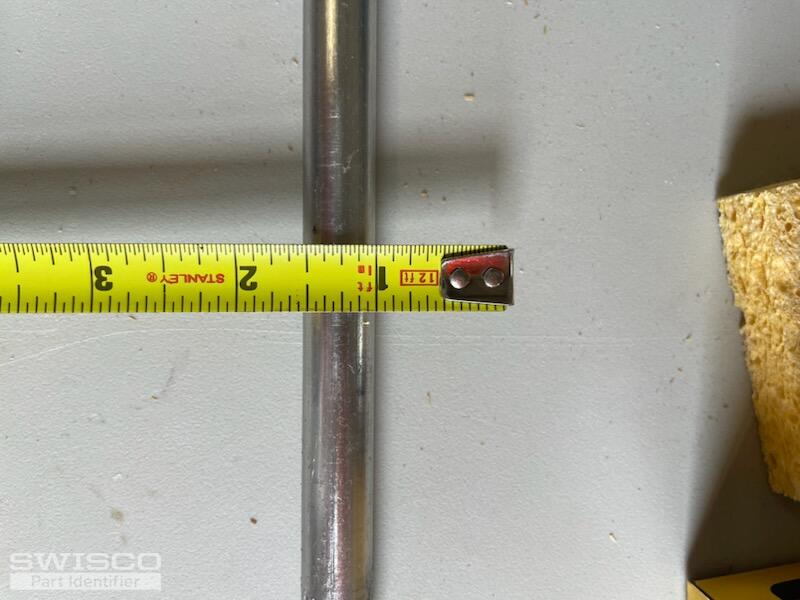

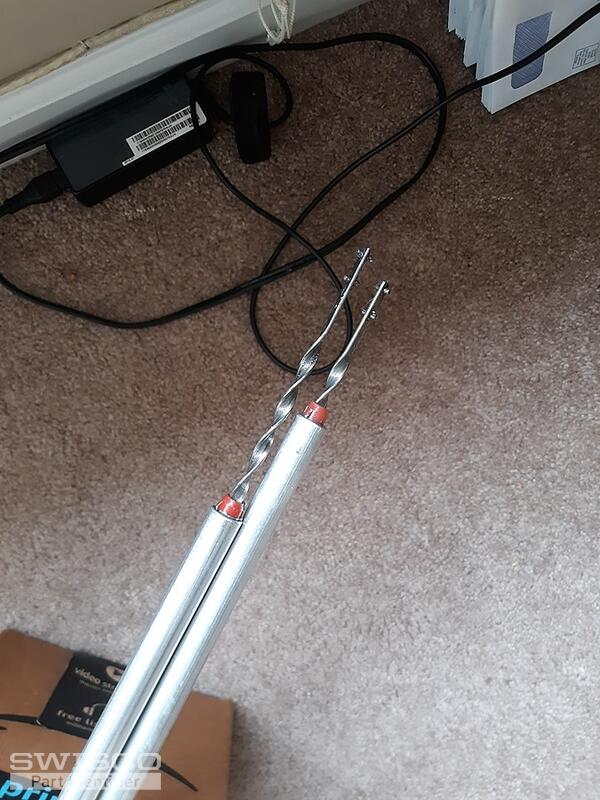

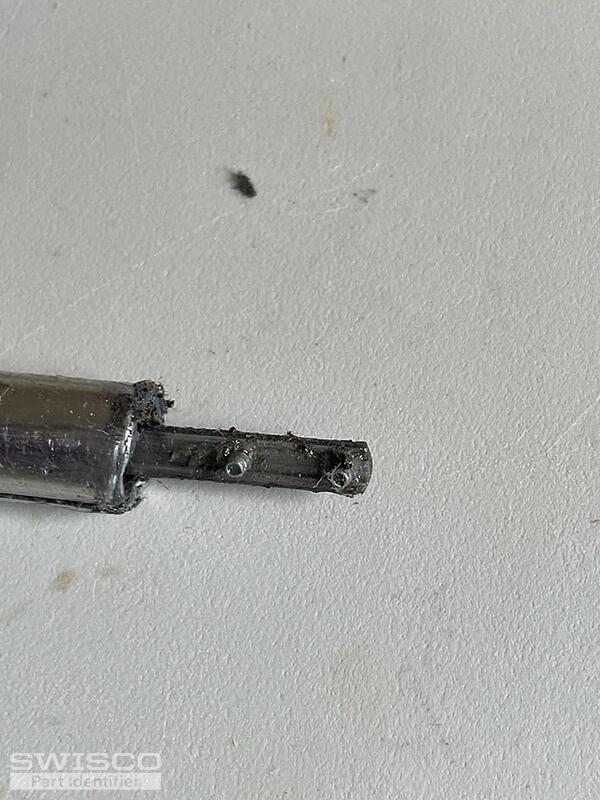

The metal tube measures 9/16" in diameter, but it is considered 5/8" in the trade, and houses an internal spiral rod with double pins.
Can work for either the left or right side of the window interchangeably.
Spiral window balances come fully lubricated and ready to be charged.

Color Tip	Sash Weight Range
Red	12 to 30 lbs
Black	31 to 40 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

You should choose the color tip that matches the color tip of the balances you are replacing. If you do not see the tip color available in 'options' or you are unsure of which color to choose: ask our experts for help.
