Product Code: S161-09

9 lbs Series 161 Roller-Tilt

Name: 9 lbs Series 161 Roller-Tilt
SKU: S161-09
Price: 7.2 USD
Availability: InStock

$7.20

Quantity	Price
1-11	$7.20/ea
12-49	$6.48/ea
50-99	$6.12/ea
100-249	$5.76/ea
250+	$5.40/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

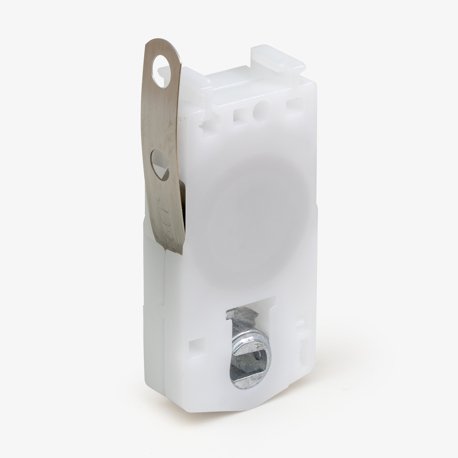

This is a Series 161 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

This balance comes complete with a metal pivot cam, coil spring, and coil spring cover.
The spring is stainless steel and coated for low friction and corrosion resistance.
A pair of 9 lb assemblies will carry 17 to 18.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.

Coil balance 9BR

I found the label and it is a 3500 SeriesMFG:3/2022ORD: 122421056.4It is an MI window

Coil balance

Window Coil balance. I need 9 left and 9 right.

Pivot bar and shoe

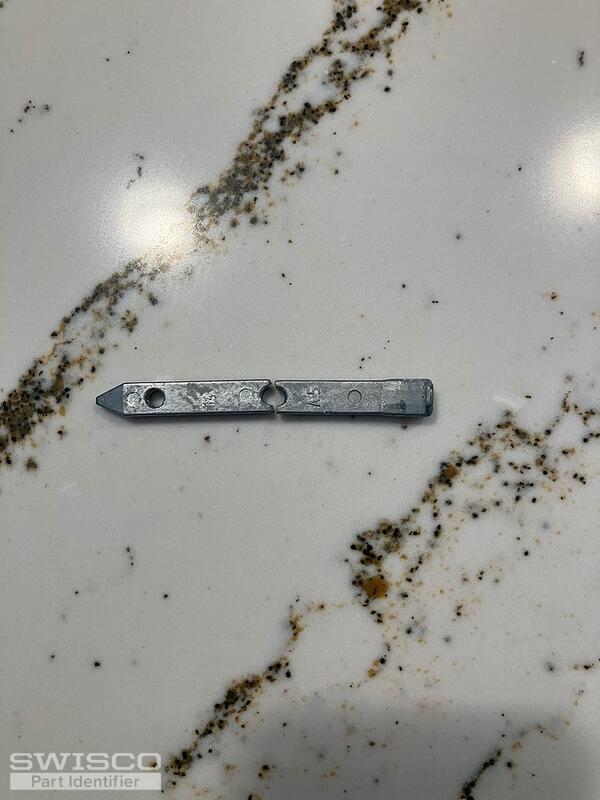

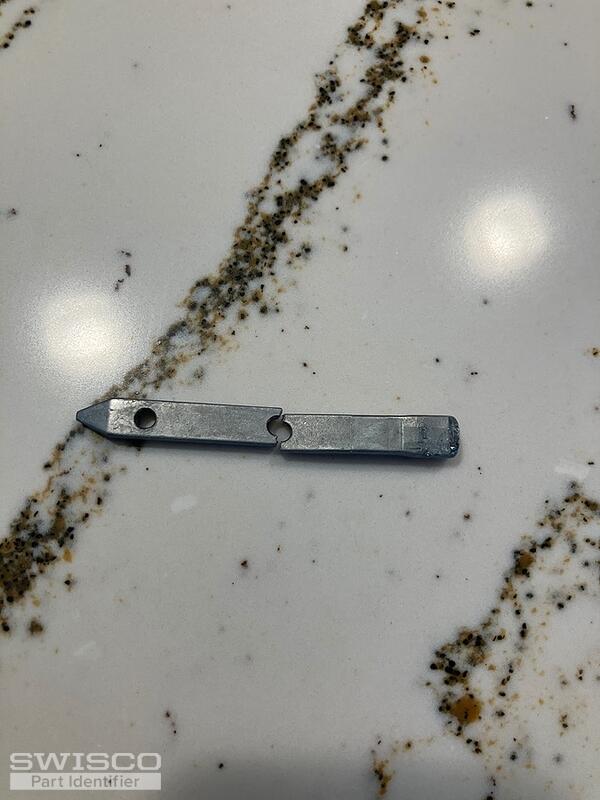

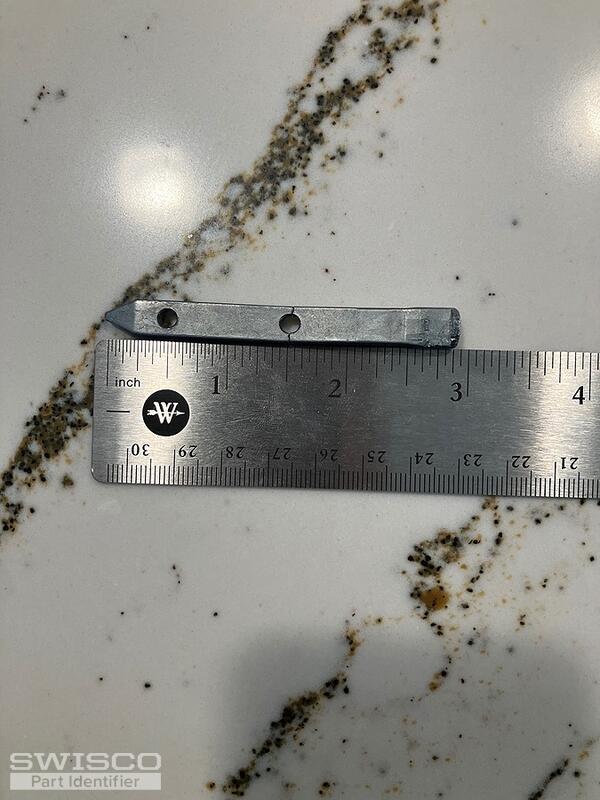

My pivot bar broke. Want to replace both the bar and shoe. Bar has "A5" and "14" markings on it. Shoe has 9 LB writing on it.

Replacement part

hi I'm trying to replace the spring loaded mechanism on my MI tilt window. the identifying number is 9 LB, it's on the right hand side looking out. I as of yet have not been able to identify this replacement part anywhere can you help me with that. please refer to the picture I sent. ... (cont.)

track slider/built in flat 1/2 inch wide spring.

We are looking for 2 window parts. Same part but one is right side, and second is left side. Printed markings from dot matrix printer show "9 R" & "9 L". (Dimensions approximately 1.25 inches wide x 2.75 inches long x 0.625 depth.) Can you please help with ordering these 2 Parts. Thank you. ... (cont.)
