Product Code: 79-098

Right Flush Door Offset Pivot Set, US Aluminum

Name: Right Flush Door Offset Pivot Set, US Aluminum
SKU: 79-098
Price: 21.59 USD
Availability: InStock

$21.59

Right Flush Door Offset Pivot Set, US Aluminum Image

Quantity	Price
1-11	$21.59/ea
12-24	$21.17/ea
25-49	$20.78/ea
50+	$20.37/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

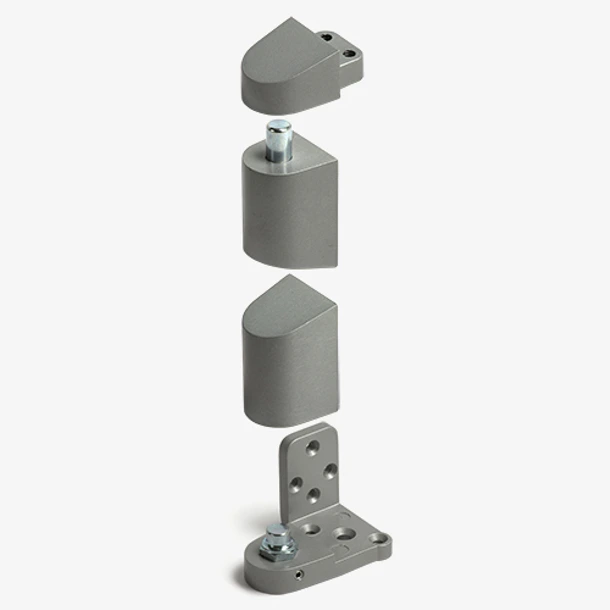

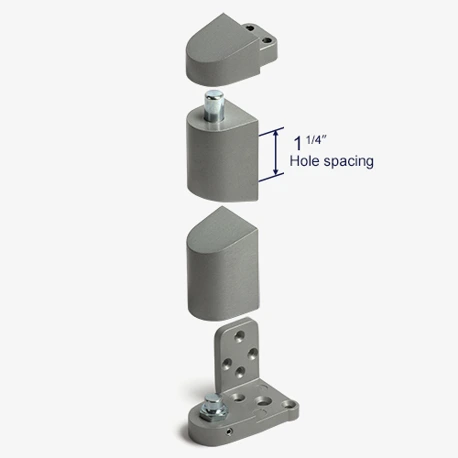

This offset pivot set is used to replace the lower and upper pivots in a right hand flush door manufactured by U.S. Aluminum; HLSO. 3/4" Offset for use with aluminum commercial doors and frames with 1/8" vertical adjustment for doors weighing up to 125 lbs. Features an oilite bronze bushing in top frame portion; case hardened, spring loaded pin in top door portion; full race ball bearing in bottom door portion; case hardened stud in floor/jamb portion. To adjust the lower pivot you will need a 5/8" open end wrench. Finish/color is a baked satin aluminum paint.

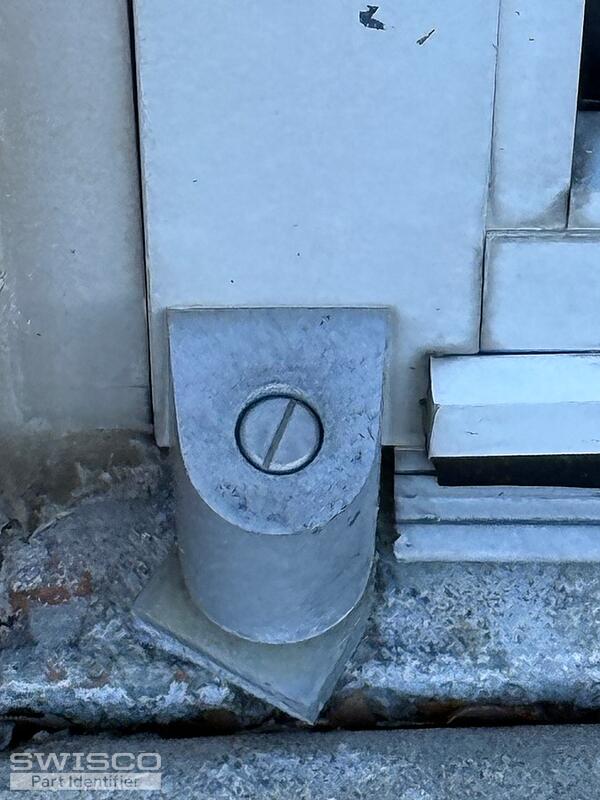

Need pivot set for that door

Need pivot set for that door.

Door replacement part

I need these parts, and not sure where to get them from

LH outswing storefront door hinge needed

Left hand outswing glass door; fastener spacing for the spring hinge pin piece is 1.25in; fastener spacing for the bottom riser piece is .75in.

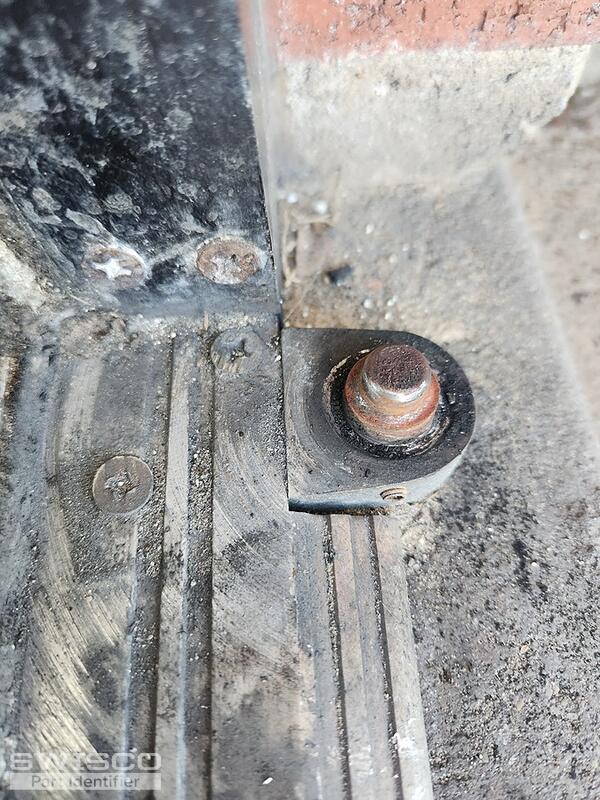

Replace broken lower pivot hinge

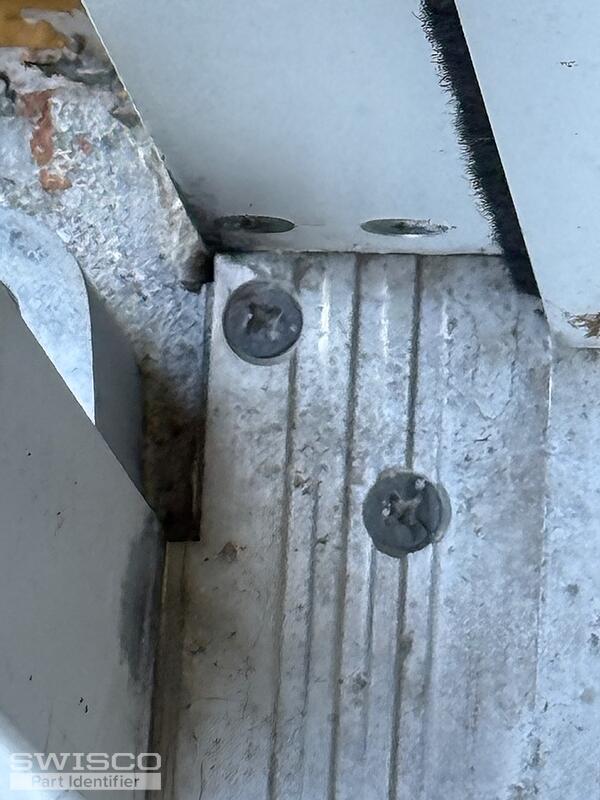

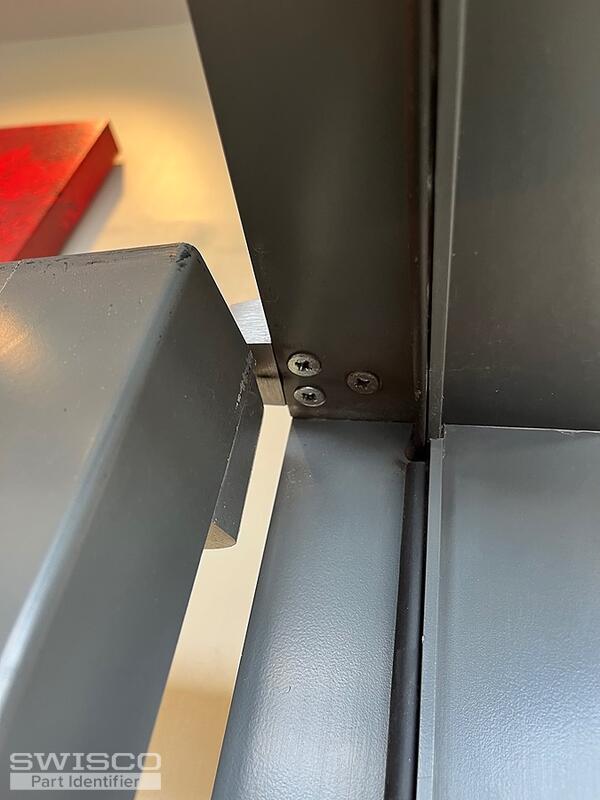

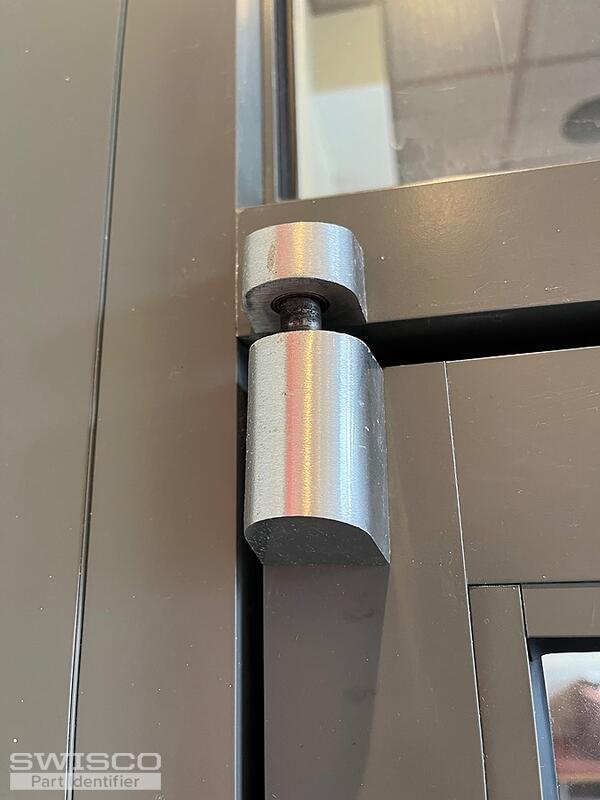

The hinge is for the pictured door. Close up pics for the bolt pattern into the sill. Lower hinge is the broken one.

Trying to identify commercial door hinge

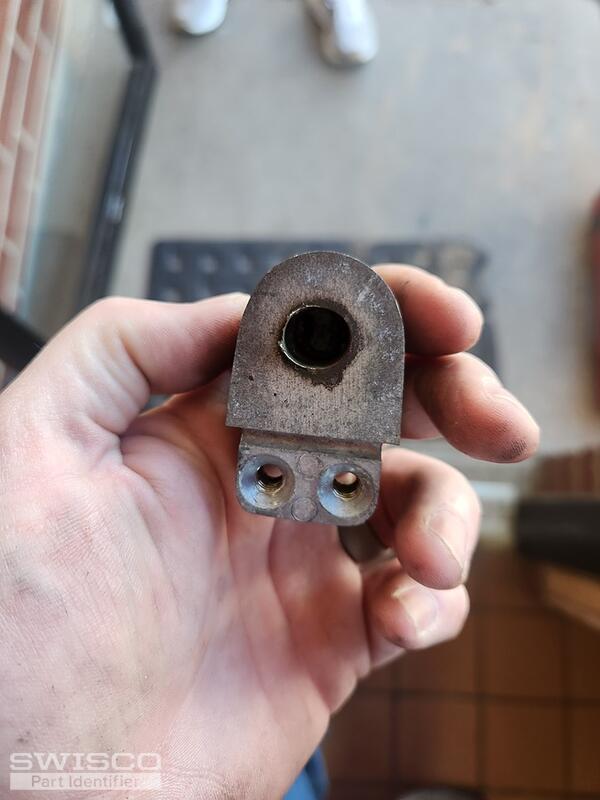

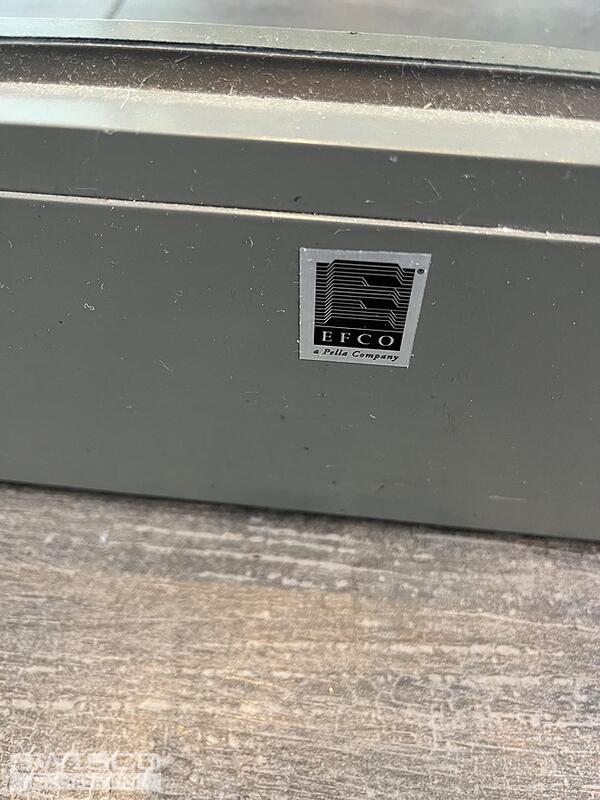

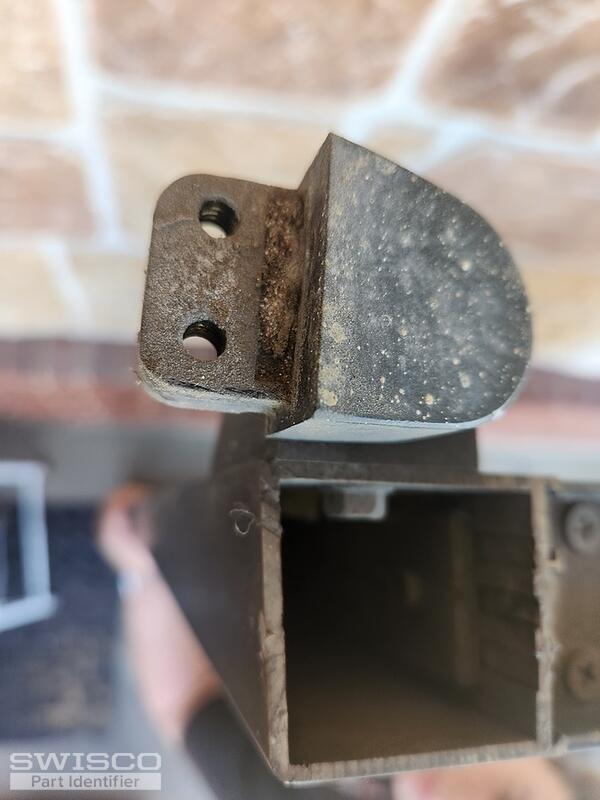

The hinges need to be replaced. Could not locate the brand of door. Bottom hinge is 2 1/8"x 1 3/8".
