Product Code: 90-016

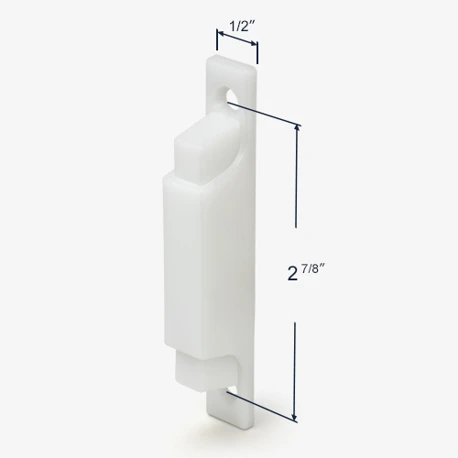

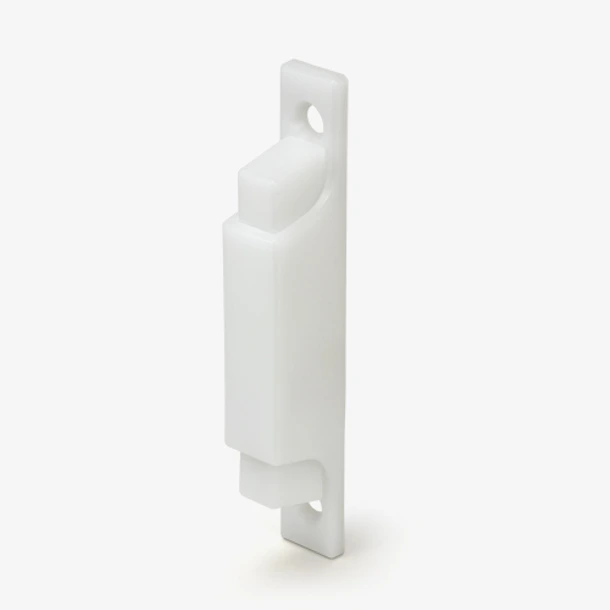

Sliding Window Latch, 2-7/8" HCs

Name: Sliding Window Latch, 2-7/8" HCs
SKU: 90-016
Price: 9.24 USD
Availability: InStock

$9.24

Product Description

Nylon sliding window lock and pull with 2-7/8" installation screw holes. As you move the slide up and down there is a spring-loaded steel pin that releases. Used by Portalume, and fits on old Air Control (Keller) windows.

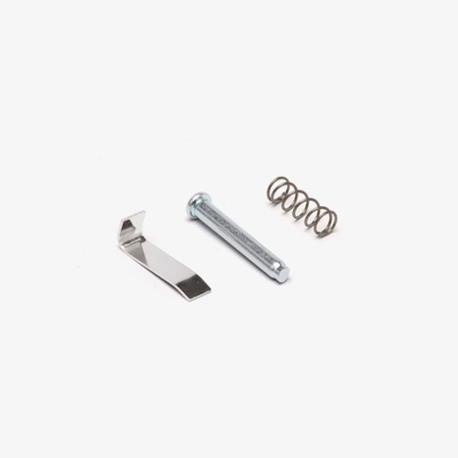

Installation: Remove the two screws attaching the old latch to the window frame and remove old components. Install spring onto aluminum pin and insert into hole on window frame. Turn new latch over and observe inside cavities. The flat spring must be installed into slot on back side of the raised curved divider, curve on spring must match the curve on the plastic divider. Install latch so that the larger cavity with flat spring points down; tighten screws securely and check for smooth operation.

Helpful Tip!

This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

Need Help Finding Window Lock

Any suggestions? Very old aluminum Window.

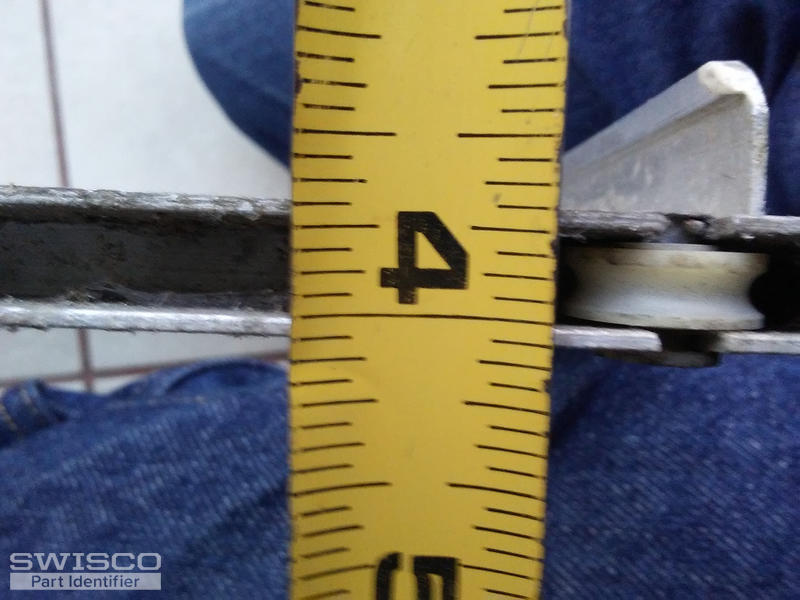

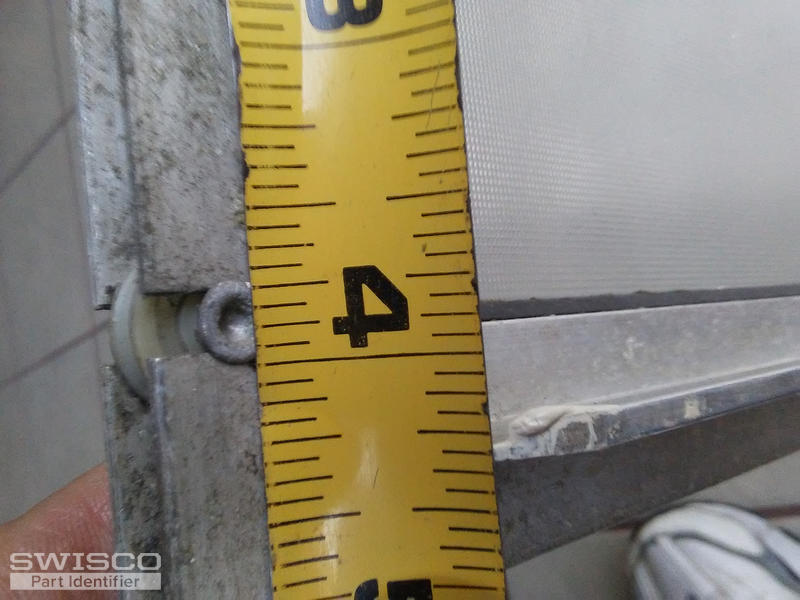

Sliding aluminum window Lock

Window lock fits through a mortise in the aluminum frame of the slider. Push/pull plastic inserts into the frame of the fixed window.

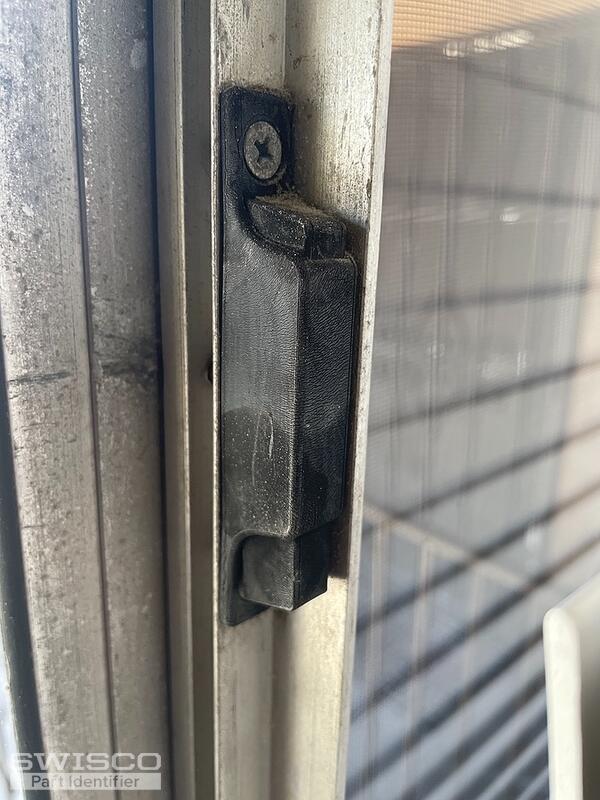

Broken Plastic Window latch/lock

Hello, Please help me identify the correct replacement part. This was a plastic lock for an old aluminum framed bathroom window. Thank you, Wellesley

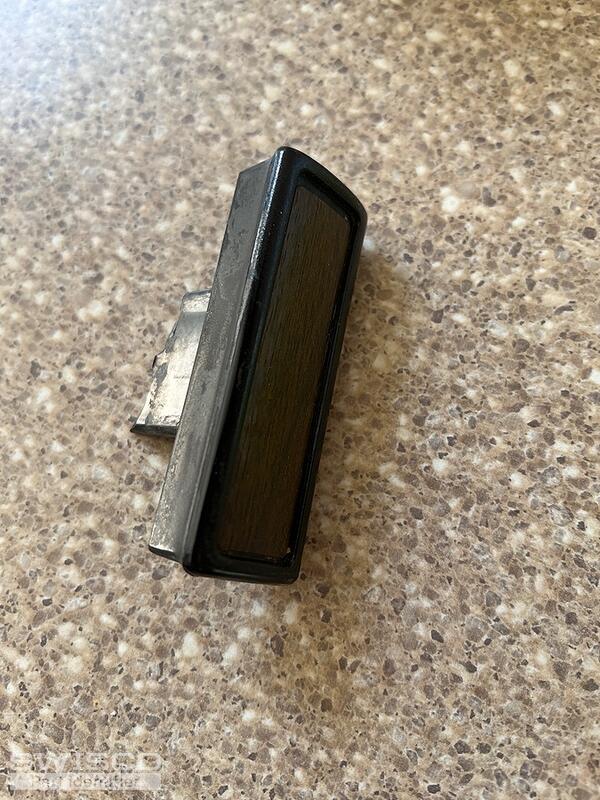

Broken window lock

This piece is broken. This is what locks my windows. The price goes into a whole in the frame of the window and has a pin that locks it in place from being pulled out. When you pull it out. It unlocks the window by allowing it to slide past the frame. The windows are from an older mid century modern ... (cont.)

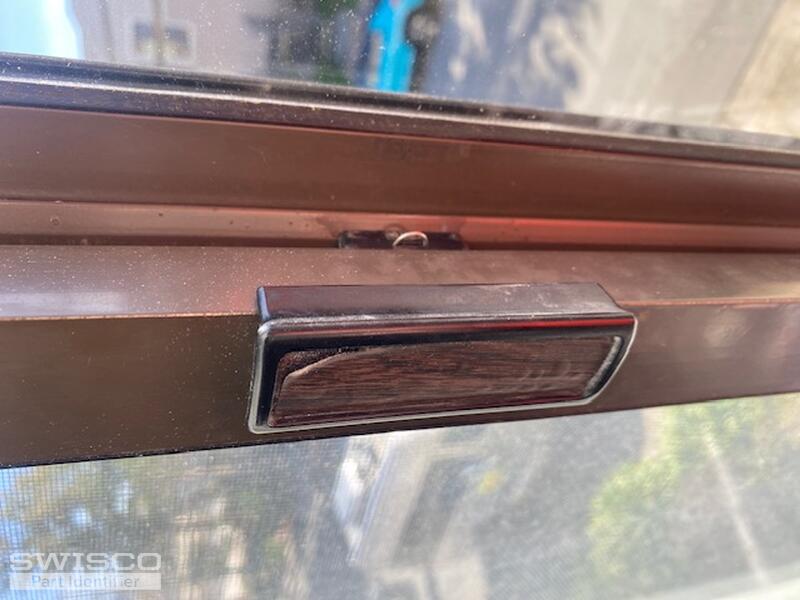

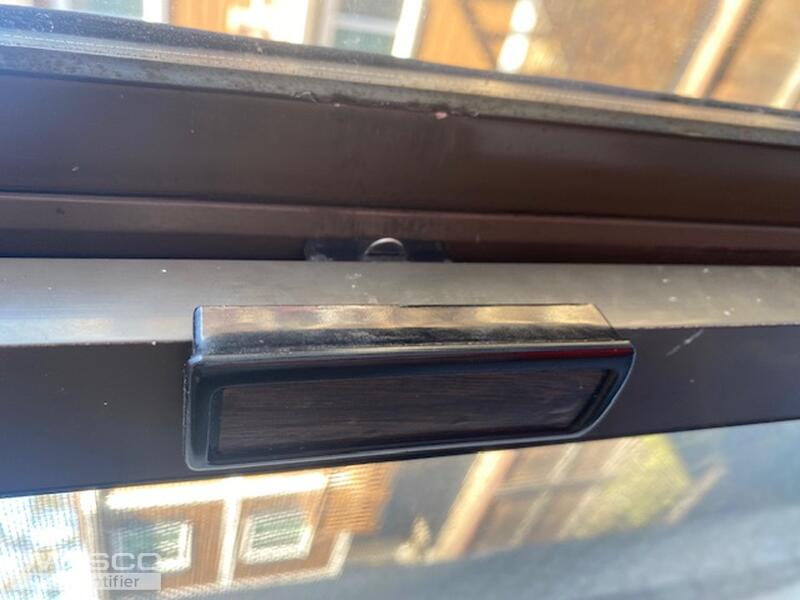

Window pull-out latch handle for 1986 blomberg window

The photos entered sideways. It's a window latch and pic of window. Any help is appreciated.
