Product Code: 17-096

Bracket Assembly

Name: Bracket Assembly
SKU: 17-096
Price: 8.79 USD
Availability: InStock

$8.79

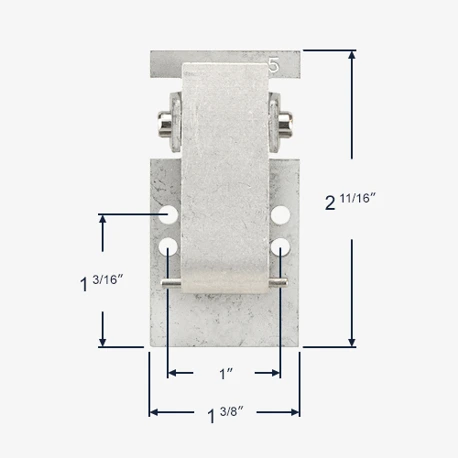

Dimensions and alternate view for 17-096

Quantity	Price
1-9	$8.79/ea
10-24	$8.35/ea
25-49	$7.91/ea
50-99	$7.47/ea
100+	$7.21/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

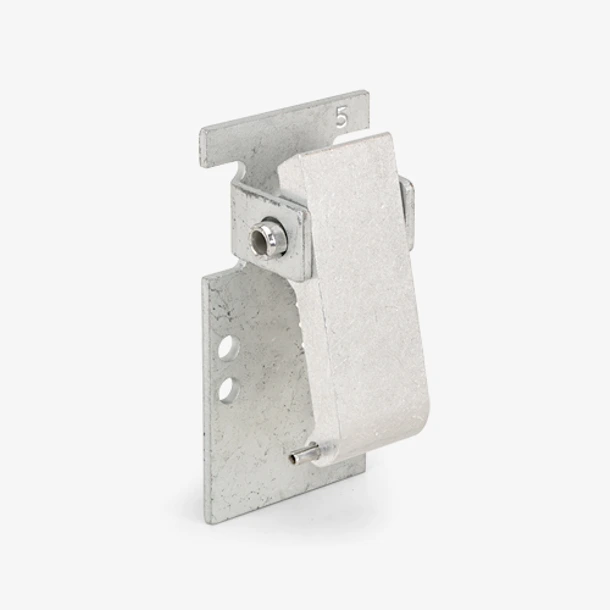

This replacement bracket assembly is a side load take-out system component for commercial aluminum hung windows. Has three ribs and is stamped with the number 5.

Need Aluminum Window Parts

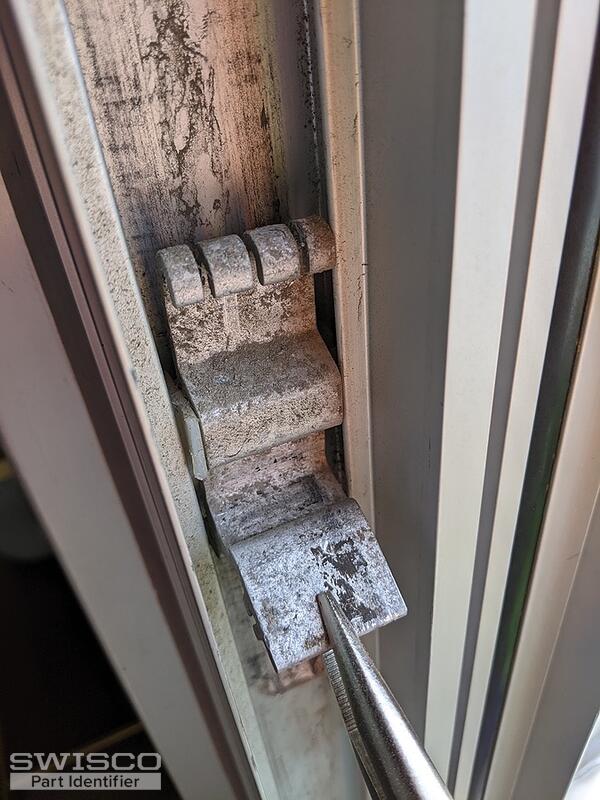

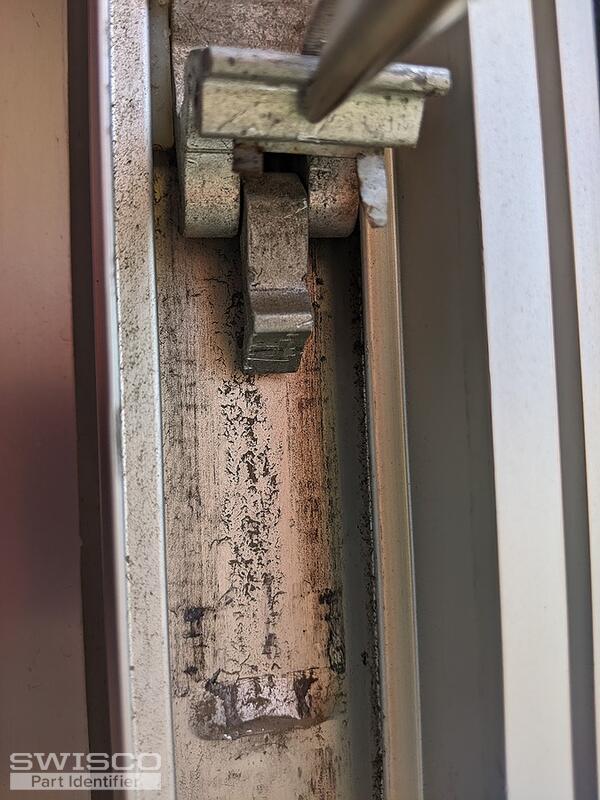

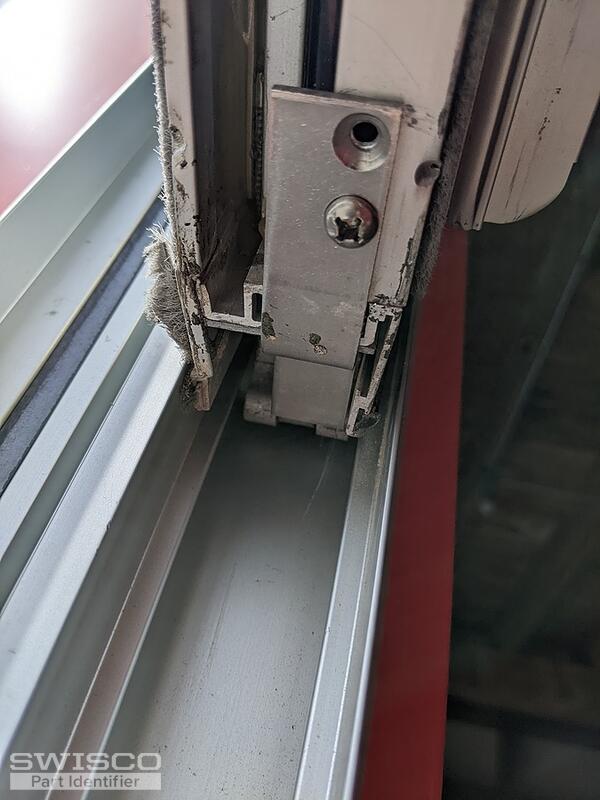

Unfortunately, I can't find any information on these windows. There are no stickers or stamped in information on the window or frame that I can see. The part on the zoomed in photo has part of the U shaped bracket missing. The picture with the part with the screw at the bottom of the window is miss ... (cont.)

hardware for non tilt window

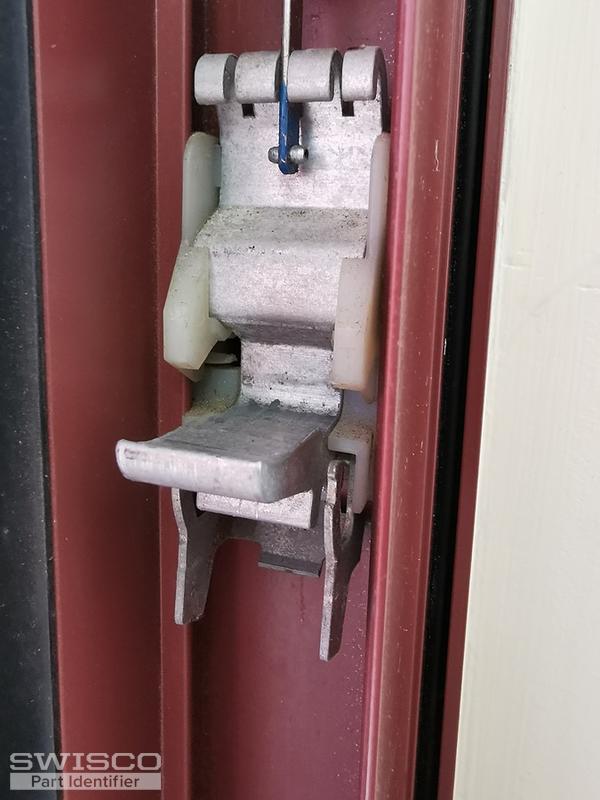

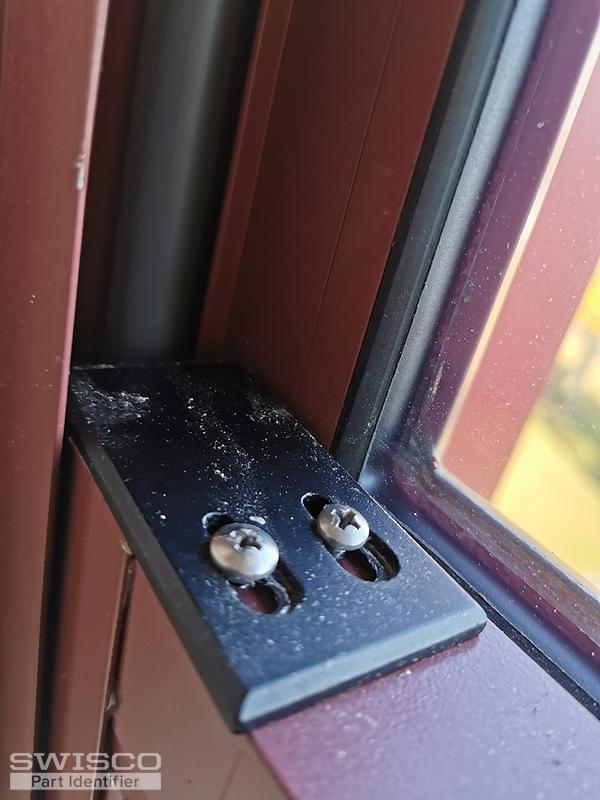

I looking for some part for school window. this is non tilt window .I found two part 17-096 Bracket Assembly and 18-149 top sash guide pair.But I also need other part bracket.The size wide 1 4/8 H 3 6/8.Can you help? Benson

Double Hung Window Parts - Believed to be Traco window brand

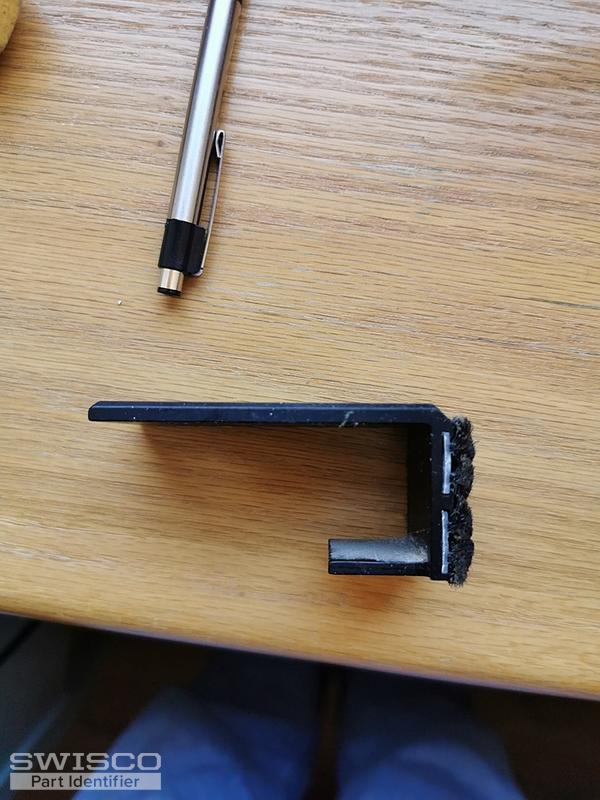

Black part is an Sash Cap - Existing marking reads - H-676 R-H Sliver piece is screwed into the each side of the hash towards the bottom of the side rails. Has no markings. Somehow works with the balance system to keep window up. Can you help? Jim W
